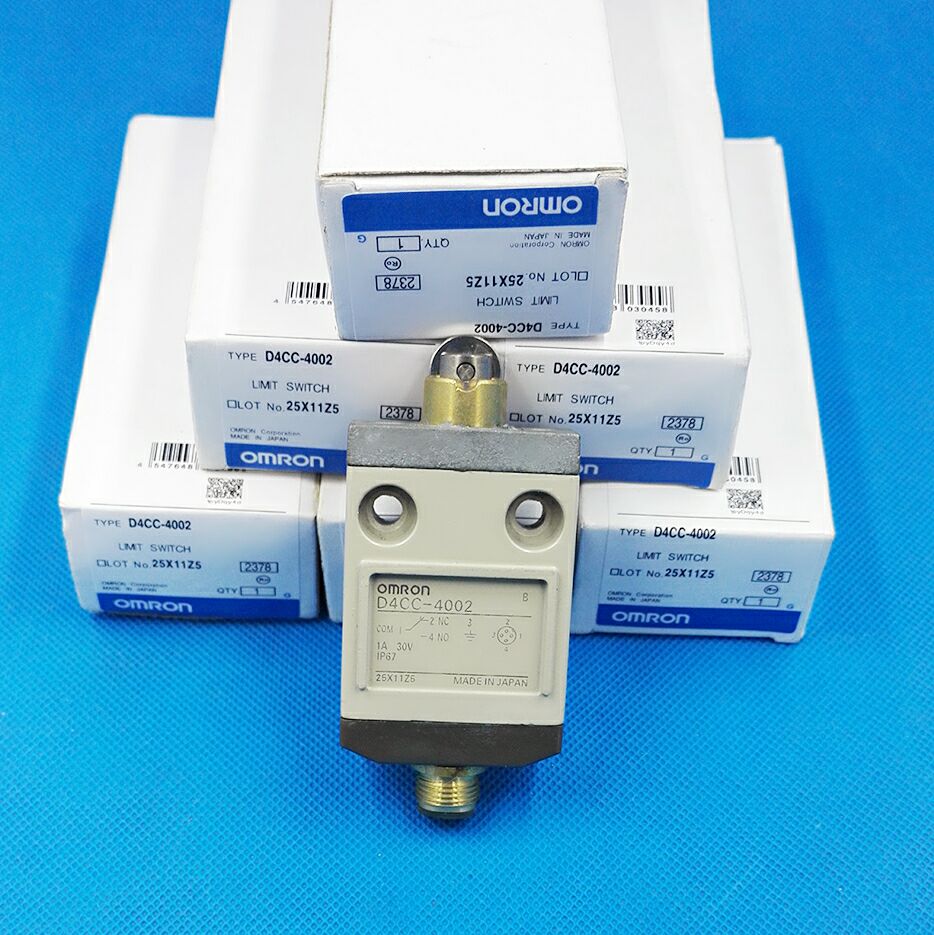

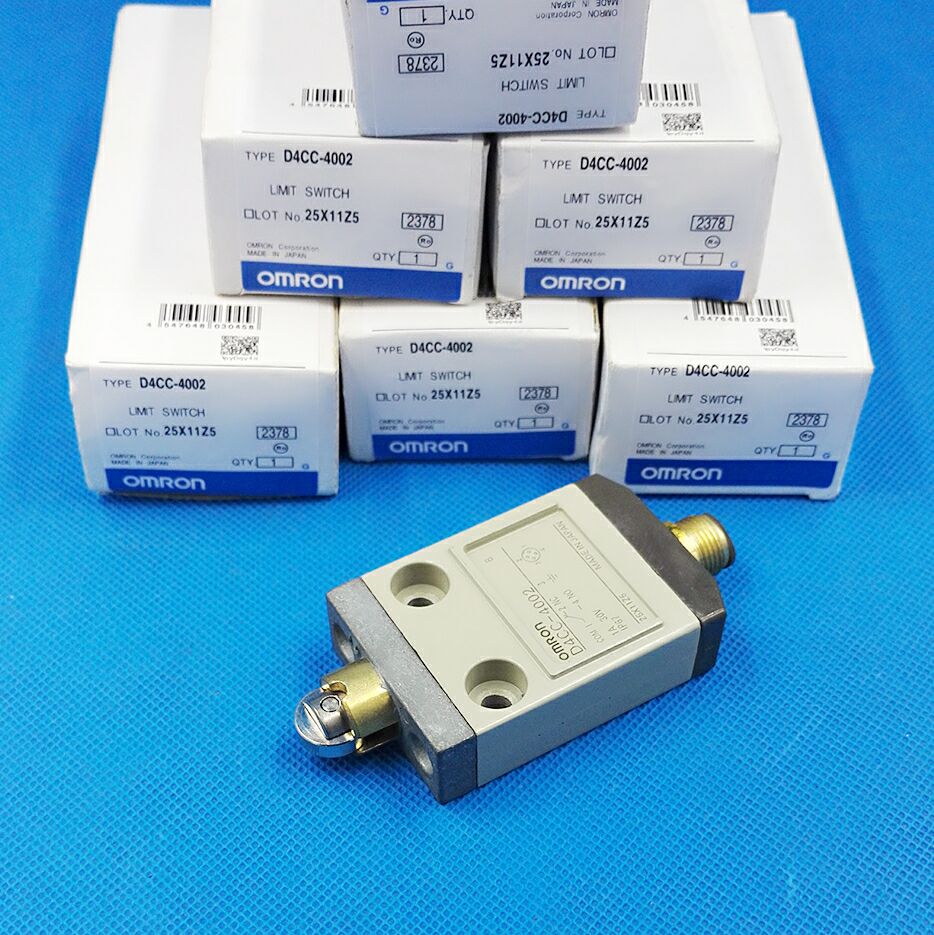

D4CC-4002 Omron limit switch

Category: .
Shape/Structure General-purpose Limit switches
Service life General type
Actuator Roller plunger
12 dia. x 4.4 Stainless steel roller
Electrical ratings 1 A at 30 VDC
Frequency 50/60 Hz
Contact form SPDT
Load General load
Ratings (DC): Non-Inductive load Rated voltage: 30 VDC / Resistive load: 1 A(NC) 1 A(NO) / Lamp load: 1 A(NC) 1 A(NO)
Ratings (DC): Inductive load Rated voltage: 30 VDC / Inductive load: 1 A(NC) 1 A(NO) / Motor load: 1 A(NC) 1 A(NO)
Inrush current NC: 5 A
NO: 2.5 A
Indicator LED (Light when not operating)
Voltage: 30 VDC
Leakage current: Approx. 1 mA
Ambient temperature Operating: -10 to 70 ℃
(no icing)
Ambient humidity Operating: 35 to 95% RH
(no condensation)

Permissible operating frequency (Mechanically) 120 operations / 1 minute max.
Permissible operating frequency (Electrically) 30 operations / 1 minute max.
Contact resistance (Initial value) 100 mΩ max.
Insulation resistance 100 MΩ min.
(at 500 VDC)
Dielectric strength Between each terminal of the same polarities: 1,000 VAC 50/60 Hz for 1 min
Between live-metallic part and ground: 1,500 VAC 50/60 Hz for 1 min
Between each terminal and non-live-metallic part: 1,500 VAC 50/60 Hz for 1 min
Durability (Mechanically) 10,000,000 operations min.
(Temperature, Humidity conditions: 5 to 35 ℃, 40 to 70% RH)
Vibration resistance (Malfunction) 10 to 55 Hz, 1.5-mm double amplitude
Shock resistance (Destruction) 1000 m/s**2 max.
Shock resistance (Malfunction) 500 m/s**2 max.
Degree of protection IP67

Operating Force (OF) Standard value 11.77 N max.
Release Force (RF) Standard value 4.41 N min.
Pre-Travel (PT) Standard value 1.8 mm max.
Over-Travel (OT) Standard value 3 mm min.
Movement Differential (MD) Standard value 0.2 mm max.
Operating Position (OP) Standard value 28.5±1 mm
