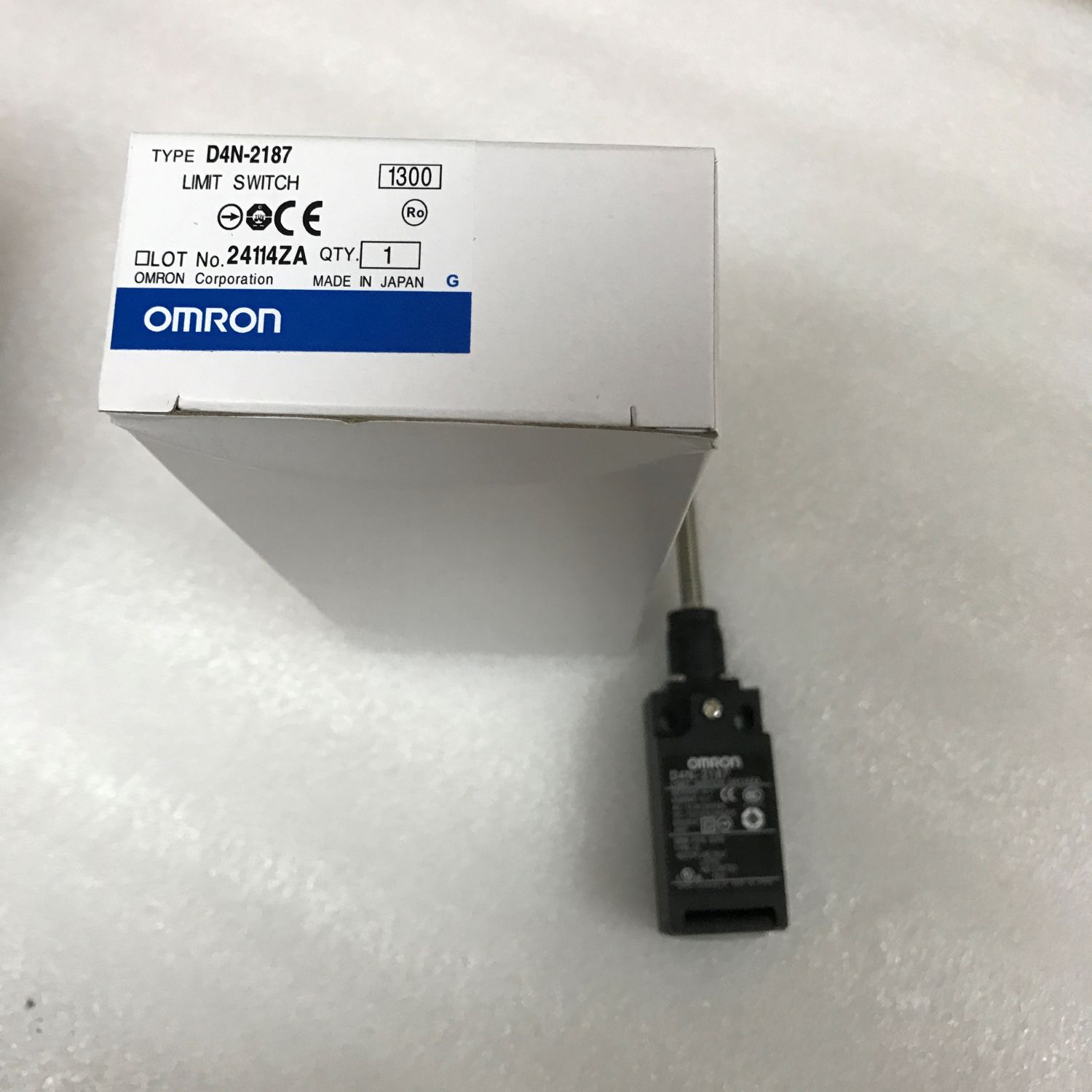

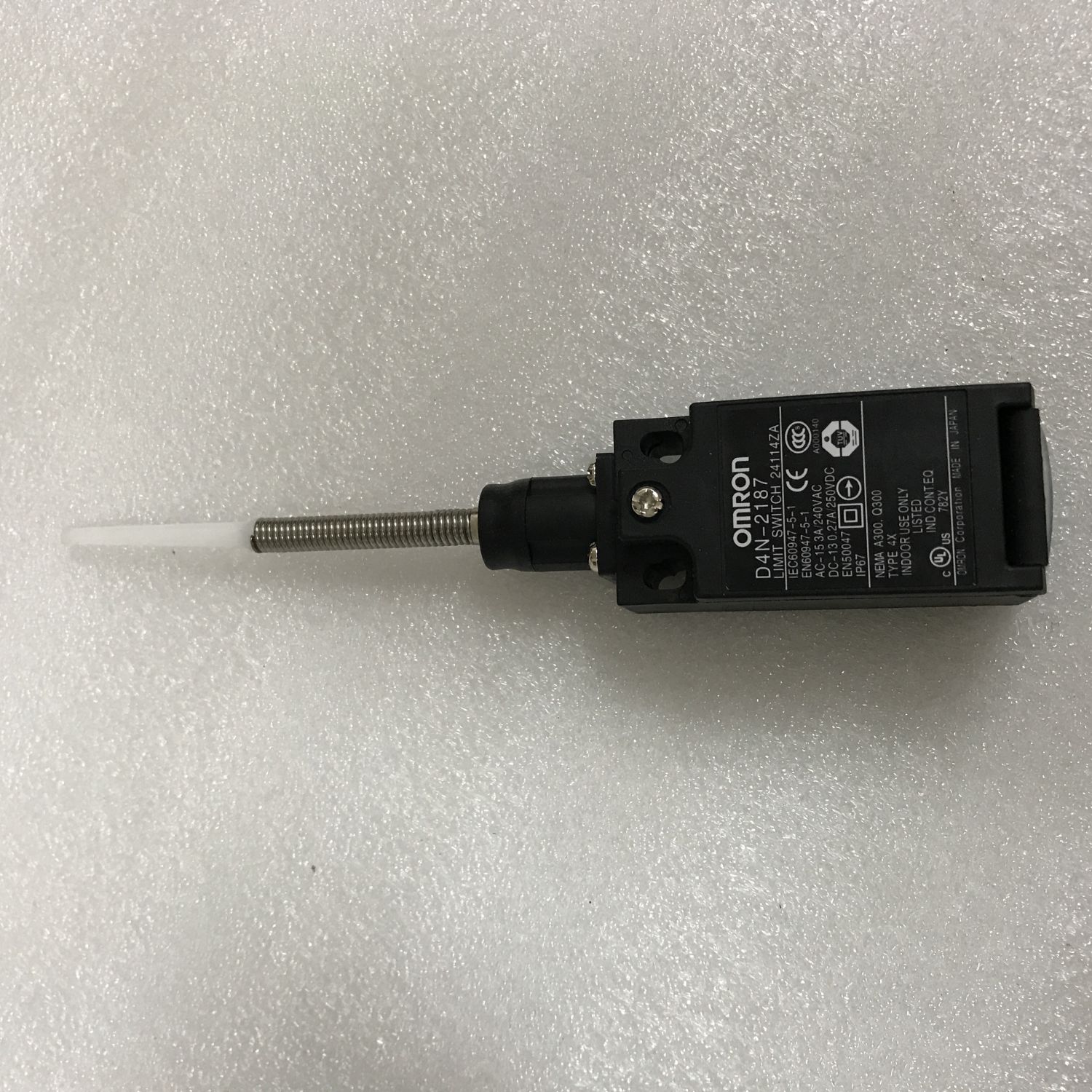

D4N-2187 Omron limit switch

Category: .
Operating mechanism Snap action
ctuator Plastic rod
Resin rod
Frequency 50/60 Hz
Contact form 1NC/1NO
Load General load/Micro load
Conduit G1/2
Number of conduit: 1
Ambient temperature Operating: -30 to 70 ℃ (with no icing)
Ambient humidity 95% RH max.

Permissible operating frequency 30 operations / 1 minute max.
Contact resistance (Initial value) 25 mΩ max.
Insulation resistance 100 MΩ min.
Impulse withstand voltage Between each terminal of the same polarities: 2.5 kV
Between each terminal of the different polarities: 4 kV
Between each terminal and non-live-metallic part: 6 kV
Durability Electrical: 300,000 operations min. (10 A at 250 VAC), 500,000 operations min. (3 A at 250 VAC)
Mechanical: 15,000,000 operations min.
Vibration resistance Malfunction: 10 to 55 Hz, 0.75 mm single amplitude
Shock resistance Destruction: 1000 m/s**2
Malfunction: 300 m/s**2
Pollution degree 3 (EN60947-5-1)
Degree of protection IP67
Classification of protection against electric shock Class II (Double insulation)

Operating Force (OF) Standard value 1.5 N max.
Pre-Travel (PT) Standard value 15 ° max.
