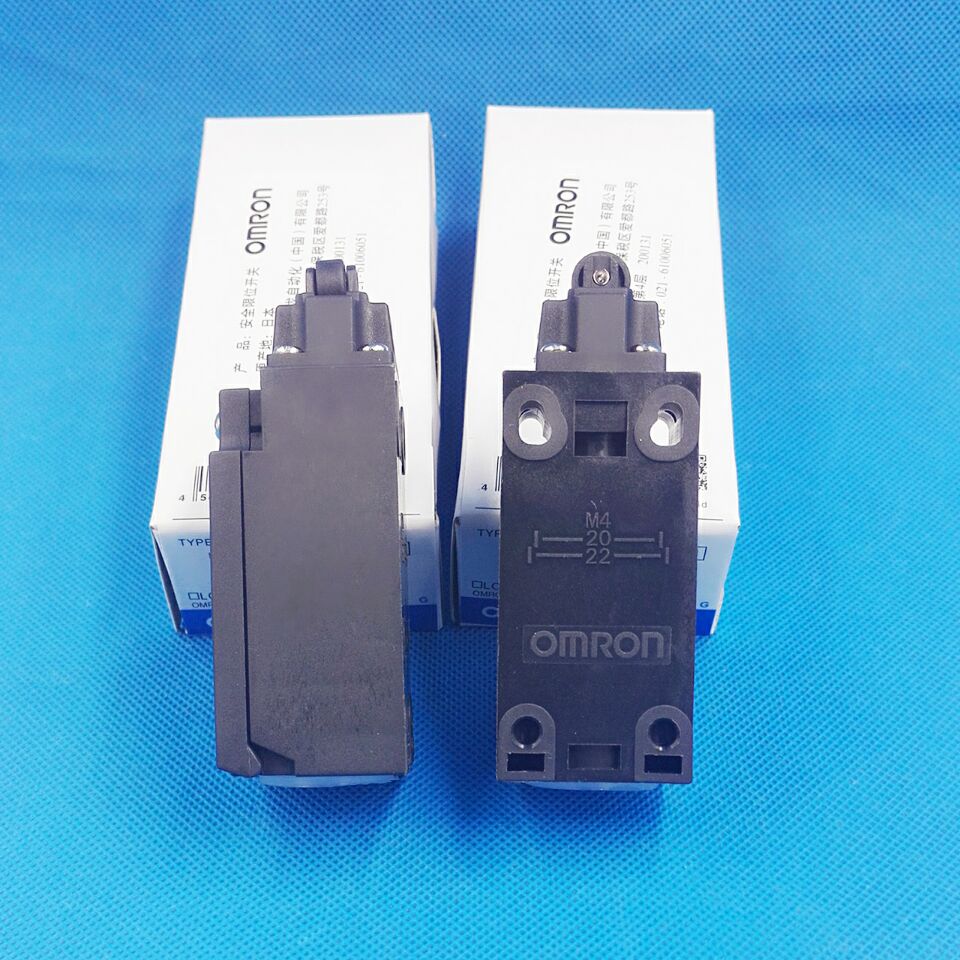

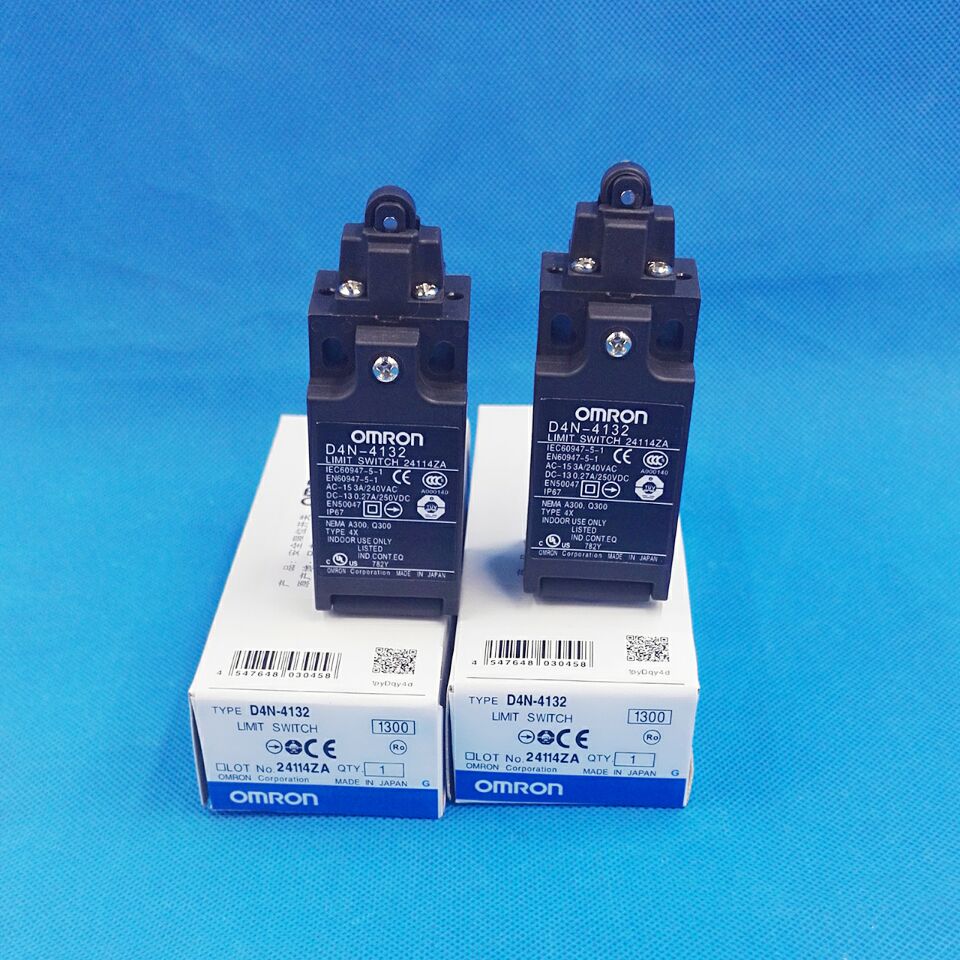

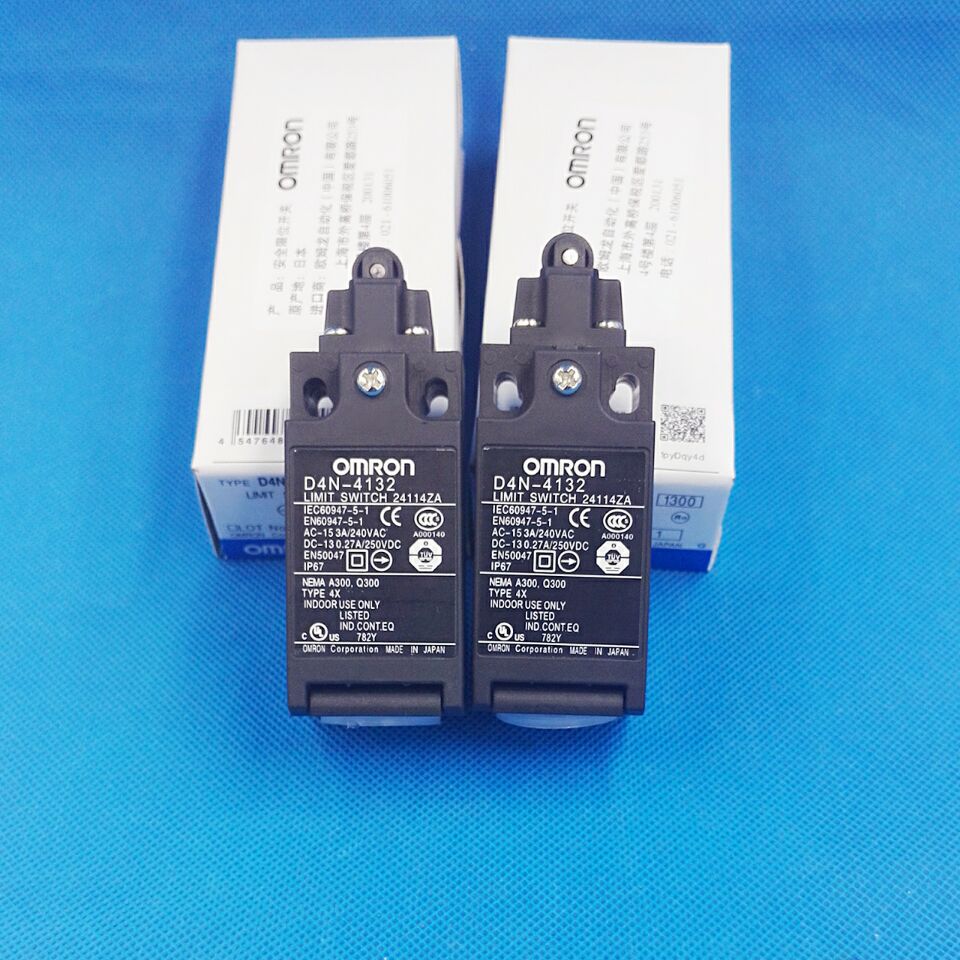

D4N-4132 Omron limit switch

Category: .
Service life General type
Operating mechanism Snap action
Actuator Roller plunger
9.5 dia. x 5 Resin roller
Frequency 50/60 Hz
Contact form 1NC/1NO
Load General load/Micro load
Protective circuit Classification of protection against electric shock: Class II (Double insulation)
Short-circuit protective device: 10 A fuse type gI or gG (IEC60269)
Conduit size M20
Number of conduit 1
Ambient temperature Operating: -30 to 70 ℃
(no icing)
Ambient humidity Operating: 95% RH max.
(no condensation)

Permissible operating frequency (Mechanically) 30 operations / 1 minute max.
Permissible operating frequency (Electrically) 30 operations / 1 minute max.
Contact resistance (Initial value) 25 mΩ max.
Insulation resistance 100 MΩ min.
Impulse withstand voltage Between each terminal of the same polarities: 2.5 kV
Between each terminal of the different polarities: 4 kV
Between each terminal and non-live-metallic part: 6 kV
Durability (Mechanically) 15,000,000 operations min.
(Temperature, Humidity conditions: 5 to 35 ℃, 40 to 70% RH)
Durability (Electrically) 300,000 operations min. (10 A at 250 VAC) 500,000 operations min. (3 A at 250 VAC)
(Temperature, Humidity conditions: 5 to 35 ℃, 40 to 70% RH)
Vibration resistance (Malfunction) 10 to 55 Hz, 0.75-mm single amplitude
Shock resistance (Destruction) 1000 m/s**2
Shock resistance (Malfunction) 300 m/s**2
Pollution degree 3 (EN60947-5-1)
Degree of protection IP67

Operating Force (OF) Standard value 6.5 N max.
Release Force (RF) Standard value 1.5 N min.
Pre-Travel (PT) Standard value 2 mm max.
Over-Travel (OT) Standard value 4 mm min.
Movement Differential (MD) Standard value 1 mm max.
Operating Position (OP) Standard value 28.6±0.8 mm
Total Travel (TT) Reference value 6 mm
