E2E2-X10MC1E2E2-X10MC1

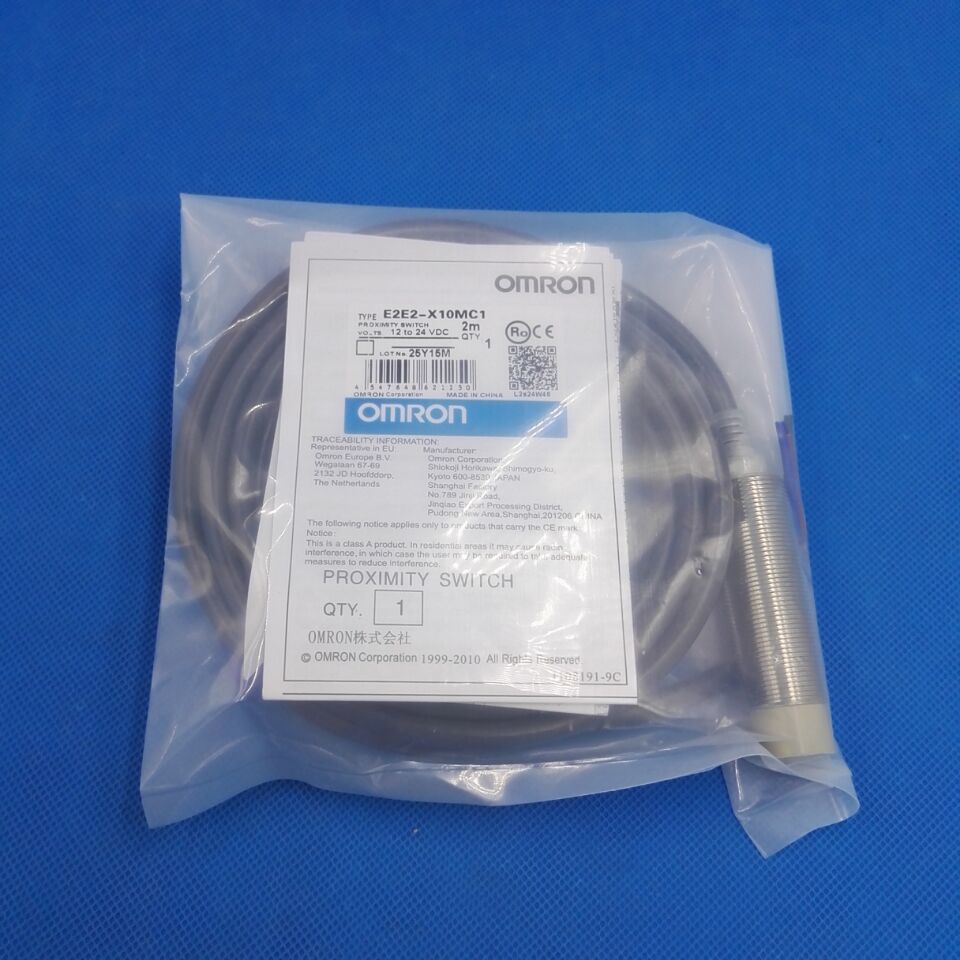

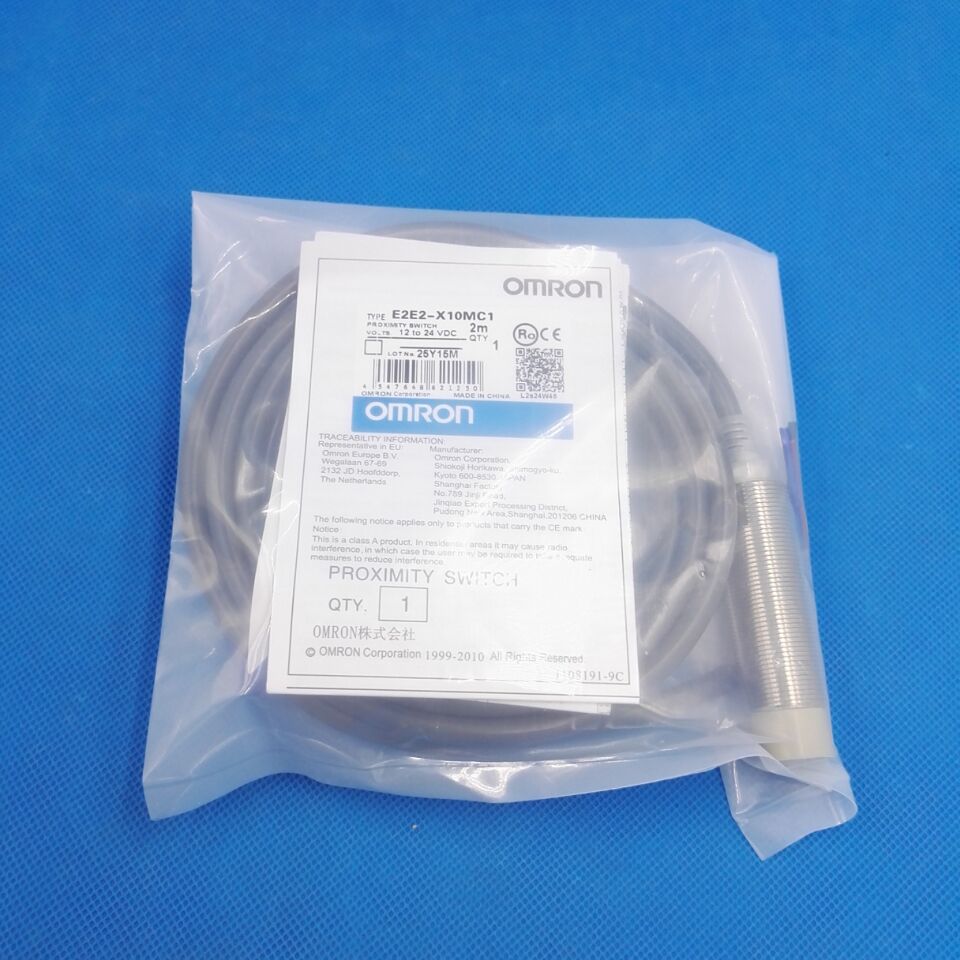

E2E2-X10MC1 omron proximity switch

Category: .
Sensing head size M18
Type Cylinder type
Unshielded
Sensing distance 10 mm ±10%
Setting distance 0 to 8 mm
Differential distance 10% max. of sensing distance
Sensing object Ferrous metal (Sensitivity lowers with non-ferrous metals.)
Standard sensing object Iron 30 x 30 x 1 mm
Power source DC Three-wires models
Power supply voltage 12 to 24 VDC (ripple(p-p) 10% max.)
Operating voltage range 10 to 30 VDC
Current consumption 13 mA max.
Control output (Output type) NPN open collector
Control output (Switching capacity) 200 mA (30 VDC max.)
Control output (Residual voltage) 2 V (Load current 200 mA with cable length of 2 m)
Indicator Operation indicator (red)
Operation mode NO
Protective circuit Output short-cut protection, Power supply reverse polarity protection, Surge suppressor
Ambient temperature Operating: -40 to 85 ℃
Storage: -40 to 85 ℃
(no icing)
Ambient humidity Operating: 35 to 95%
Storage: 35 to 95%
(no condensation)
Temperature influence ±10% max. of sensing distance in temperature range of -25 to +70 ℃
±15% max. of sensing distance in temperature range of -40 to +85 ℃
(As the basis for sensing distance of 23 ℃)
Voltage influence ±1% max. of sensing distance in rated voltage range ±15%.
(As the basis for sensing distance at standard power voltage)
Insulation resistance Between charged parts and the case: 50 MΩ min. at 500 VDC
Dielectric strength Between charged parts and the case: 1,000 VAC 50/60 Hz for 1 min
Vibration resistance 10 to 55 Hz, 1.5-mm double amplitude each in X, Y, and Z directions for 2 h
Shock resistance 1000 m/s**2 for 10 times each in X, Y, and Z directions
Degree of protection IEC: IP67
Company standard: Oil-proof
Connection method Pre-wired models
(Cable length: 2 m)
Weight (Packed state) approx. 160 g
Material Case: Brass
Sensing surface: Polybutylene terephthalate (PBT)
Clamping nuts: Brass nickel plating
Toothed washer: Iron zinc plating
Accessories Instruction manual
