E2K-X15ME1

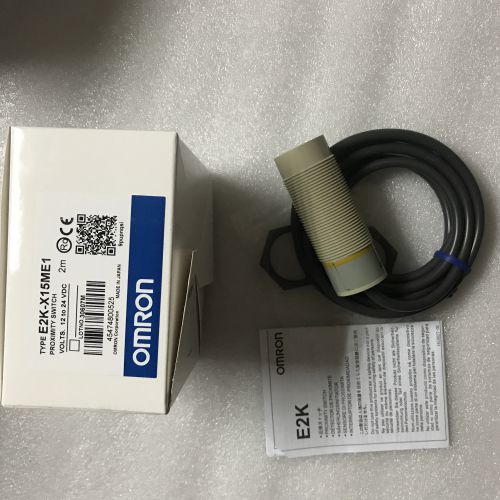

E2K-X15ME1 Omron proximity switch

Category: .

Sensing head size M30
Type Cylinder type (with screw)、Capacitive type、Unshielded
Power source DC Three-wires models
Sensing distance 15 mm ±10%
Setting distance 0 to 10 mm
Differential distance 4% to 20% of sensing distance
Sensing object Conductor and dielectrics
Standard sensing object With grounded metal 50 x 50 x 1 mm
Response frequency 100 Hz
Power supply voltage 12 to 24 VDC
Operating voltage range 10 to 30 VDC
Current consumption 15 mA max.
Control output (Output type) NPN
Control output (Switching capacity) 200 mA max.
Control output (Residual voltage) 2 V max. (Load current 200 mA with cable length of 2 m)
Indicator Detection indicator (red)
Operation mode NO
Protective circuit Output short-cut protection
Output reverse polarity protection
Reverse polarity protection
Surge suppressor
Ambient temperature (Operating) -10 to 55℃
Ambient temperature (Storage) -10 to 55℃
Ambient humidity (Operating) 35 to 95%
Ambient humidity (Storage) 35 to 95%
Temperature influence ±20% max. of sensing distance at 23 ℃ in the temperature range of -10 to 55 ℃
Voltage influence ±2% max. of sensing distance at rated voltage in the rated voltage ±20% range
Insulation resistance Between charged parts and the case: 5 MΩ min. at 500 VDC
Dielectric strength Between charged parts and the case: 1,000 VAC 50/60 Hz 1 min
Vibration resistance Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h
Shock resistance Destruction: 500 m/s**23 times each in X, Y and Z directions
Degree of protection IEC: IP66
Company standard: Oil-proof
Connection method Pre-wired models (2 m)
Weight Package: Approx. 205 g
Material Case: Heat-resistant ABS resin
Sensing surface: Heat-resistant ABS resin
Clamping nuts: Polyacetal
Accessories Instruction manual
