EH-305

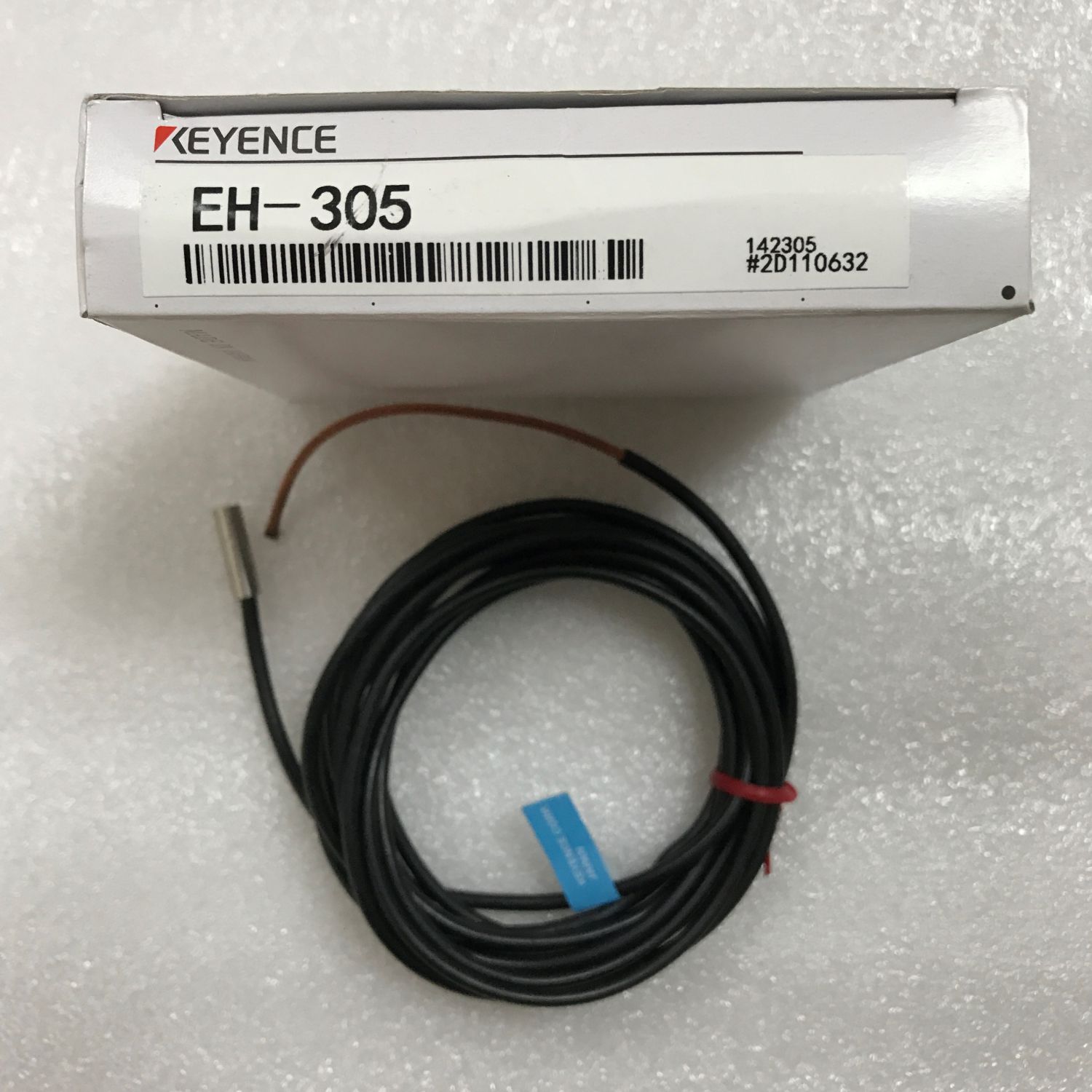

EH-305 Keyence Proximity Sensor

Category: .
Model EH-305
Type Standard , Shielded , Cylindrical
Detectable object Ferrous metals (see Characteristics for nonferrous metals)
Standard target (iron, t=1 mm 0.04″) 5 x 5 mm0.02″
Stable detecting range 0 to 1 mm0.04″
Maximum detecting distance 3 mm0.12″
Hysteresis 0.05 mm0.002″
Repeatability 0.002 mm0.00008″
Temperature characteristics ±10% max. of detecting distance at 23°C 73.4°F, within -10 to +60°C 14 to 140°F
Environmental resistance Enclosure rating IP67
Ambient temperature -10 to +60 °C 14 to 140 °F (No freezing)
Relative humidity 35 to 85 % RH (No condensation)
Weight Approx. 45 g (including nuts and 3-m 9.8′ cable)
