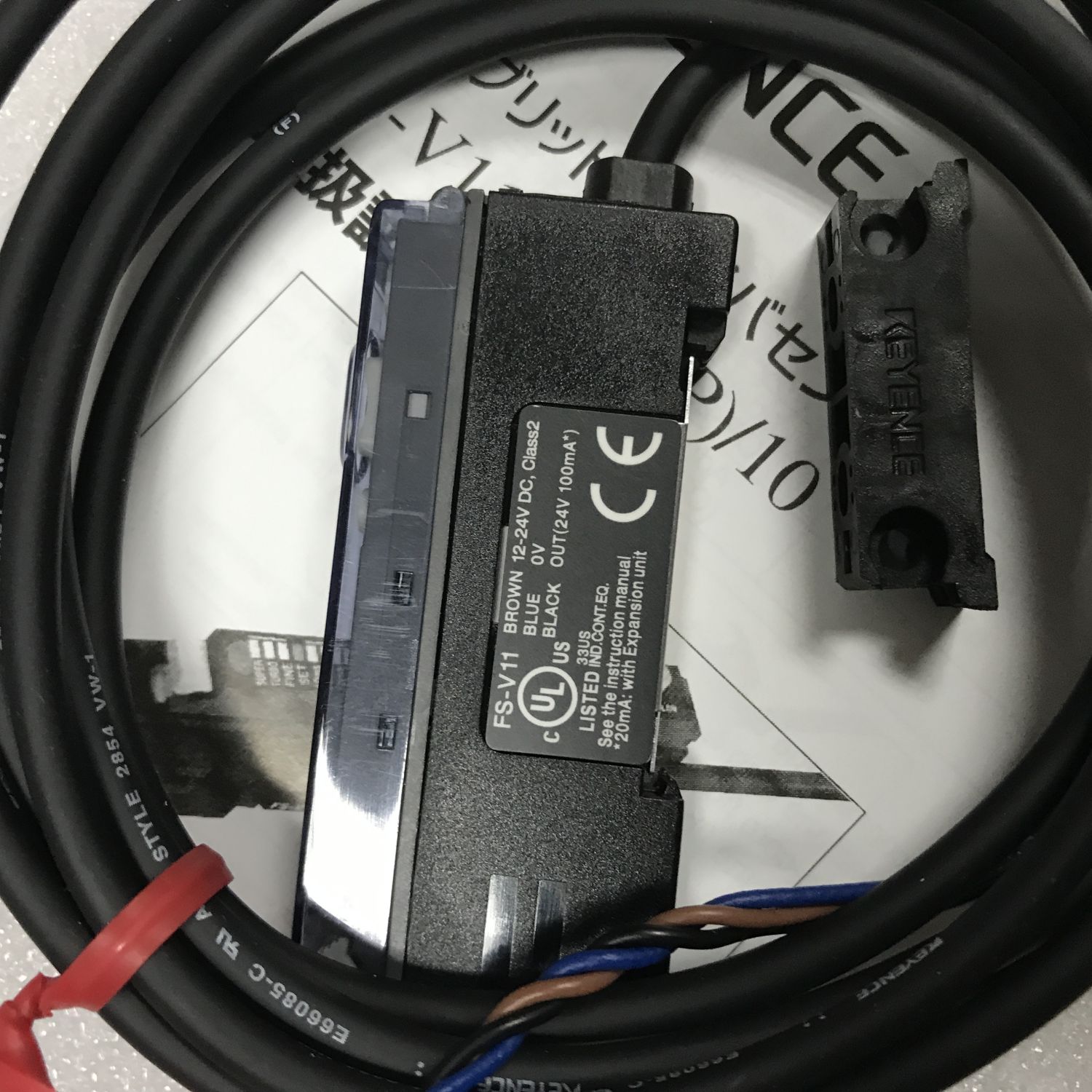

FS-V11 keyence Fiber Amplifier

Category: .
Model FS-V11
Type Main unit
Output NPN
Light source Red LED
Response time 250 µs (FINE) /500 µs (TURBO) /1 ms (SUPER TURBO)
Operation mode LIGHT-ON/DARK-ON (switch-selectable)
Indicator lamp Display indicator: Red LED
Digital LED monitor: Seven segments, four digits, red LED
Bar LED monitor: One orange LED and six green LEDs
Timer function ON-delay: 40 ms /OFF-delay: 10 ms /Timer OFF (switch-selectable)
Control output NPN open-collector 100 mA max. (24 VDC max.), Residual voltage: 1 V max.
Protection circuit Reversed polarity protection, over-current protection, surge absorber
Unit expansion Up to 16 expansion units can be connected (a total of 17 units).*1
Mutual interference
suppression
FINE : 4, TURBO/SUPER: 8
Rating Power voltage 12 to 24 VDC ±10 %, Ripple (P-P) 10 % or less*2
Current consumption 50 mA or less
Environmental resistance Ambient light Incandescent lamp: 10,000 lux max., Sunlight: 20,000 lux max.
Ambient temperature -10 to +55 °C 14 to 131 °F (No freezing)
Relative humidity 35 to 85 % RH (No condensation)
Vibration resistance 10 to 55 Hz, Double amplitude 1.5 mm 0.06″, 2 hours in each of the X, Y, and Z directions
Shock resistance 500 m/s2, 3 times in each of the X, Y, and Z directions
Case material Polycarbonate
Weight Approx. 80 g
*1 If more than one unit is used together, the ambient temperature varies with the conditions below. Mount the units on the DIN rail with mounting brackets and check that the output current is 20 mA or less.
3 to 10 Units: -10 to 50°C 14 to 122°F, 11 to 16 Units: -10 to 45°C 14 to 113°F
*2 Neither the FS-V12 nor the FS-V10 can be used as a standalone unit.
