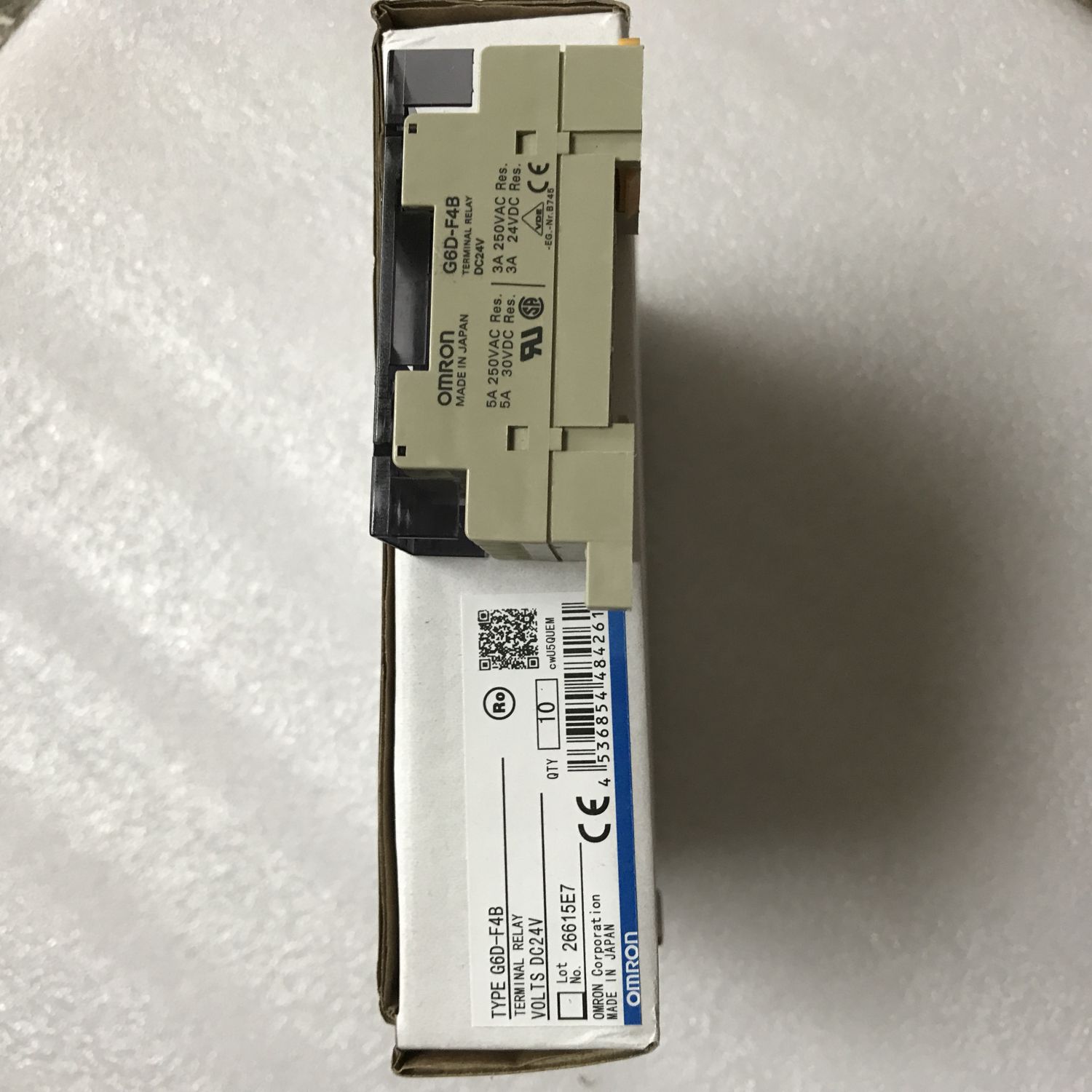

G6D-F4B omron relay
| manufacture: | Omron Electronic Components |
| part number： | G6D-F4B-DC24 |
| RoHS： | Unknown |
| Type: | Space Saving Terminal Relay |
| DC Coil Voltage: | 24 V |
| Maximum AC Voltage Rating: | 250 V |
| Family: | G6D-F4B |
| Relay Construction: | Non-Latching |
| Contact Material: | N/A |
| Maximum DC Voltage Rating: | 30 V |
| Number of Terminals: | N/A |
| AC Coil Voltage: | N/A |
| Coil Current: | 8.2 mA |
| Packaging: | N/A |
| Seal: | Unsealed |
| Termination Style: | Screw Terminal |
| Coil Resistance: | 4 KOhm |
| Contact Arrangement: | SPST-NO |
| Maximum Current Rating: | 5 A |
| Pin_Count: | N/A |
| Maximum Pick-Up Voltage: | 19.2 VDC |
| Product Weight: | 65 g |
| Minimum Dropout Voltage: | 1 VDC |
| Mounting: | DIN Rail |
| Contact Form: | 1 Form A |
| Maximum Power Rating: | 150,1.25 W|kVA |
| Operating Temperature: | -25 to 55 °C |
| Dimension: | 85.4 x 31 x 35 mm |
| Package Type: | N/A |
| Maximum AC Switching Voltage: | 250 V |
| Operate Time: | 10 ms |
| Coil Suppression Diode: | Yes |
| Push to Test Button: | No |
| Maximum DC Switching Voltage: | 30 V |
| Led Indicator: | Yes |
