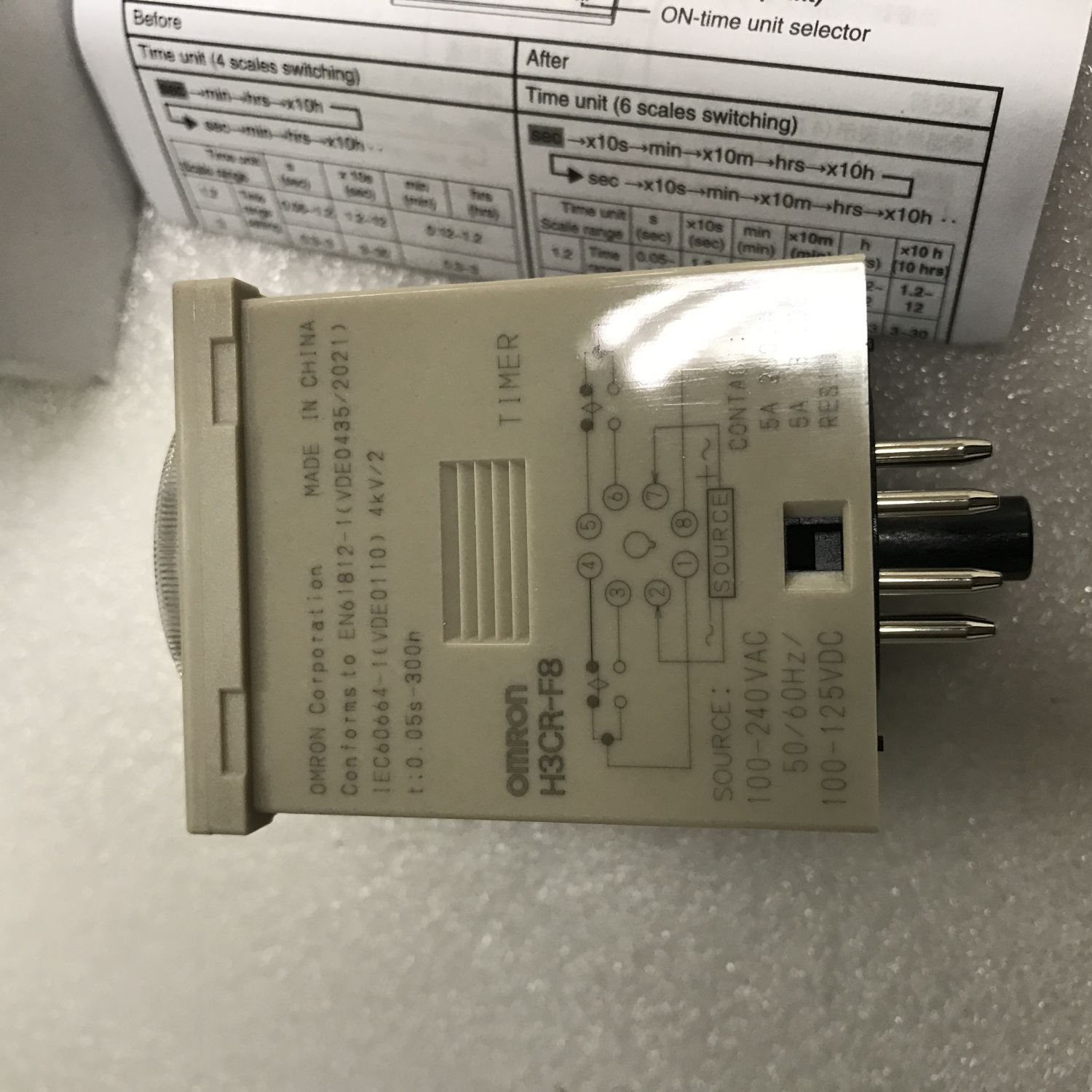

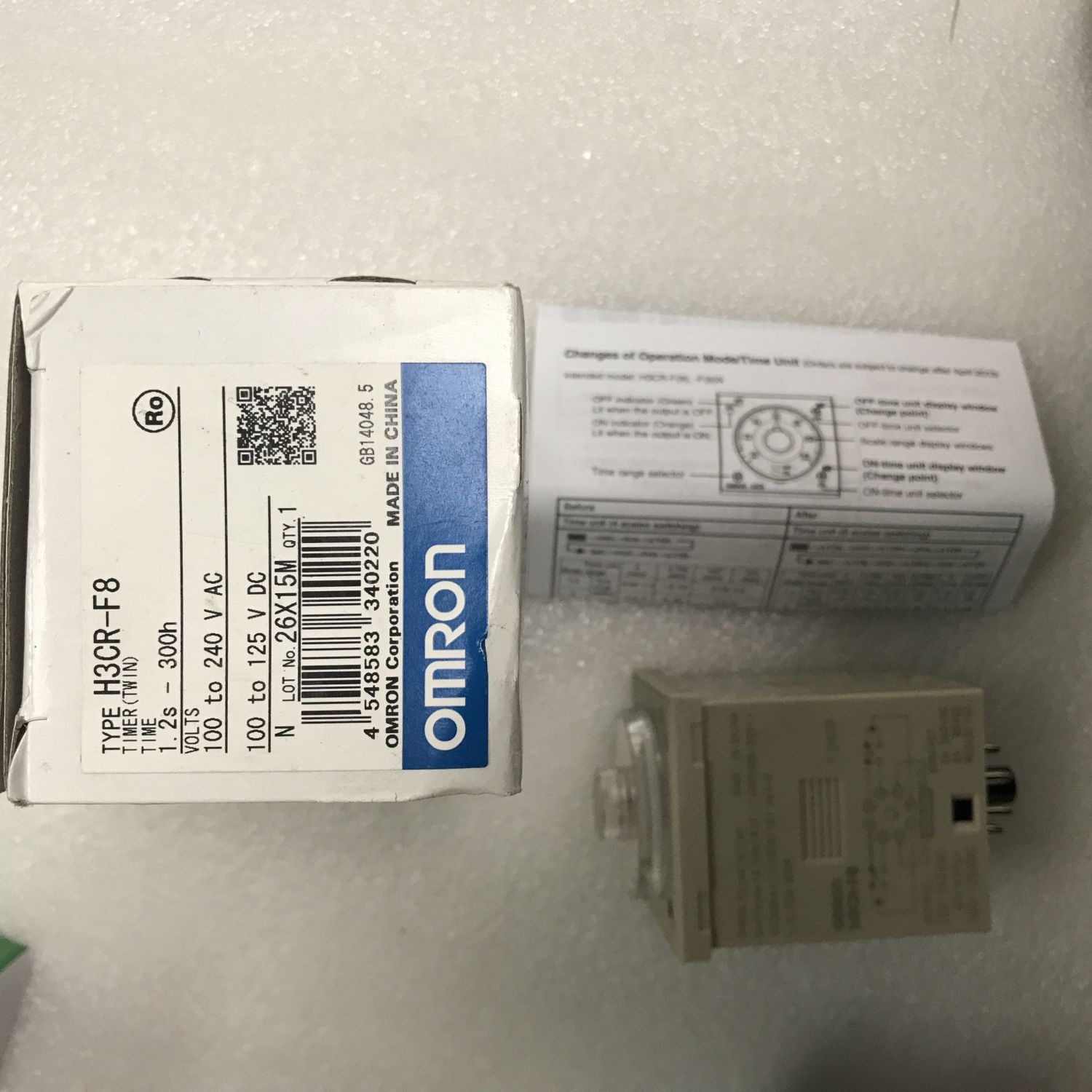

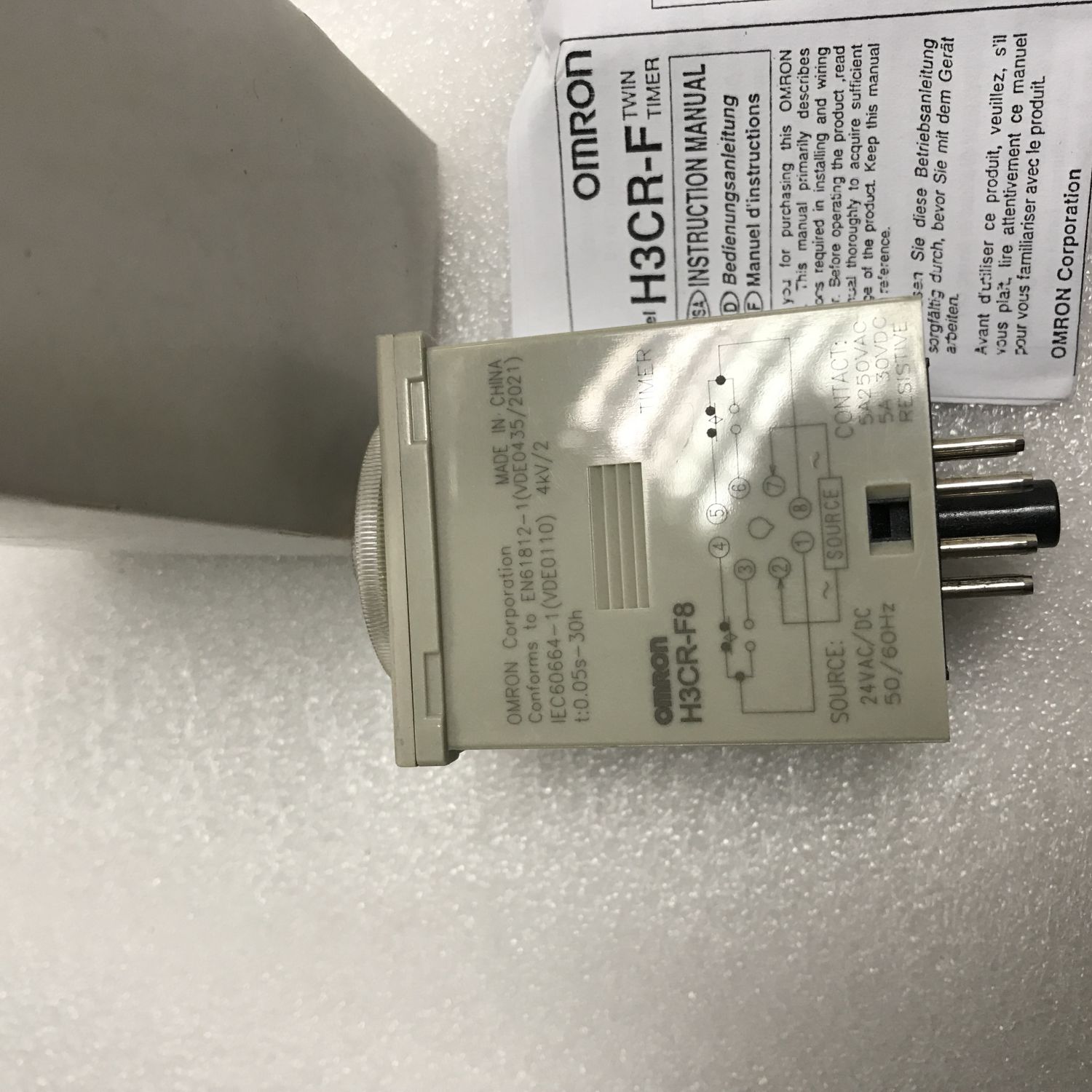

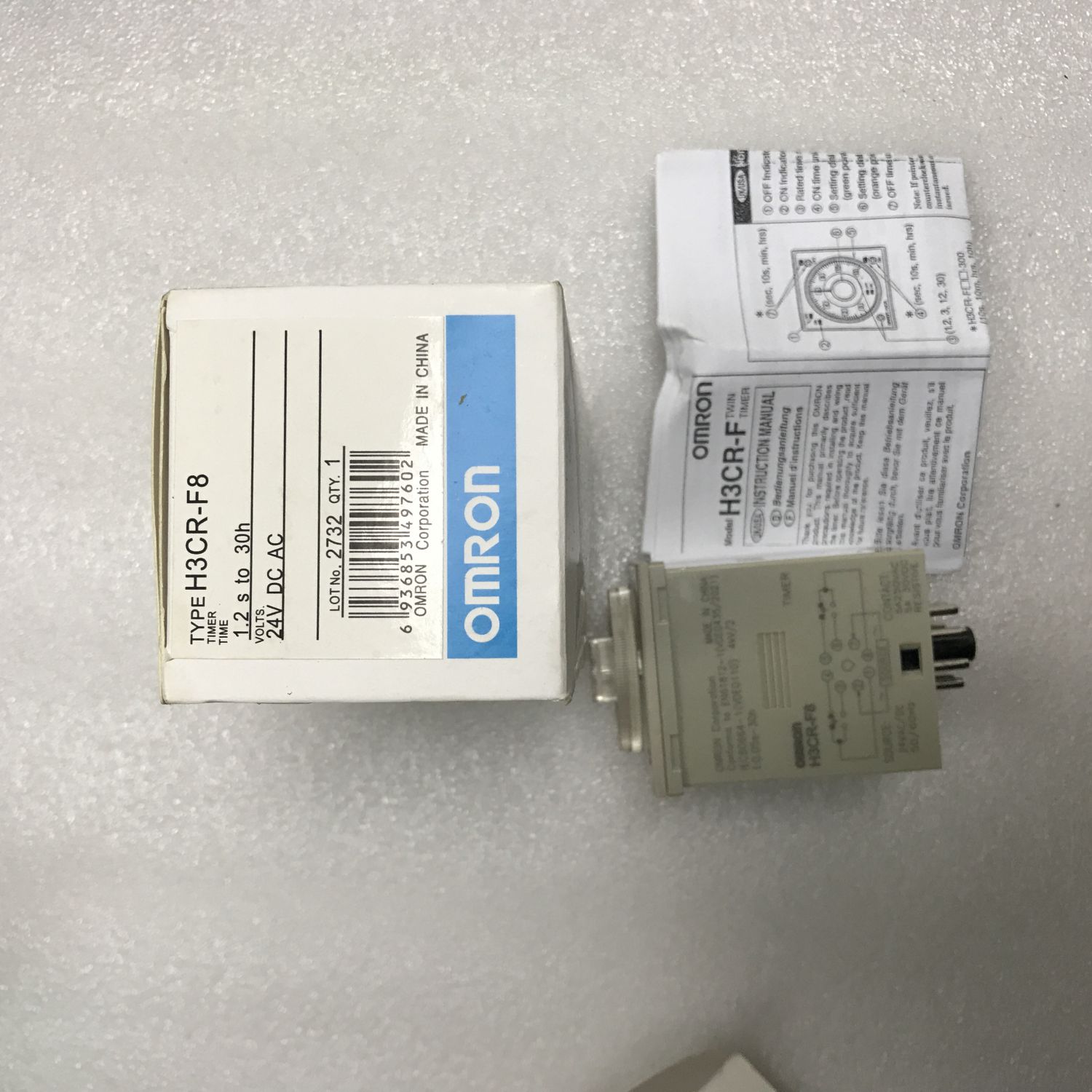

H3CR-F8 Omron Timer

Category: .



Type

Timer

Output Type

Double Pole Double Throw (DPDT)

Time Range

1.2 s, 300 h

Dependencies

P2CF-08, P2CF-08-E, PF085A, P3G-08, PL08, PL08-Q, PLE08-0

Accessories

Y92F-30, Y92F-73, Y92F-74, Y92A-48B, Y92H-8, Y92H-7

Display

Light Emitting Diode (LED) Indicators

Setting Method

Analog Dial

Reset Method

Time Limit or Self Reset

ON-Delay Mode

No

Repeat Cycle OFF Start Mode

No

Repeat Cycle ON Start Mode

No

Repeat Cycle, Independent ON/OFF Times

No

Signal ON/OFF Delay ON Start Mode

No

Signal ON/OFF Delay OFF Start Mode

No

Signal OFF Delay Mode

No

Interval Mode

No

One-Shot Output Mode

No

Power OFF Delay

No

Power ON Delay

No

ON/OFF Adjustable Duty Cycle

No

Twin Timer

Yes

Stopwatch

No

Cumulative

No

On-Delay with Instantaneous Output

No

Star-Delta

No

Connection Type

8-Pin Socket

Alternating Current (AC) Supply Voltage

100 to 240 V

Direct Current (DC) Supply Voltage

100 to 125 V

Height

45 mm

Width

45 mm

Depth

82 mm

Number of Operating Modes

1
