H5CN-YDN

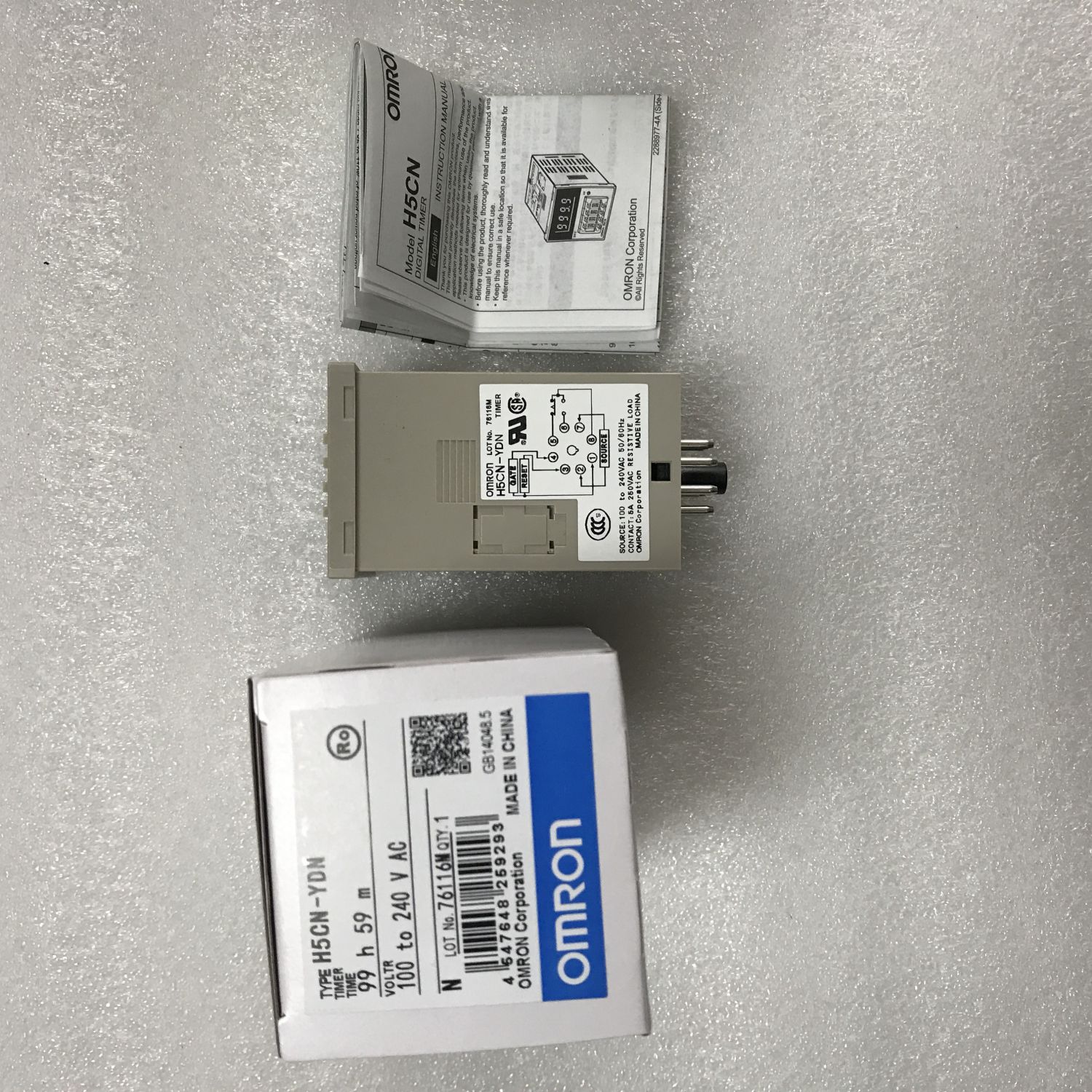

H5CN-YDN AC100-240 Omron Timer

Category: .
Rated supply voltage 100 to 240 VAC (50/60 Hz)
Operating voltage range 85 to 110% of rated supply voltage
Power consumption Approx. 12 VA (at 240 VAC)/Approx. 2.5 W (at 240 VAC)
Time ranges(Number of ranges) 1
Time ranges 1 min to 99 h 59 min
Input method Contact: Contact open and short-circuit input
No-contact: Open-collector transistor ON/OFF input
Output modes N: Power ON delay
Control output (Contact output) SPDT
Resistive load: 3 A at 250 VAC (cosφ=1)
Minimum applicable load: 10 mA at 5 VDC (failure level: P Reference value)
Reset system Power reset/External reset
Power reset Minimum power-opening time: 0.5 s
External reset and Gate Minimum input signal width: 0.02 s
Residual voltage: 2 V max.
Timer mode DOWN display timer (decrements form the set time to 0)
Display method 7-segment LED 4 digit
Character height 10 mm
Ambient temperature (Operating) -10 to 55℃ (with no icing)
Ambient temperature (Storage) -25 to 65℃ (with no icing)
Ambient humidity (Operating) 35 to 85%
Accuracy of operating time Power-ON start: ±0.01% ±0.05 s max. (The values are based on the set value.)
Reset start: ±0.005% ±0.03 s max. (The values are based on the set value.)
Setting error Power-ON start: ±0.01% ±0.05 s max. (The values are based on the set value.)
Reset start: ±0.005% ±0.03 s max. (The values are based on the set value.)
Influence of voltage Power-ON start: ±0.01% ±0.05 s max. (The values are based on the set value.)
Reset start: ±0.005% ±0.03 s max. (The values are based on the set value.)
Influence of temperature Power-ON start: ±0.01% ±0.05 s max. (The values are based on the set value.)
Reset start: ±0.005% ±0.03 s max. (The values are based on the set value.)
Insulation resistance Between current carrying terminals and exposed non-current carrying metal parts: 100 MΩ min. (at 500 VDC)
Between operating power circuit and control output circuit: 100 MΩ min. (at 500 VDC)
Dielectric strength Between current carrying terminals and exposed non-current carrying metal parts: 2000 VAC 50/60 Hz 1 min
Between operating power circuit and control output circuit: 2000 VAC 50/60 Hz 1 min
Impulse withstand voltage Between operating power supply terminals: 6 kV
Between current carrying terminals and exposed non-current carrying metal parts: 6 kV
Noise immunity Between operating power supply terminals: ±2 kV
Square-wave noise by noise simulator
Static immunity Mulfunction: 8 kV
Vibration resistance Destruction: 10 to 55 Hz, 0.75 mm single amplitude each in 3 directions for 2 h
Malfunction: 10 to 55 Hz, 0.5 mm single amplitude each in 3 directions for 10 min
Shock resistance Destruction: 300 m/s**2, 3 times each in 6 directions
Malfunction: 100 m/s**2, 3 times each in 6 directions
Life expectancy Electrical: 100,000 operations min. (3 A at 250 VAC resistive load)
Mechanical: 10 million operations min.
Mounting method Flush mounting / Surface mounting
External connection method 8-pin round socket
Case color Light gray (Munsell 5Y7/1)
Applicable socket P2CF-08, P2CF-08-E, P3G-08
Accessory (sold separately) Soft Cover: Y92A-48D
Hard Cover: Y92A-48B
Flush mounting adapter: Y92F-30
Weight Approx. 110 g
