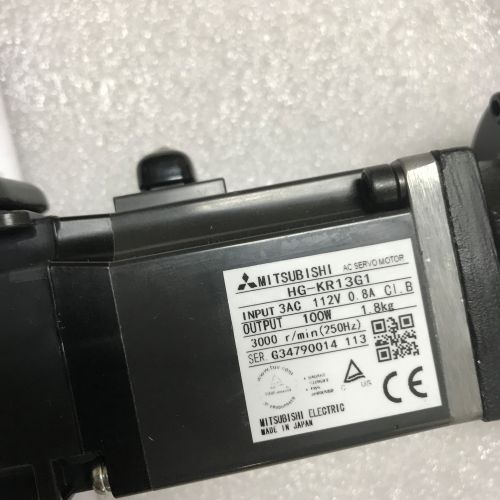

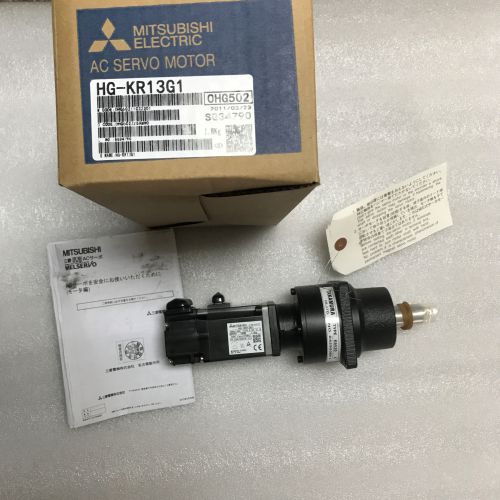

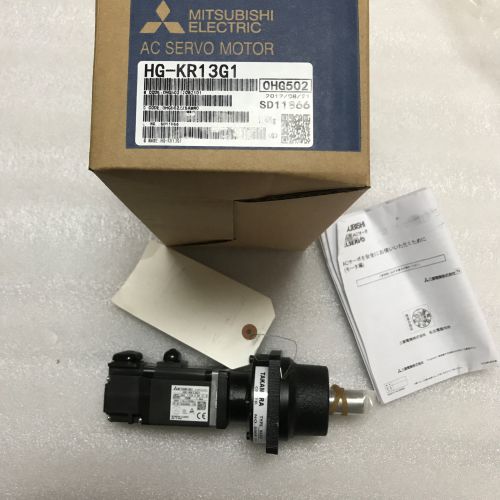

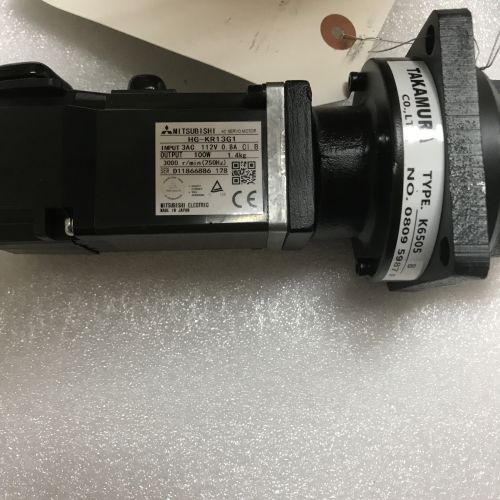

HG-KR13G1 Mitsubishi AC servo motor

Category: .
Product series / family name MELSERVO J4 series
Main function AC Servo Motor
Sub-range name HG-KR
Rated active power (kW) 100W / 0.1kW
Compliant with standard(s) CE
cRUus
TUV Rheinland
EAC
EN60034-1
EN61800-3 Category C3
EN50581
UL1004-1
UL1004-6
CSA C22.2 No.100
Mounting mode Flange mounting (gearbox output)
Gear ratio (1/12)
Backlash 60 arcminutes maximum
Moment of inertia 0.0000137 kg.m²
Net Height (mm) 90 mm
Net Width (mm) 90 mm
Net Depth (mm) 144.9 mm
Net weight 2 kg
Degree of protection IP44
Technology used in component Absolute/incremental encoder output

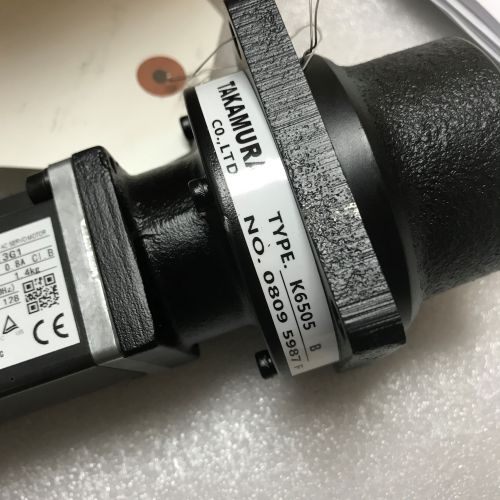

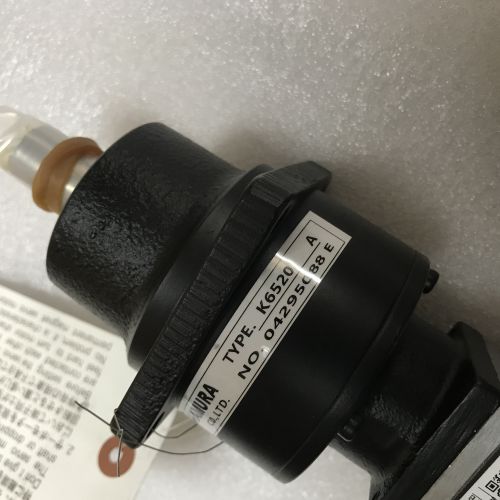

Gear reducer
Resolution 22-bit
4194304pulses/revolution
Functions Low-inertia rotary AC geared servo motor
Efficiency 40-85%
Rotational speed 4500 rpm
Primary brand Mitsubishi Electric
