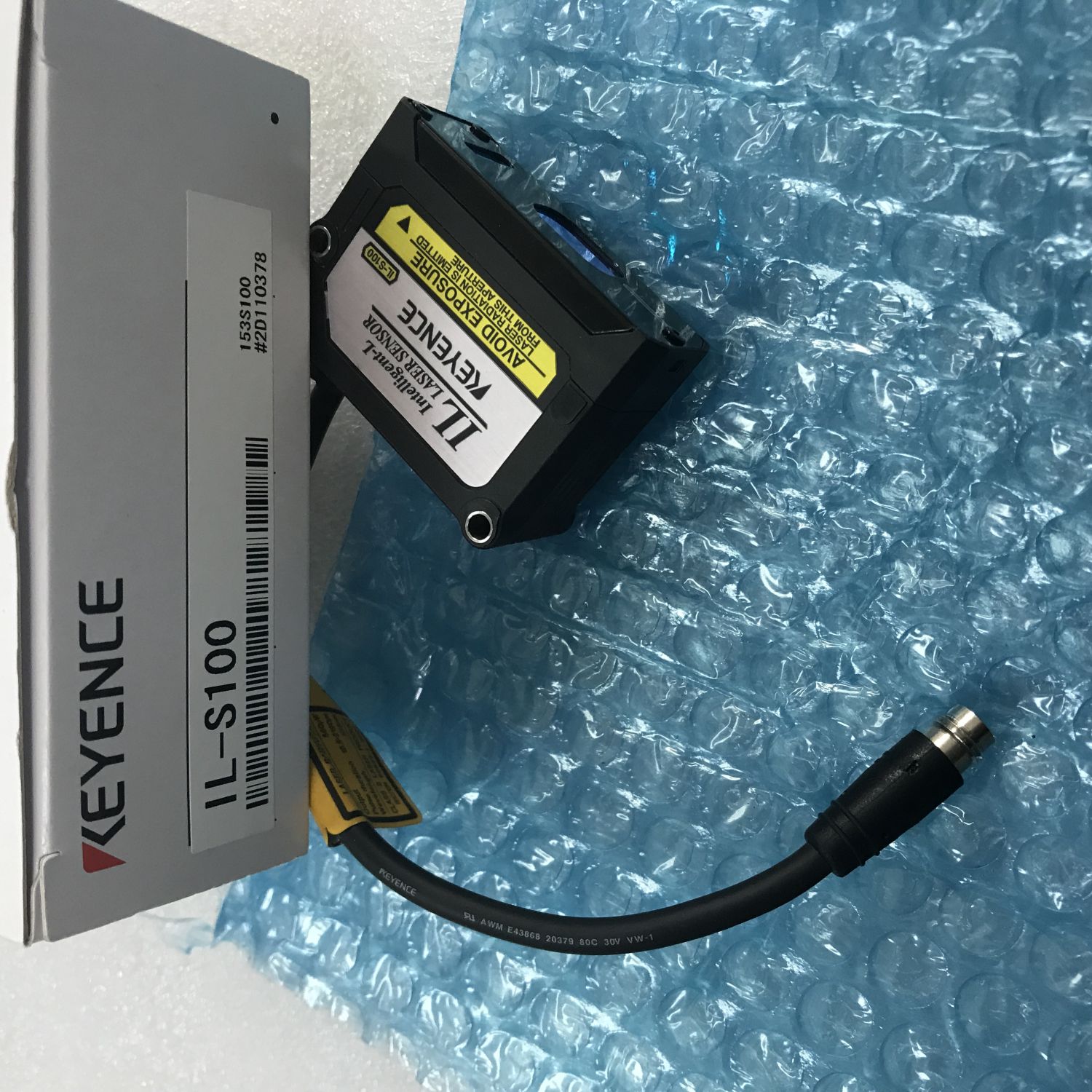

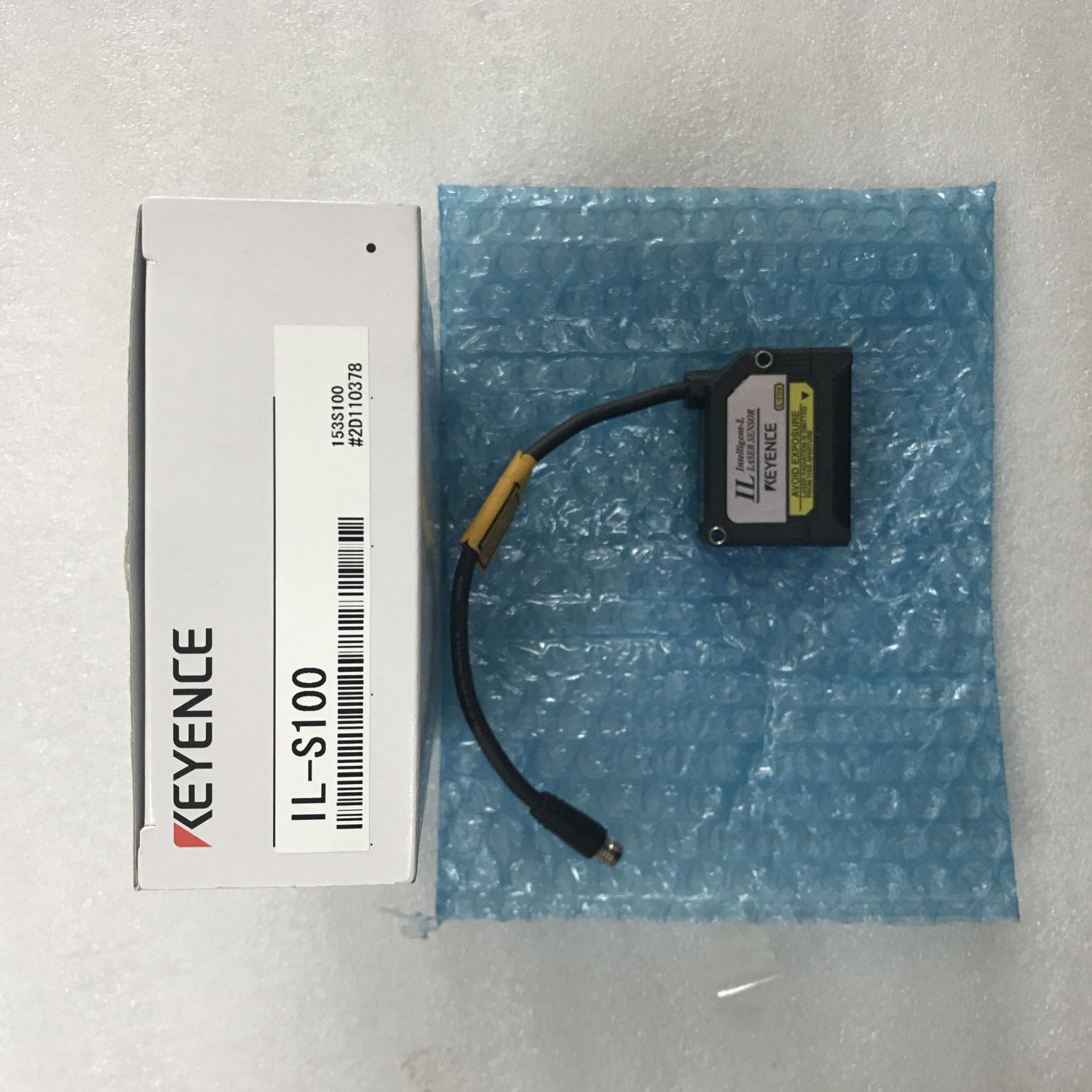

IL-S100 keyence Sensor head

Category: .

specification

Model IL-S100 *1
Reference distance 100 mm
Measured distance 70 ~ 130 mm
light source type Red semiconductor laser wavelength: 655 nm (visible light)
Laser class Class 2 laser product (FDA(CDRH) Part1040.10 *2 , IEC 60825-1)
output 560 µW
Spot diameter (at reference distance) About 110 x 2700 µm
Linearity ±0.025% of F.S. (when used at 70 to 100 mm) *3 *4
±0.07% of F.S. (when used at 70 to 130 mm) *3 *4
Repeatability 4µm *5
Sampling period 0.33 / 1/2 / 5ms (4 steps variable)

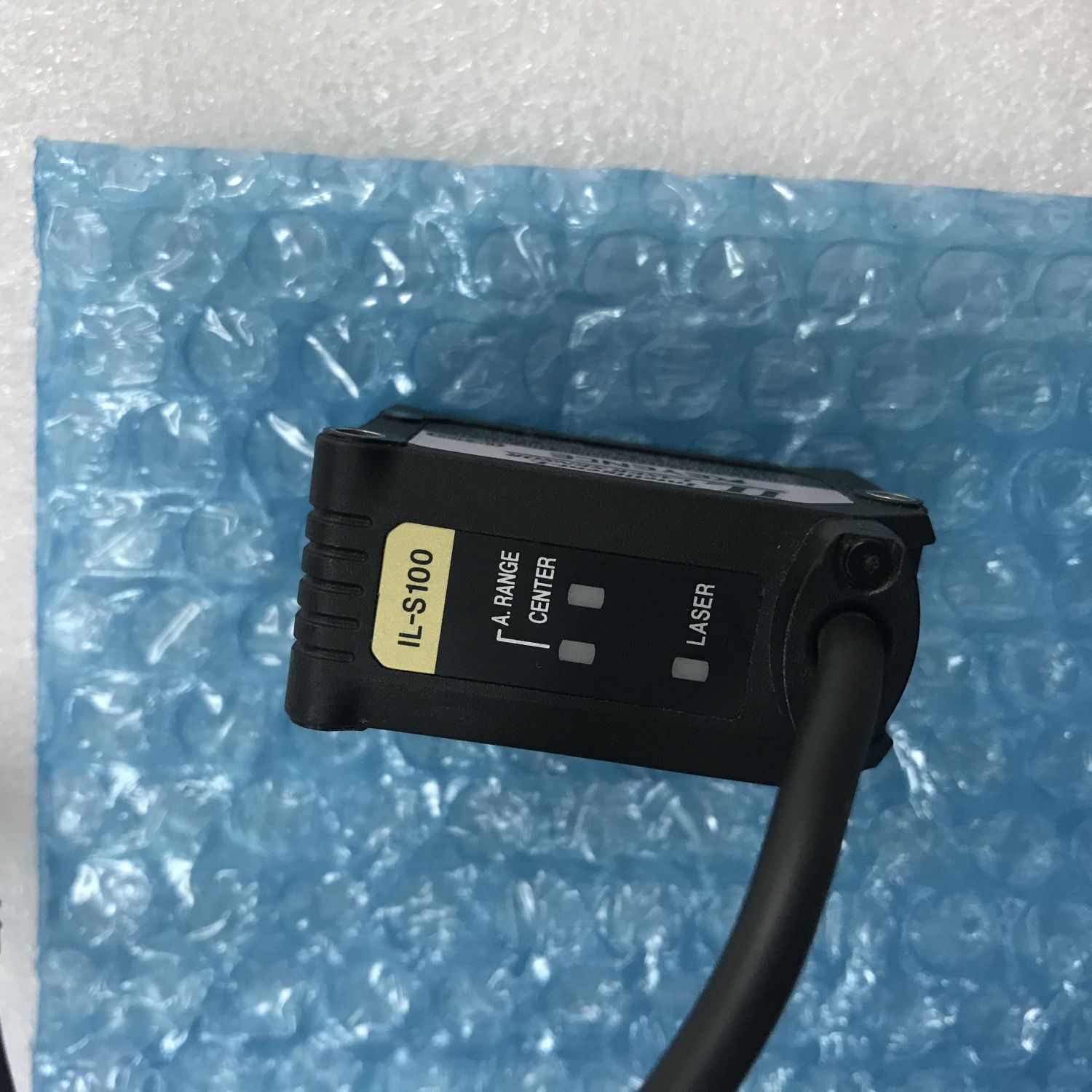

Operation indicator Laser emission warning light: green LED, analog range indicator: orange LED, reference distance indicator: red/green LED
Temperature characteristics 0.03%ofF.S./℃ *4
Environmental resistance Protective structure IP67
Pollution degree 3
Ambient illuminance Incandescent lamp: 10,000 lux *6
Ambient temperature -10 to +50 °C (no condensation or freezing)
Ambient humidity 35 to 85% RH (no condensation)
Vibration resistance 10 to 55 Hz, 1.5 mm double amplitude, 2 hours in each direction of X, Y and Z
Material Body case: PBT, metal part: SUS304, packing: NBR, lens cover: glass, cable: PVC
mass About 75 g
*1 Cannot be used with amplifier units purchased before August 16, 2011.
*2 Classified according to IEC60825-1 standards in accordance with FDA (CDRH) Laser Notice No.50. I am.
*3 The value when measuring our standard object (white diffuse object).
*4 The FS of each model is as shown on the right. IL-S025: ±5 mm, IL-S065: ±10 mm, IL-S100: ±30 mm
*5 Value when measuring our standard object (white diffuse object) at the reference distance with a sampling period of 1 ms and an average count of 128 times. is.
*6 The value when the sampling period is set to 2 ms or 5 ms.
