| Series name |
MELSERVO-J3 series |
| Command interface |
Built-in positioning function for CC-Link |
| Voltage class |
200V |
| capacity |
[kW] |
1 |
| Servo amplifier model |

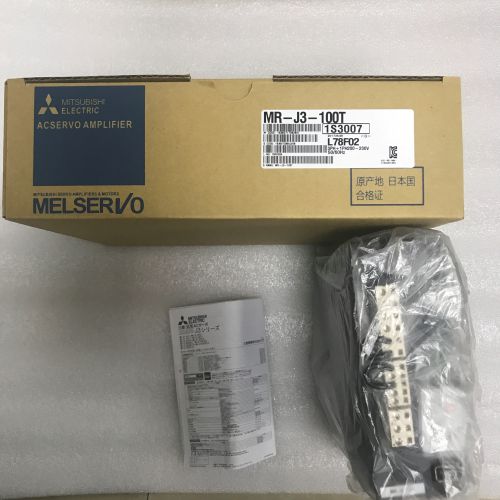

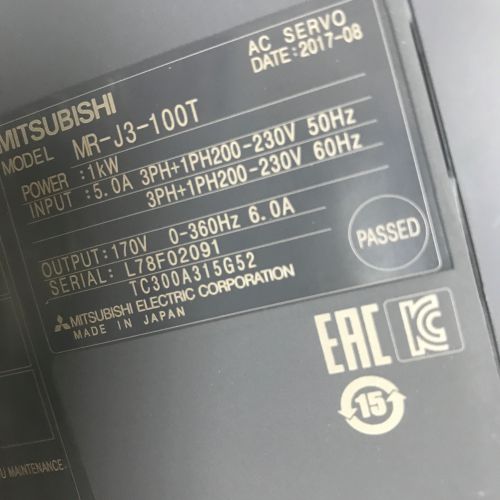

MR-J3-100T |
| output |
Rated voltage |
Three-phase 170 VAC |
| Rated current |
[A] |
6 |
| Main circuit power input |
Voltage / frequency |
Three-phase 200 to 230 VAC / 50, 60 Hz |
| Rated current |
[A] |
5 |
| Allowable voltage fluctuation |
Three-phase 170 to 253 VAC |
| Allowable frequency fluctuation |
Within ± 5% |
| Control circuit power input |
Voltage / frequency |
Single-phase 200 to 230 VAC / 50, 60 Hz |
| Rated current |
[A] |
0.2 |
| Allowable voltage fluctuation |
Single-phase 170 to 253 VAC |
| Allowable frequency fluctuation |
Within ± 5% |
| power consumption |
[W] |
30 |
| Power supply for interface |
DC24V ± 10% (required current capacity: 0.15A) |
| Allowable regenerative power of regenerative resistor |
Built-in amplifier resistor |
[W] |
20 |
| When using standard accessories |
[W] |
－ |
| control method |
Sine wave PWM control / current control method |
| Dynamic brake |
Built-in |
| Protection function |
Overcurrent cutoff, regenerative overvoltage cutoff, overload cutoff (electronic thermal), servomotor overheat protection, detector error protection, regenerative error protection, undervoltage / instantaneous power failure protection, overspeed protection, excessive error protection |
| Structure (degree of protection) |
Strong cold, open (IP00) |
| Environmental condition |
Ambient temperature |
0 to 55 ° C (No freezing), Storage: -20 to 65 ° C (No freezing) |
| Ambient humidity |
90% RH or less (no condensation), storage: 90% RH or less (no condensation) |
| atmosphere |
Indoors (no direct sunlight), no corrosive gas, flammable gas, oil mist, dust |
| elevation |
1000 m or less above sea level |
| Vibration resistance |
5.9 m / s 2 or less, 10 ~ 55Hz (X, Y , Z each direction) |
| mass |
[kg] |
1.4 |
| About restrictions |
Since no restrictions are displayed when comparing specifications, see the specifications of each model. |
