MXS25-150AMXS25-150AMXS25-150A

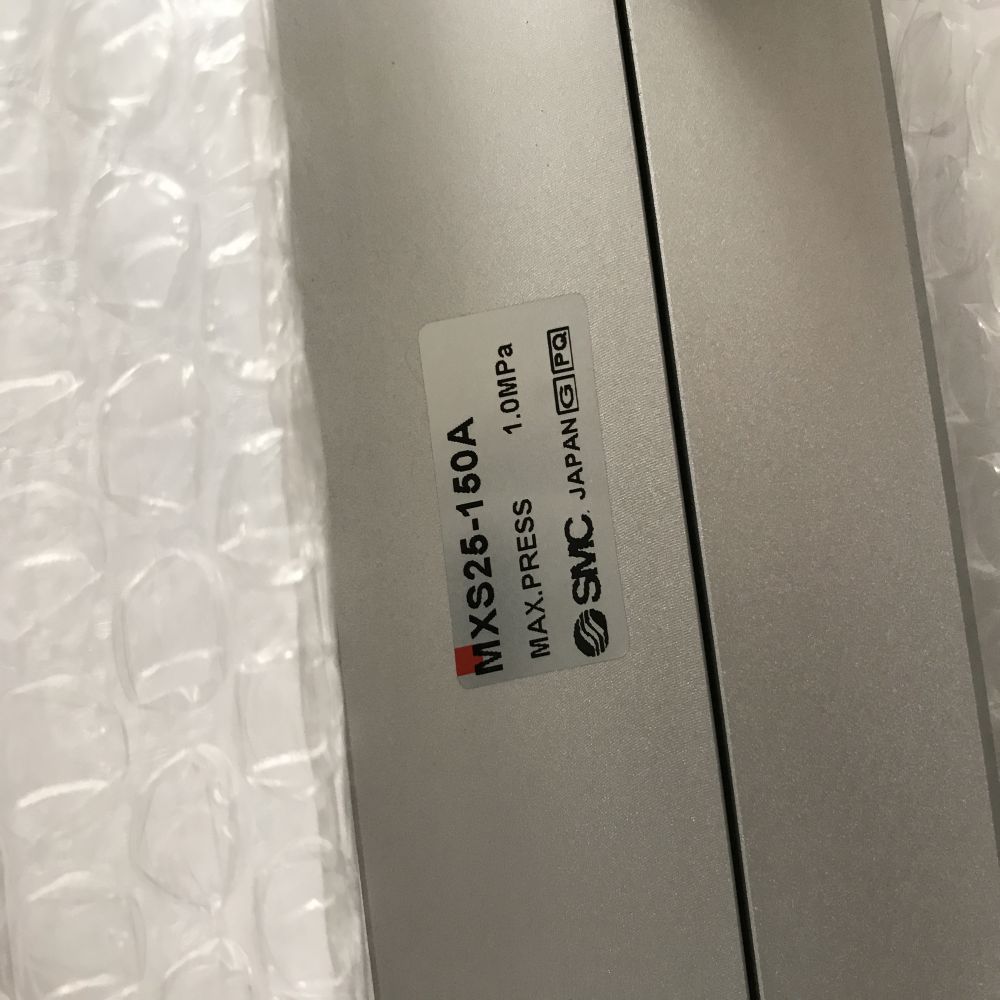

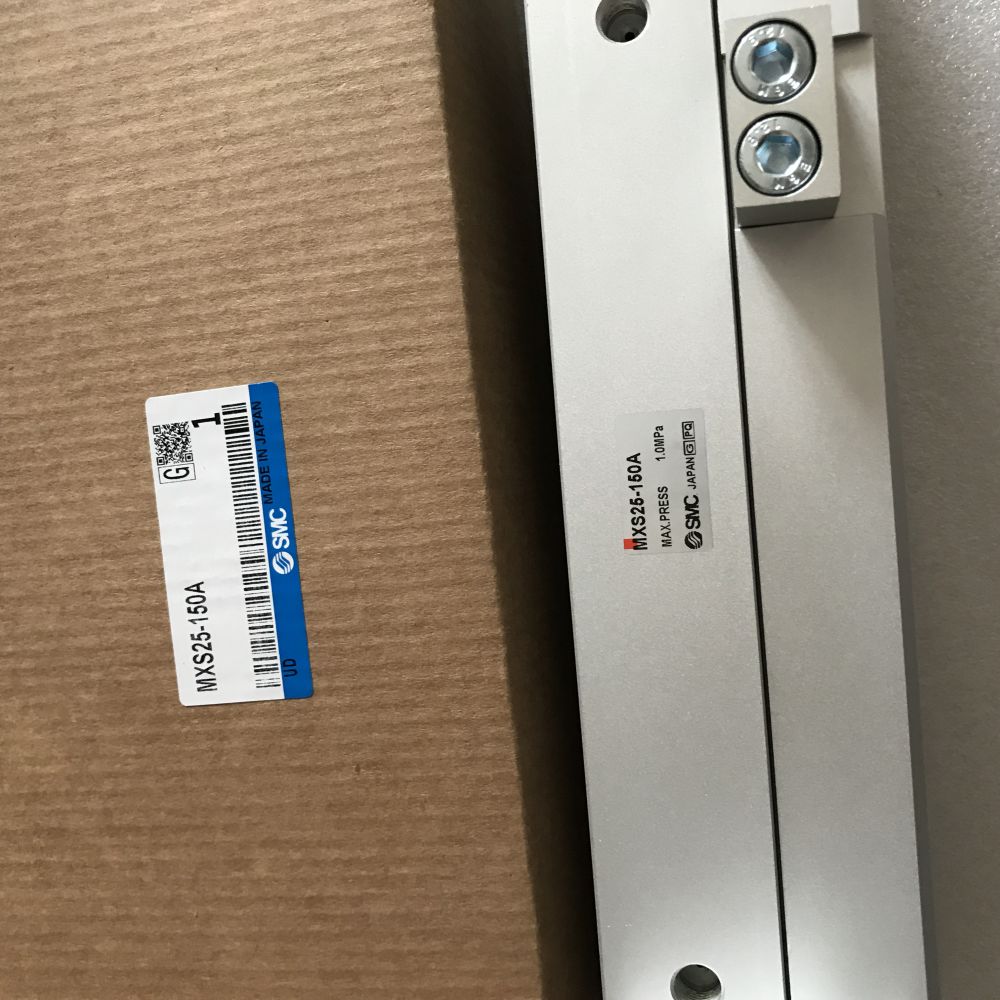

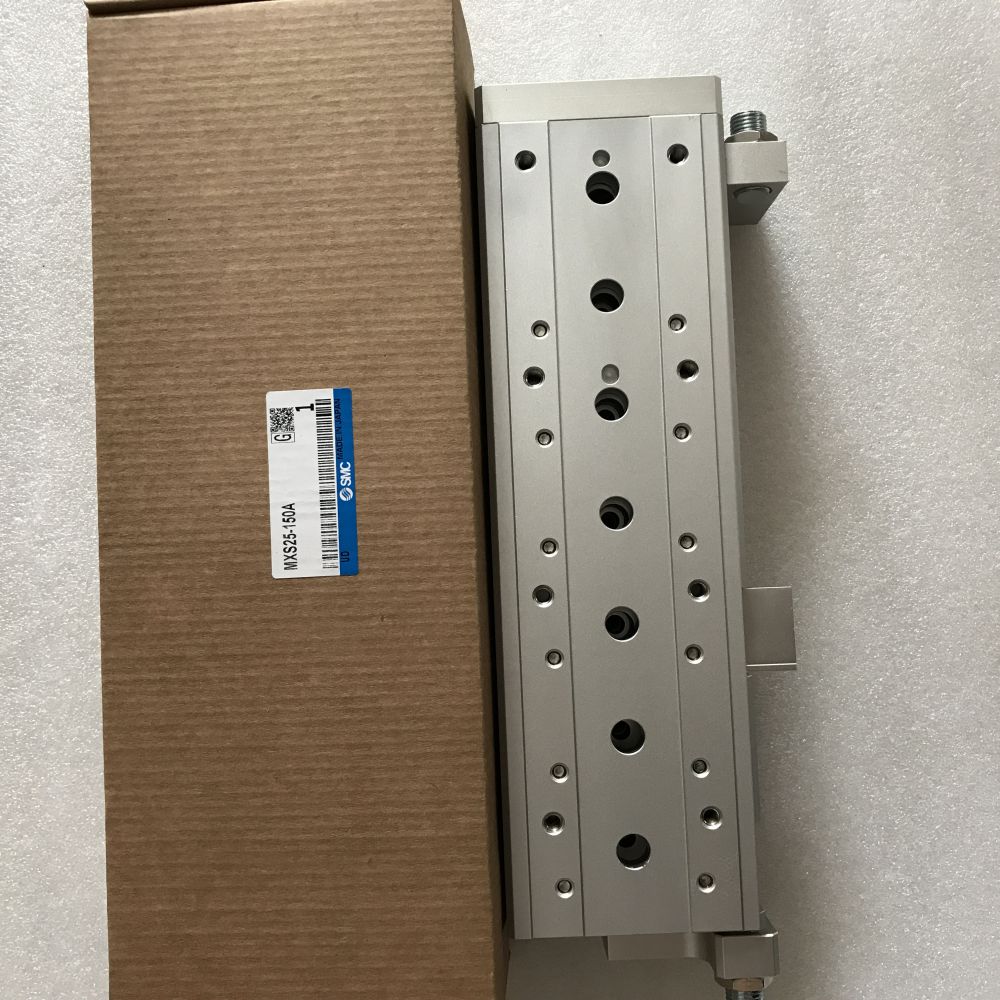

MXS25-150A SMC Air Slide Table

Category: .
Slide table type: Air Slide Table (MXS Series) Proof pressure: +1.05 Mpa
Bore diameter: 25 mm Operating pressure range: +0.15 to +0.7 Mpa
Stroke length: 150 mm Maximum applied force: 687 N
Adjuster option: Adjuster (Both Ends) Operating temperature range: -10 to +60 °C
Magnet included: Magnet Included Overall length: 311 mm
Number of auto switches: 0 Overall width: 92 mm
Piston action: Double-Acting Overall height: 62 mm
Bearings included: Cross Roller Bearing Thread standard: BSPT
Port size: 1/8 in
