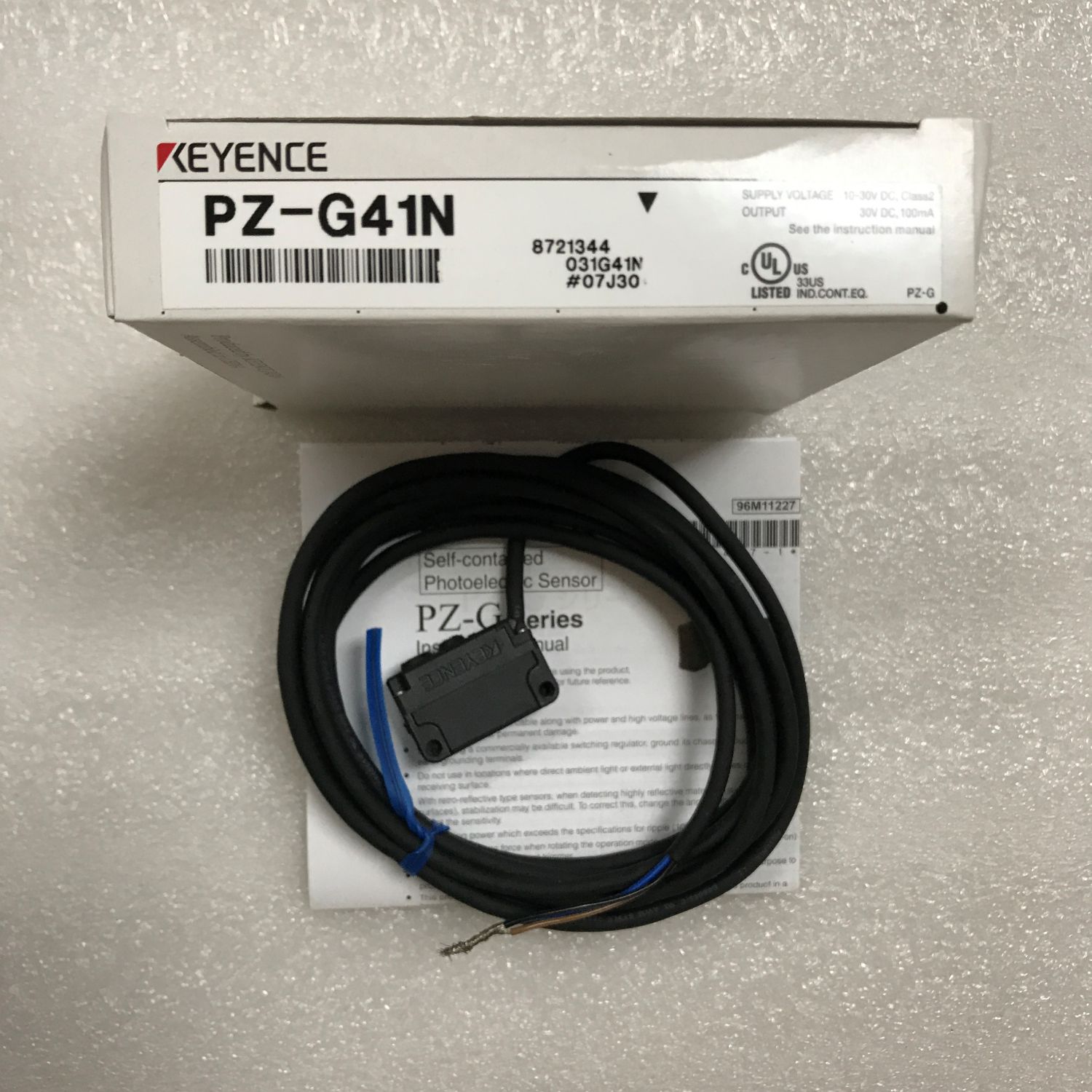

PZ-G41N

PZ-G41N keyence amplifier photoelectric sensors

Category: .
Model PZ-G41N
Type Diffuse Reflective
Long-range
Shape Rectangular
Output NPN
Cable connection Cable (2 m 78.74″*1
Detecting distance 1 m 3.3′
(When detecting
30 x 30 cm
11.81″x11.81″
white paper)
Spot diameter
Light source Red LED
Sensitivity adjustment 1-turn trimmer (230°)
Response time 500 µs
Operation mode LIGHT-ON/DARK-ON (switch-selectable)
Indicators (LED) Output: Orange LED,
Stable operation: Green LED
Control output Open collector output, 30 V max., 100 mA max., Residual voltage: 1 V max.
Protection circuit Reversed polarity, overcurrent protection, surge absorber
Interference suppression Up to 2 units
(with the automatic different frequency function)
Tightening torque Rectangular models (Mounting hole part): 0.5 N m max.
Rating Power voltage 10 to 30 VDC, including Ripple (P-P) 10 %
Current consumption 34 mA or less
Environmental resistance Enclosure rating IEC: IP67/NEMA: 4A, 6, 12/DIN: IP69K
Ambient light Incandescent lamp: 5,000 lux max., Sunlight: 20,000 lux max.
Ambient temperature -20 to +55 °C -4 to 131 °F (No freezing)
Relative humidity 35 to 85 % RH (No condensation)
Vibration resistance 10 to 55 Hz, Double amplitude 1.5 mm 0.06″, 2 hours in each of the X, Y, and Z directions
Shock resistance 1,000 m/s2, 6 times in each of the X, Y, and Z directions
Material Housing, M18 nut
(threaded models only)
Glass-fiber reinforced PBT
Lens cover Polyarylate (PAR)
Trimmer Glass-fiber reinforced polyamide (PA)
Case connection Screw: Nickel-plated iron and zinc, packing: nitrile butadiene rubber (NBR)
Cable (cable models only) Polyvinyl chloride (PVC)
Connector (connector type with cable only)
Accessories Instruction manual
Weight Rectangular cable models: Approx. 60 g (Thrubeam-models transmitter: Approx. 50 g)
*1 Cable sold separately for connector models
