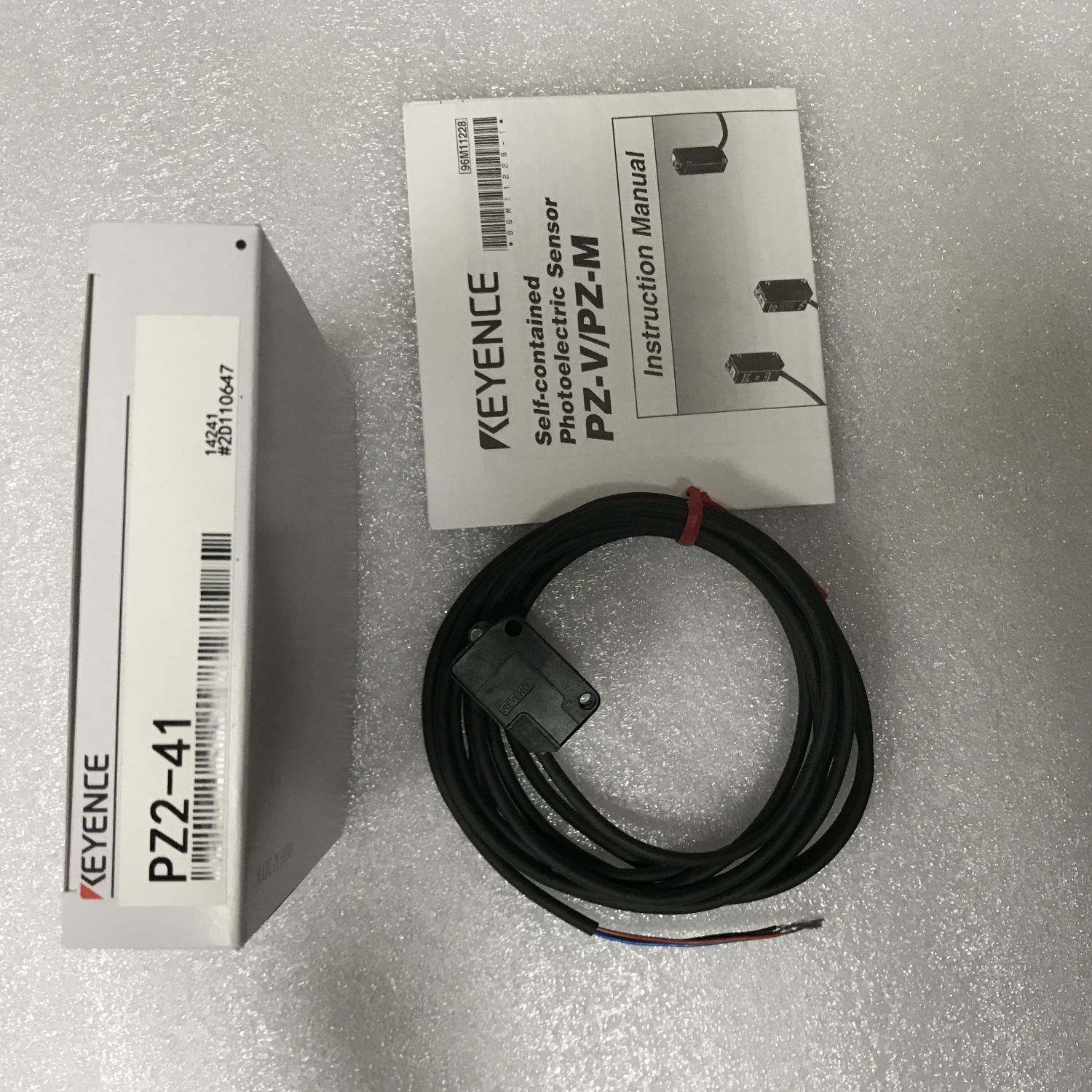

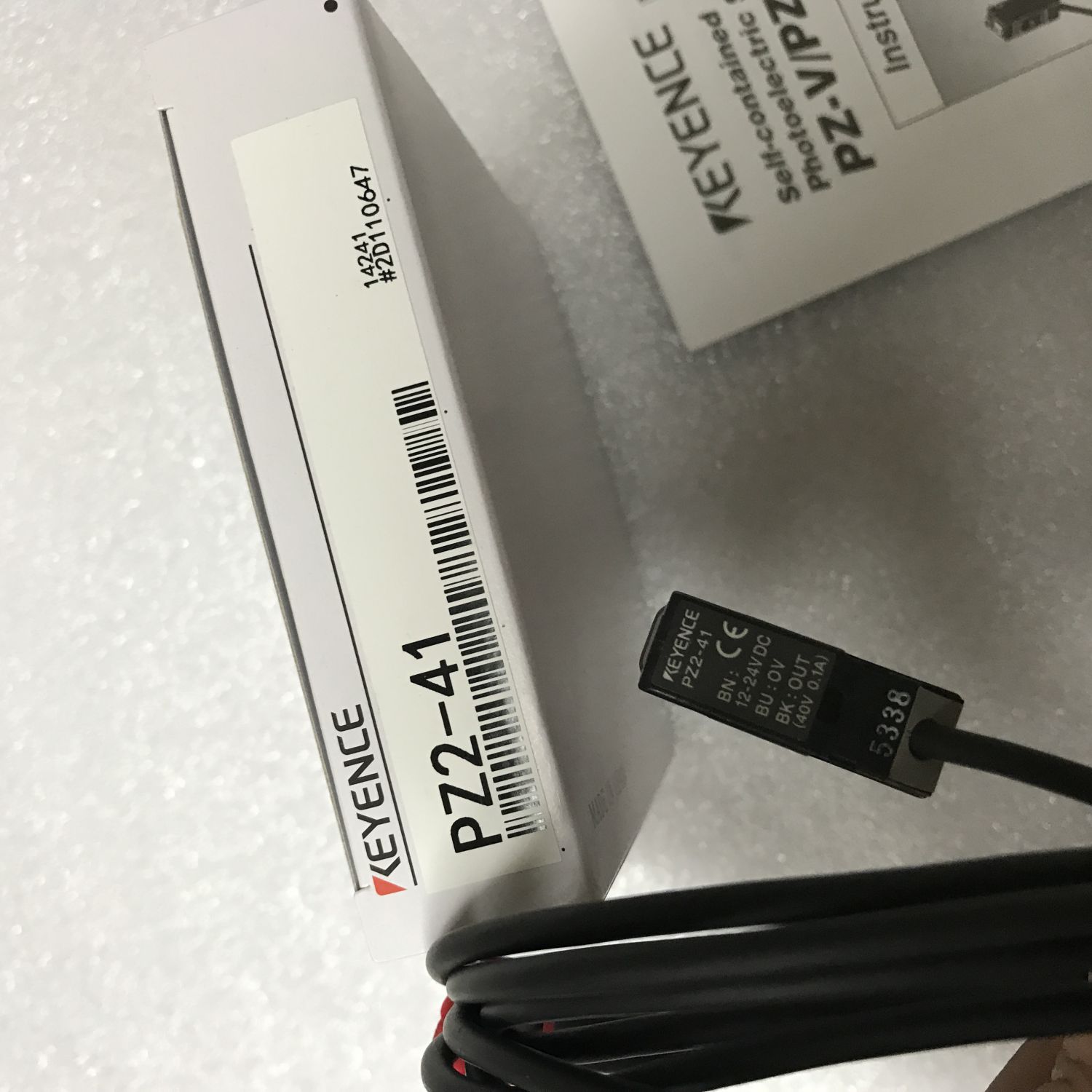

PZ2-41 keyence amplifier photoelectric sensors
| Model | PZ2-41 | |||
| Type | Diffuse-reflective Long-range | |||
| Detection distance | 600 mm 23.62″ (200 x 200 mm7.87″ white mat paper) | |||
| Light source | Red LED | |||
| Detectable object | Transparent and opaque | |||
| Hysteresis(of detecting distance) | 20 % max. | |||
| Sensitivity adjustment | 1-turn trimmer (240°) | |||
| Response time | 1 ms max. | |||
| Operation mode | LIGHT-ON/DARK-ON (switch-selectable) | |||
| Indicator lamp | Output and power*1: Red LED, Stable operation: Green LED | |||
| Control output | NPN or PNP: 100 mA (40 V) max., Residual voltage: 1 V max. | |||
| Protection circuit | Reversed polarity, overcurrent protection, surge absorber | |||
| Rating | Power voltage | 12 to 24 VDC ±10 %, Ripple (P-P) 10 % or less | ||
| Current consumption | 35 mA or less | |||
| Environmental resistance | Enclosure rating | IP67 | ||
| Ambient light | Incandescent lamp: 5,000 lux max., Sunlight: 20,000 lux max. | |||
| Ambient temperature | -20 to +55 °C -4 to 131 °F (No freezing) | |||
| Relative humidity | 35 to 85 % RH (No condensation) | |||
| Vibration resistance | 10 to 55 Hz, Double amplitude 1.5 mm 0.06″, 2 hours in each of the X, Y, and Z directions | |||
| Shock resistance | 1,000 m/s2, 6 times in each of the X, Y, and Z directions | |||
| Case material | Glass-fiber reinforced plastic | |||
| Accessories | Mounting bracket x 1, Mounting screws x 2, Plate nut x 1 | |||
| Weight | Approx. 50 g (including 2-m 6.6′ connector cable) | |||
| *1 The power indicator is equipped with the PZ2-51 only. | ||||
