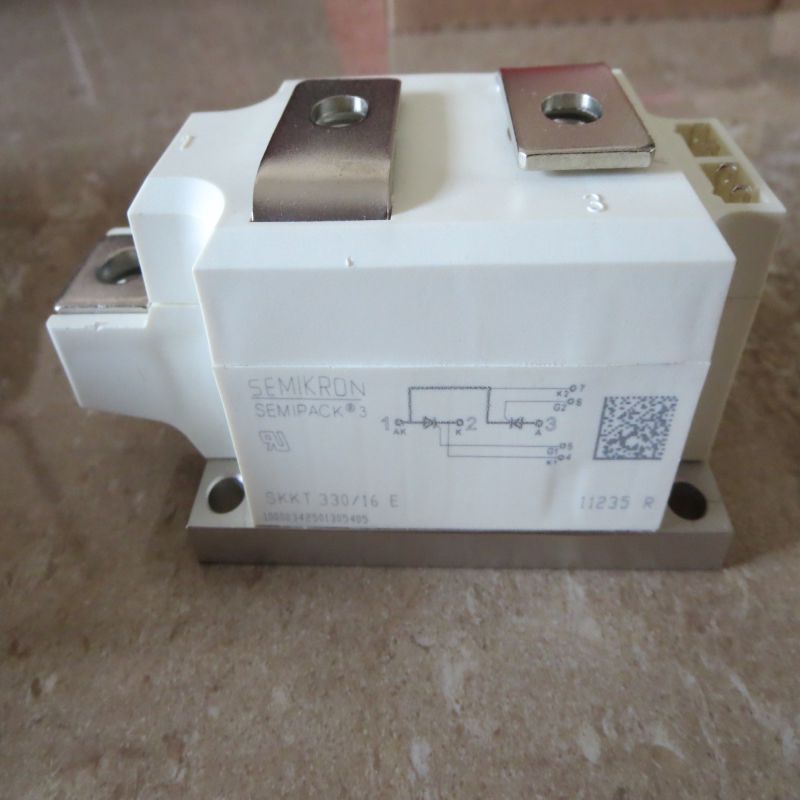

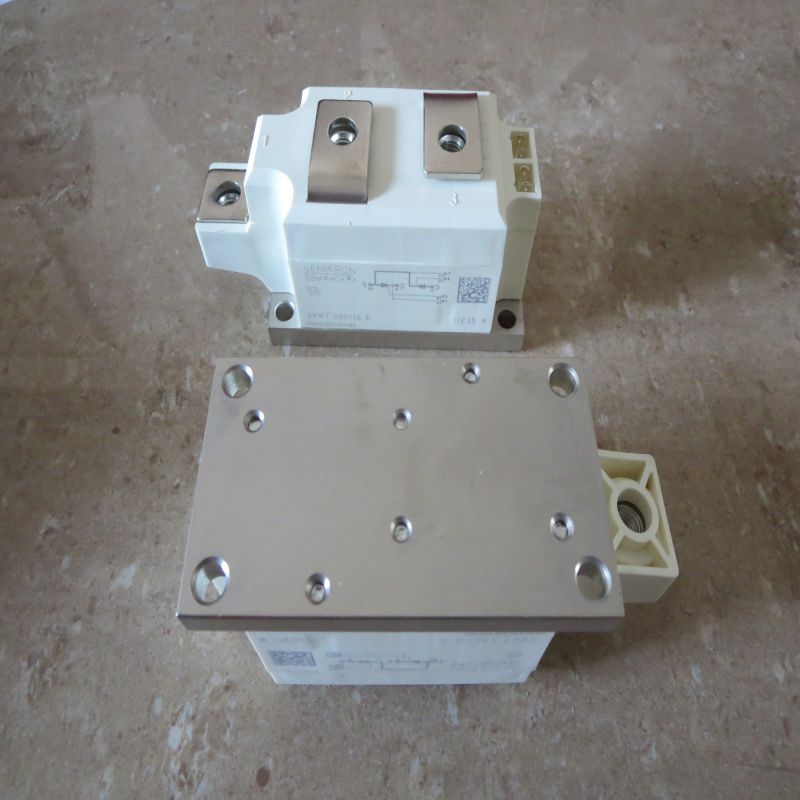

SKKT33016E Moudle

SCR Module Type:Series Connected – SCRs

Peak Repetitive Off-State Voltage, Vdrm:1.6kV

Gate Trigger Current Max, Igt:200mA

Current It av:330A

On State RMS Current IT(rms):510A

Peak Non Rep Surge Current Itsm 50Hz:9.5kA

Holding Current Max Ih:500mA

Gate Trigger Voltage Max Vgt:3V

Operating Temperature Max:130°C

Product Range:-

MSL:  –
