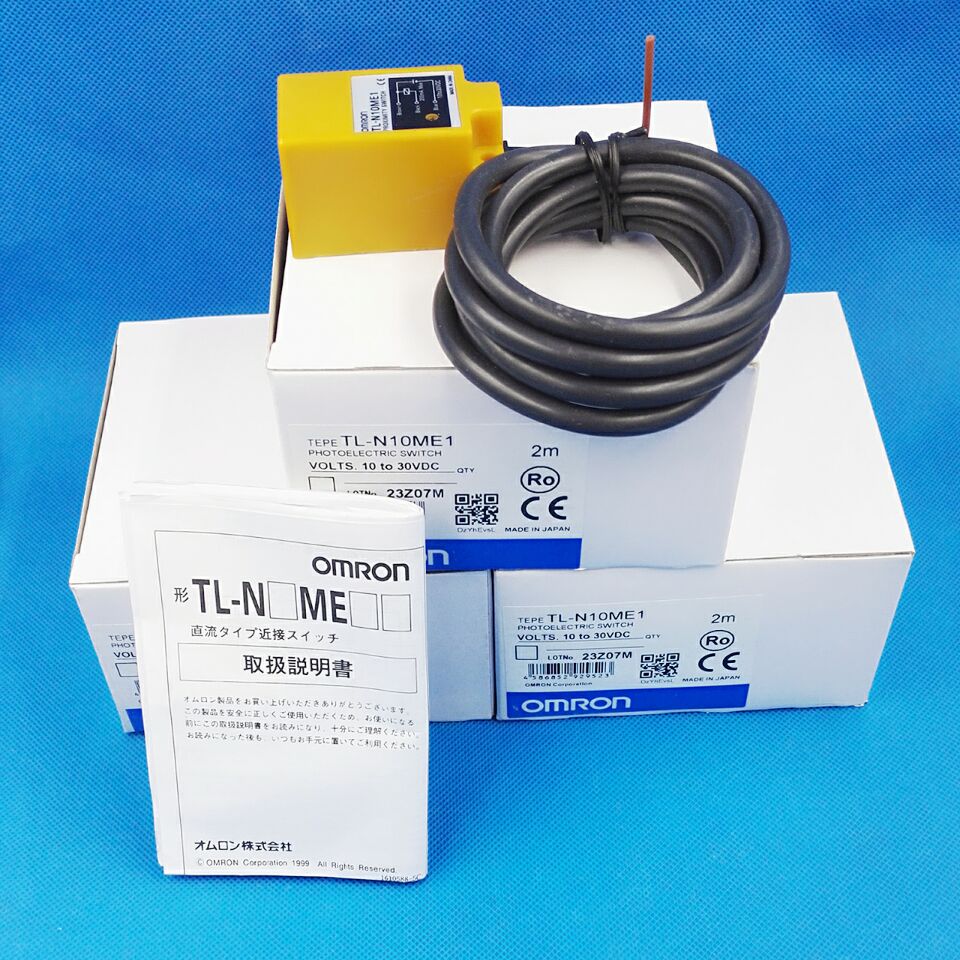

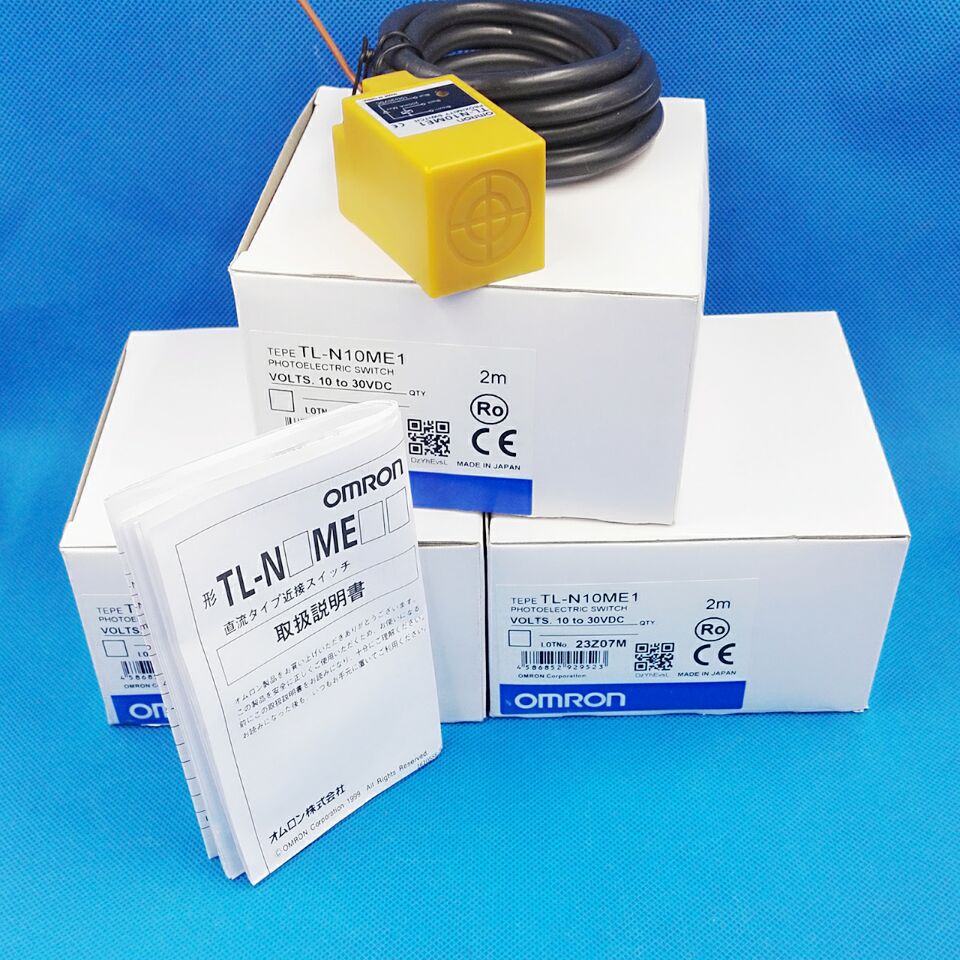

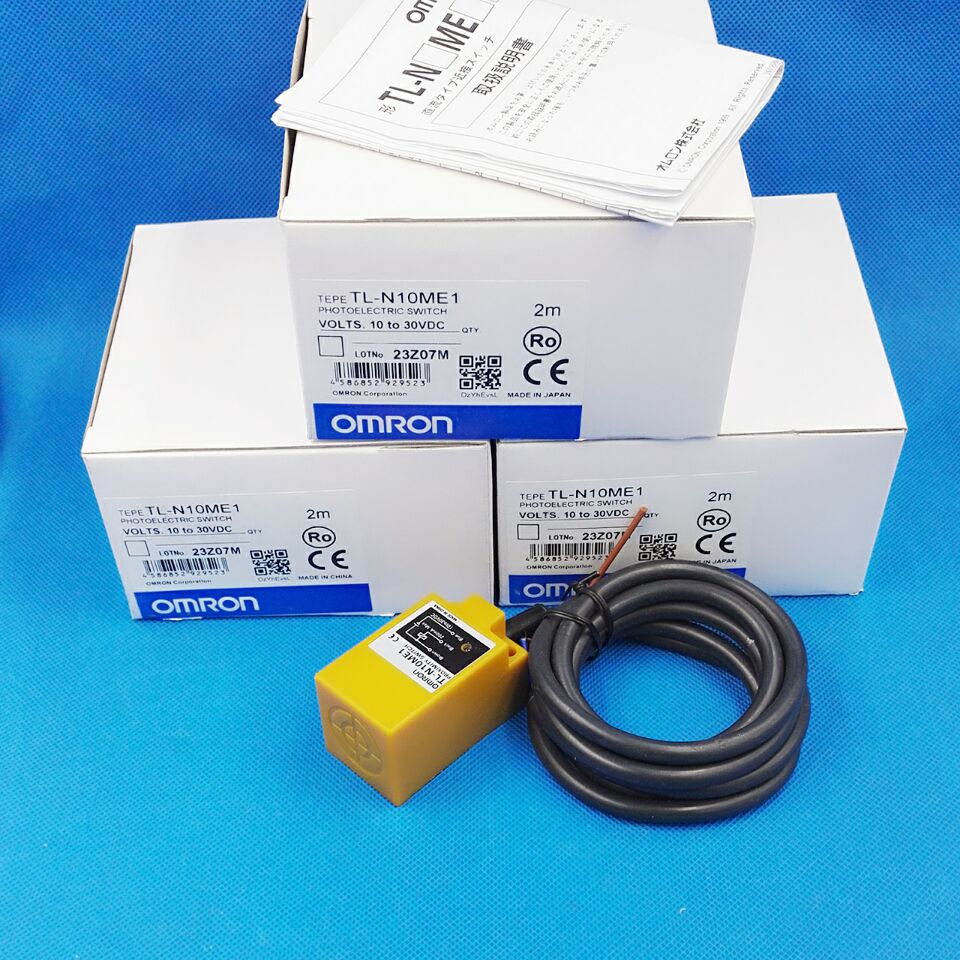

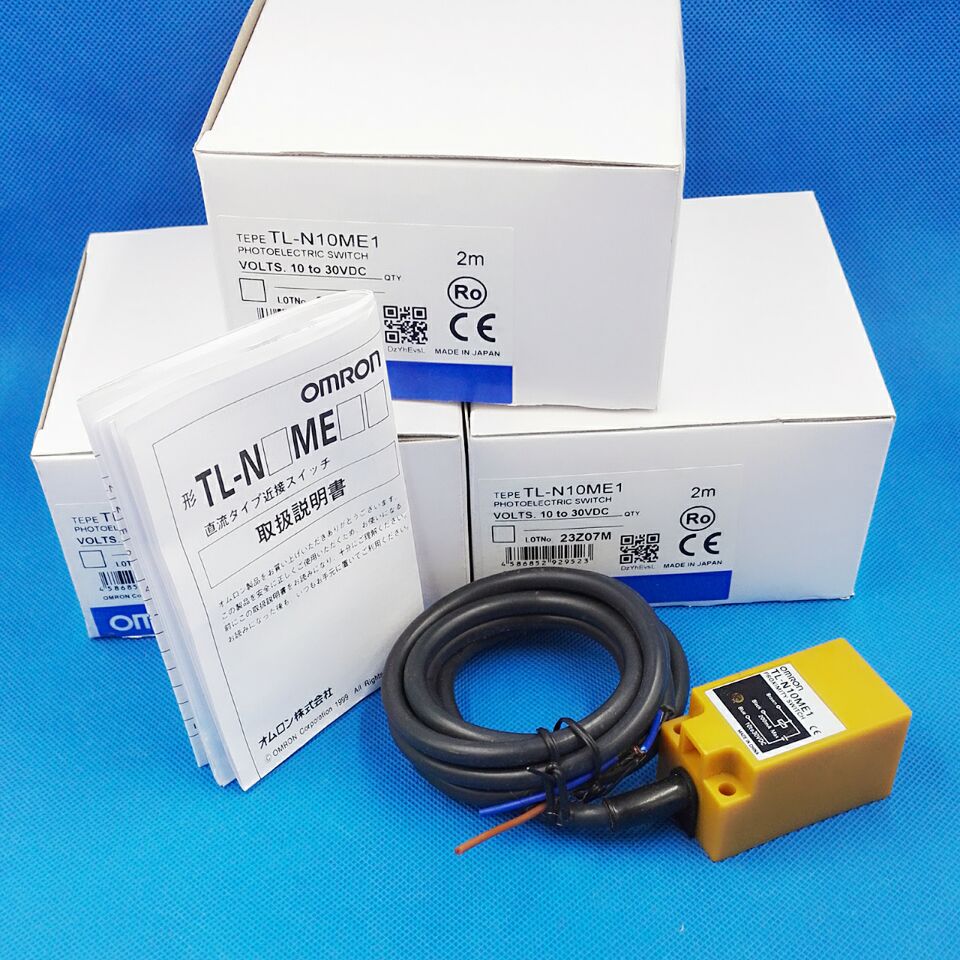

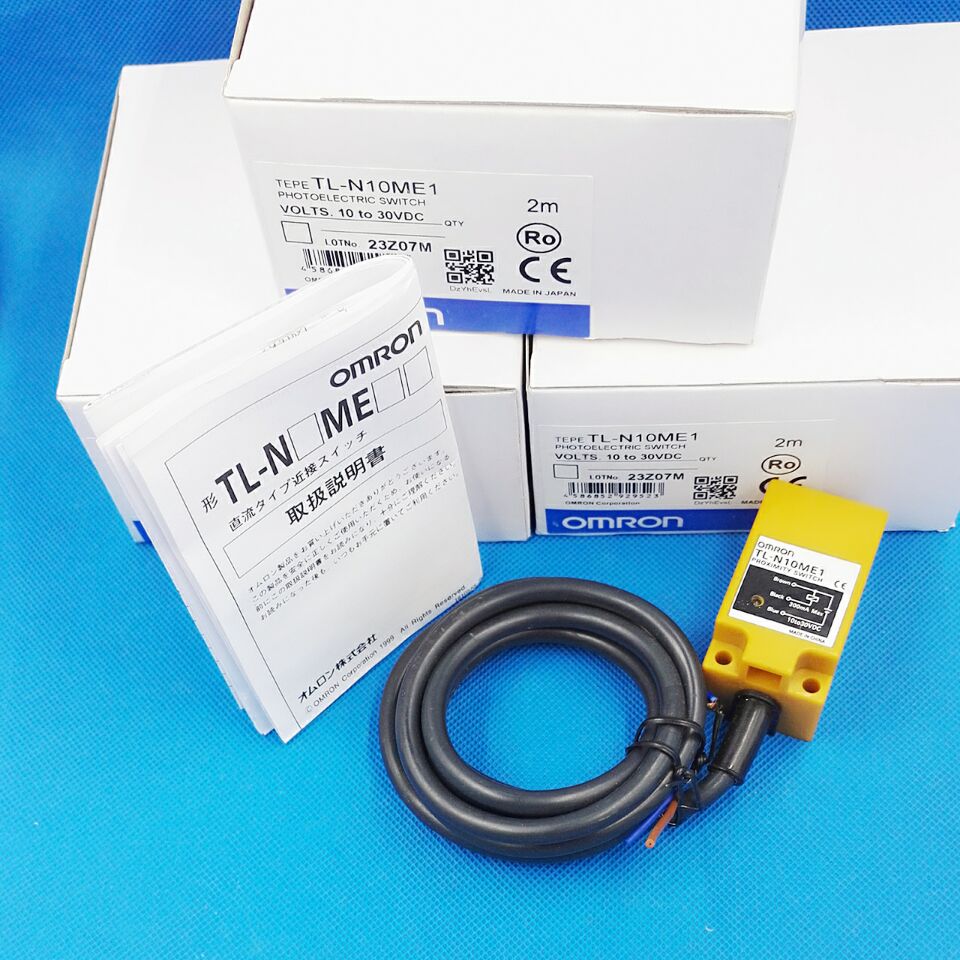

TL-N10ME1 Omron photoelectric switch

type Square type
unshielded type
Detection distance 10 mm ± 10%
Set distance 0 to 8 mm
Hysteretic 15% or less of the detection distance
Detectable object Magnetic metal (Detection distance of nonmagnetic metal decreases)
Standard detection object Iron 40 × 40 × 1 mm
Type of power supply DC 3 wire type
Power-supply voltage 12 to 24 VDC (ripple (pp) 10% or less)
Operating voltage range 10 to 30 VDC
Current consumption 8 mA or less (at 12 VDC) / 15 mA or less (at 24 VDC)
Control output (output format) NPN
Control output (switching capacity) 100 mA (at 12
VDC ) 200 mA (at 24 VDC)
Control output (residual voltage) 1 V or less (load current 200 mA)
Indicator light Detection indicator light (red)
action mode No
Protection circuit Reverse connection protection, surge absorption
Ambient temperature range At use: -25 to 70 ° C
Storage: -25 to 70 ° C
(with no freezing)
Ambient humidity range When used: 35 to 95% RH
Storage: 35 to 95% RH
(with no condensation)
Influence of temperature Change in detection distance within the temperature range of -25 to + 70 ° C is within ± 10%
(based on the detection distance at 23 ° C)
Effect of voltage Within the range of the rated voltage ± 10%, the change in the detection distance is within ± 2.5%
(based on the detection distance at the rated power supply voltage)
Insulation resistance Between charging unit and casing: 50 MΩ or more (DC 500 V mega)
Withstand voltage Between charging unit and casing: AC 1000 V 50/60 Hz 1 min
Vibration (durability) 10 to 55 Hz Double amplitude 1.5 mm X, Y, Z direction 2 h
Impact (durability) 500 m / s ** 2 X, Y, Z 10 times in each direction
Protective structure IEC standard: IP 67
Internal standard: oil resistant
Connection method Code pullout type
(Cord length: 5 m)
Material Case: Heat resistant ABS
detection surface: Heat resistant ABS
accessories Instruction manual, mounting bracket, mounting screw + screw
