TL-W5MD1TL-W5MD1TL-W5MD1

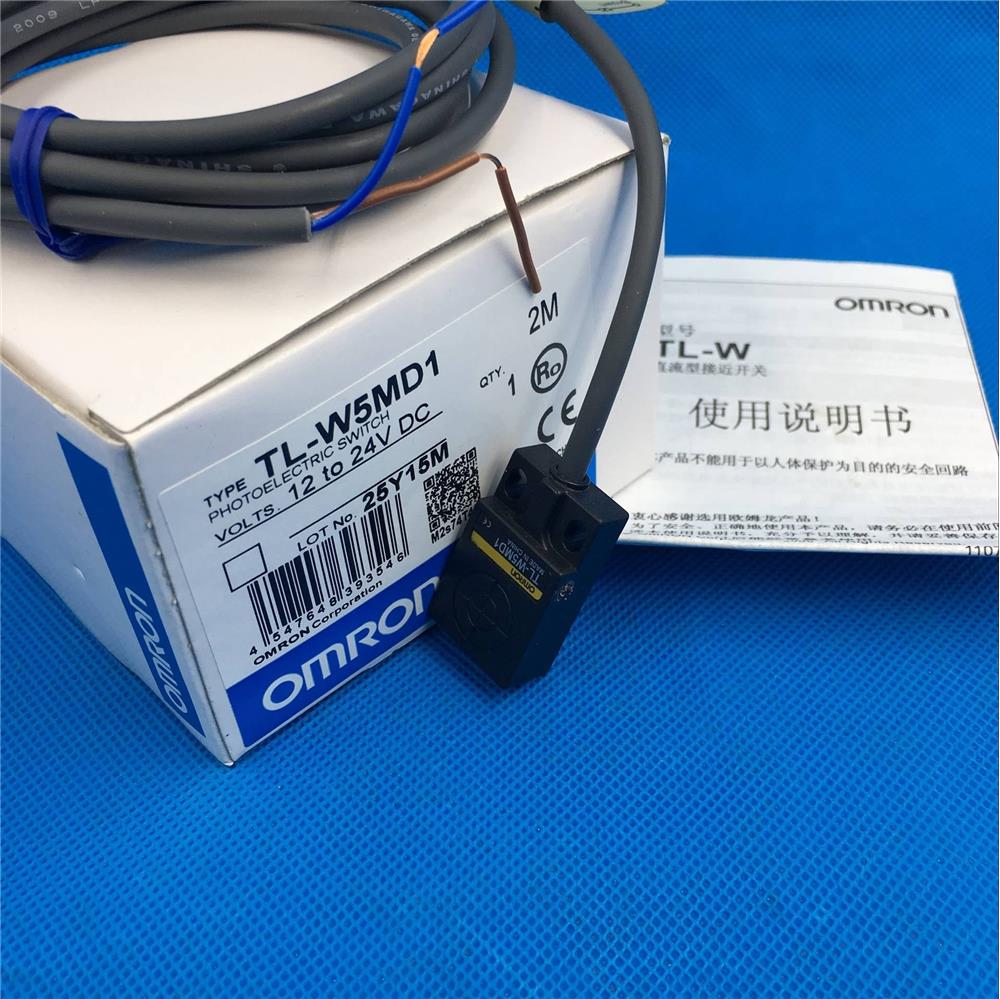

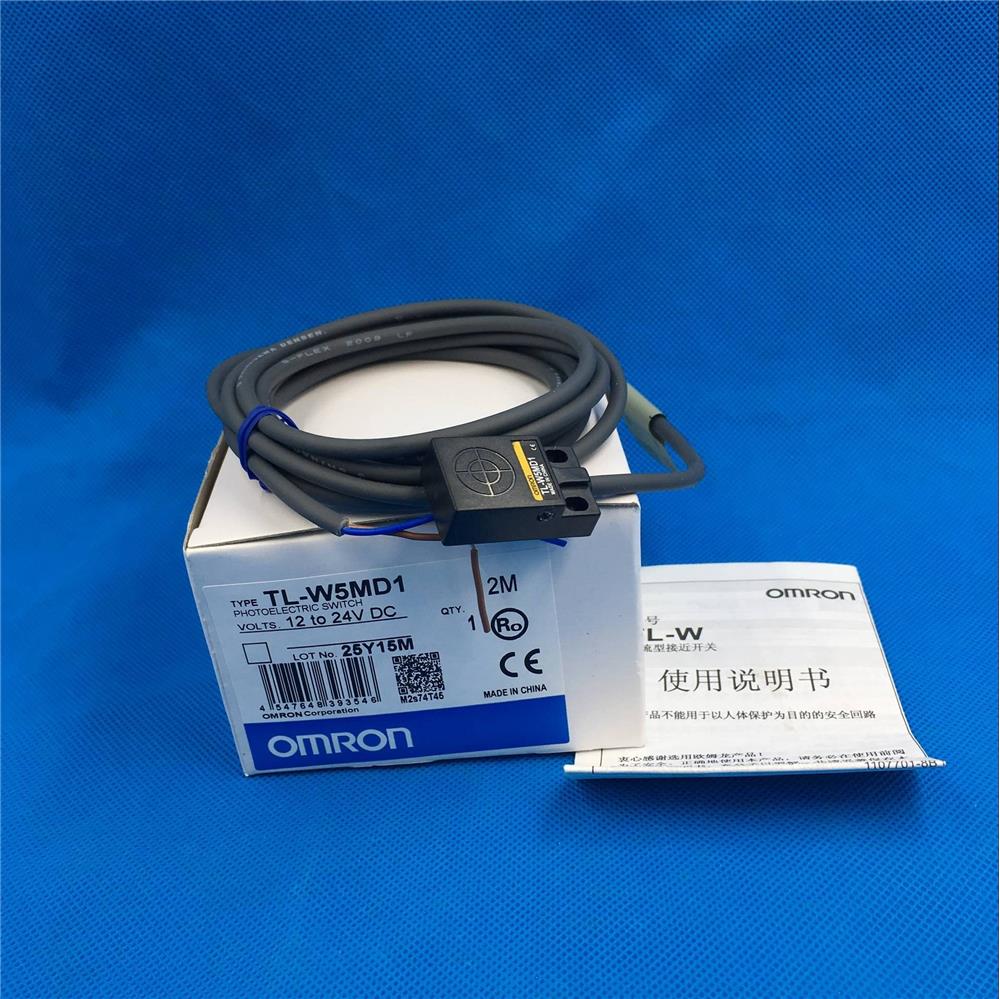

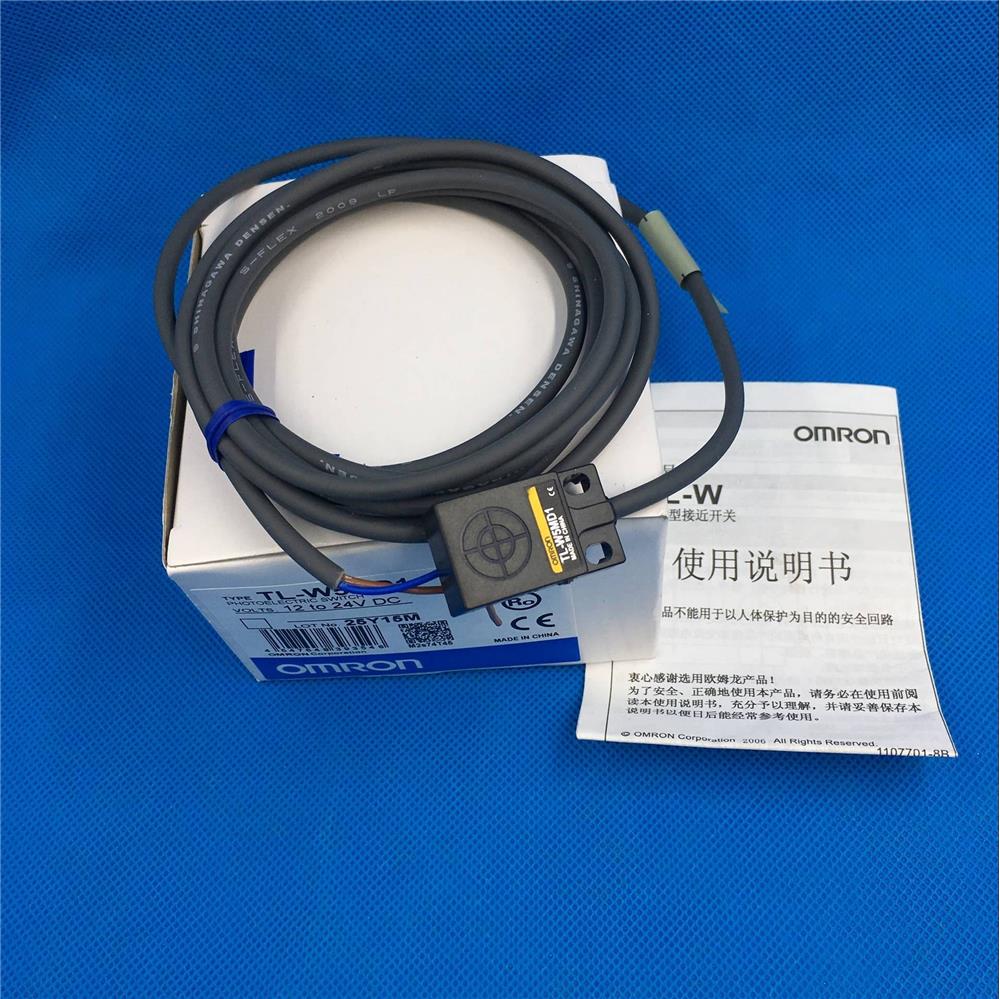

TL-W5MD1 Omron photoelectric switch

Detection head size 18 mm x 10 mm x 30.5 mm
type Square, non-shielded type
Detection distance 5 mm ± 10%
Setting distance 0 to 4 mm
Hysteresis Less than 10% of detection distance
Detectable object Magnetic metal (nonmagnetic metal reduces detection distance)
Standard detection object Iron 18 x 18 x 1 mm
Response frequency 500 Hz (average value)
Power supply type DC 2-wire system
Power-supply voltage DC12 to 24V (Ripple (pp) 10% or less)
Operating voltage range DC 10 to 30 V
Leak current 0.8 mA or less
Control output (switching capacity) 3 to 100 mA
Control output (residual voltage) 3.3 V or less (load current 100 mA, cord length 2 m)
Indicator light Operation indicator (red), setting indicator (green)
action mode NO
Protection circuit Load short circuit protection
surge absorption
Ambient temperature range When using: -25 to 70 ° C
Storage: -25 to 70 ° C
Ambient humidity range When using: 35 to 95% RH
storage: 35 to 95% RH
Temperature effect Within ± 25 ° C to + 70 ° C, ± 10% or less of detection distance at 23 ° C
Effect of voltage Within ± 15% of rated power supply voltage, ± 2.5% or less of detection distance at rated power supply voltage
Insulation resistance Between the charging part and the case: 50 MΩ or more (at DC 500 V mega)
Withstand voltage Between the charging part and the case: AC 1000 V 50/60 Hz 1 min
Vibration resistance Durability: 10 to 55 Hz, double amplitude 1.5 mm X, Y, Z directions 2h
Shock resistance Durability: 500 m / s ** 2 times in each direction of X, Y and Z
Protective structure IEC: IP67
internal standard: oil resistant
Connection method Cord drawer type (cord length: 2 m)
mass Packing condition: about 80g
Material Case: Heat-resistant ABS
Detection surface: Heat-resistant ABS
accessories instruction manual
