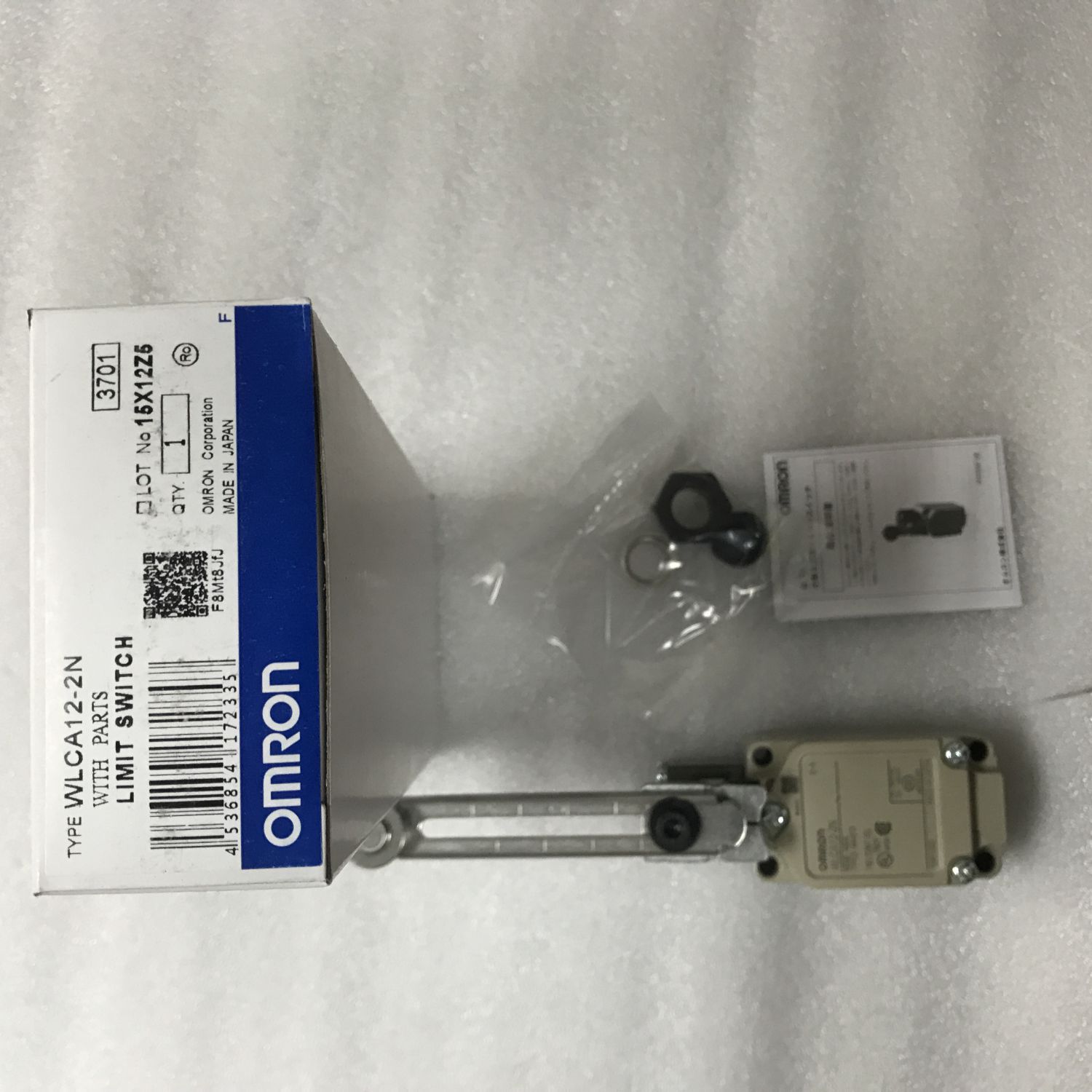

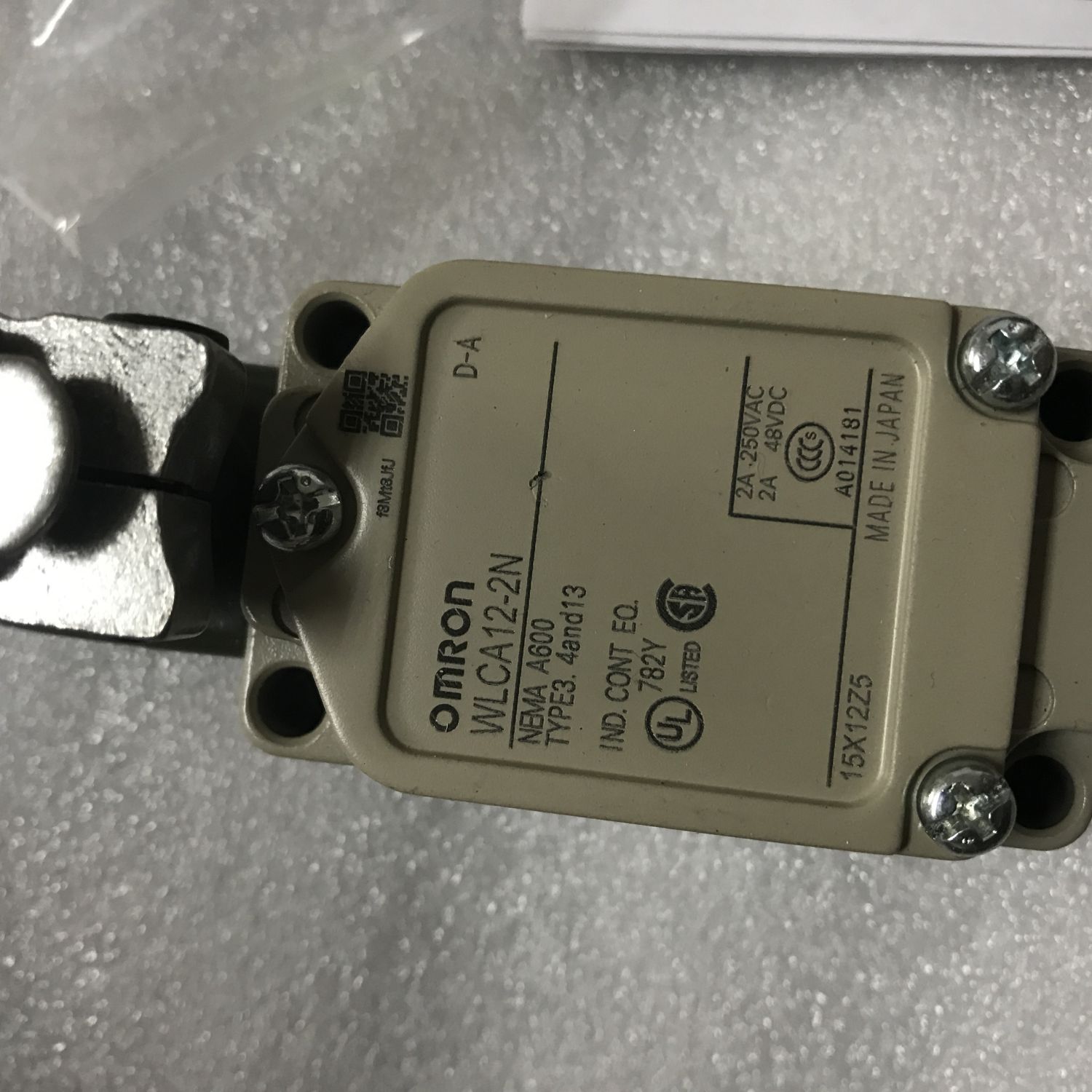

WLCA12-2N Omron Limit Switch
| Attribute | Value |
|---|---|
| Actuator Type | Roller Lever |
| Pole and Throw Configuration | SPST |
| Normal State Configuration | NO/NC |
| IP Rating | IP67 |
| Maximum Current | 10 A |
| Maximum AC Voltage | 500V |
| Maximum DC Voltage | 250V |
| Connection Type | G1/2 |
| Contact Type | Snap Action |
| Terminal Type | Conduit |
| Length | 40mm |
| Width | 101.8mm |
| Minimum Operating Temperature | -10°C |
| Maximum Operating Temperature | +80°C |
| Mounting Orientation | Back, Front, Side |
| Dimensions | 40 x 101.8 x 42 mm |
| Depth | 42mm |
| Mechanical Life Minimum | 15000000 Operations |
