WLNJ-LD-NWLNJ-LD-NWLNJ-LD-N Omron limit switchWLNJ-LD-N

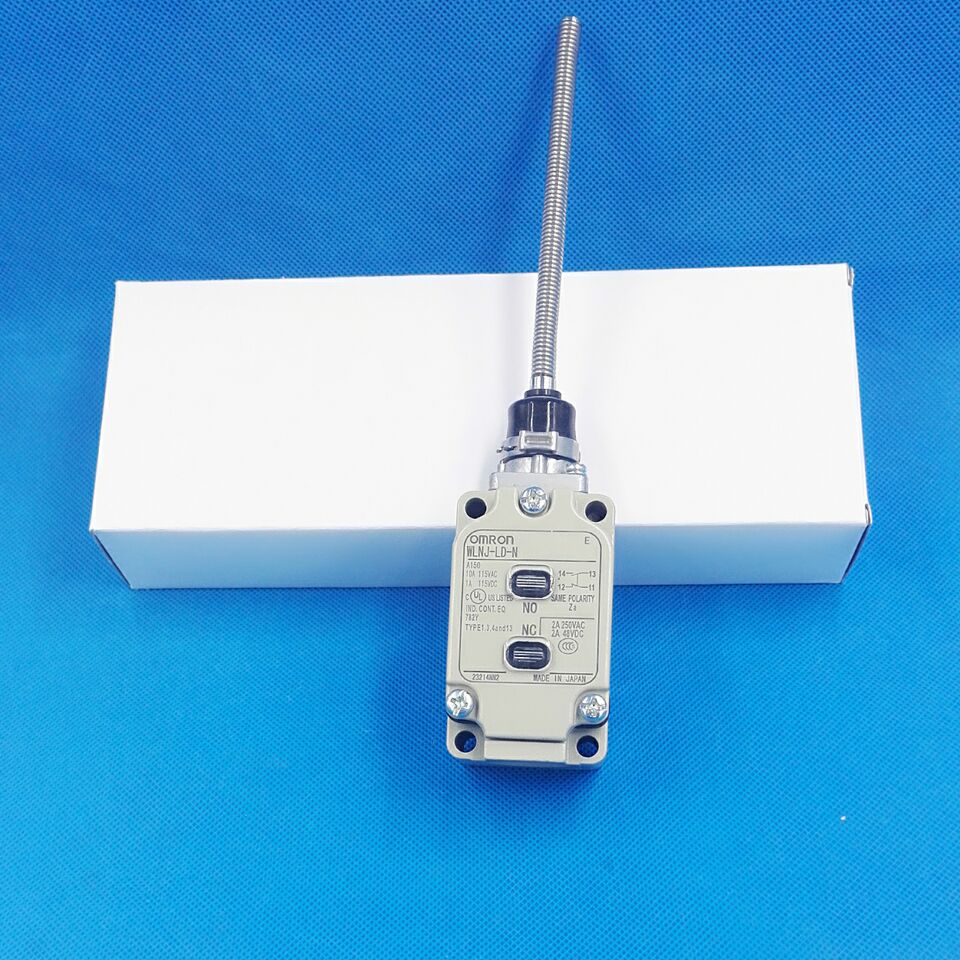

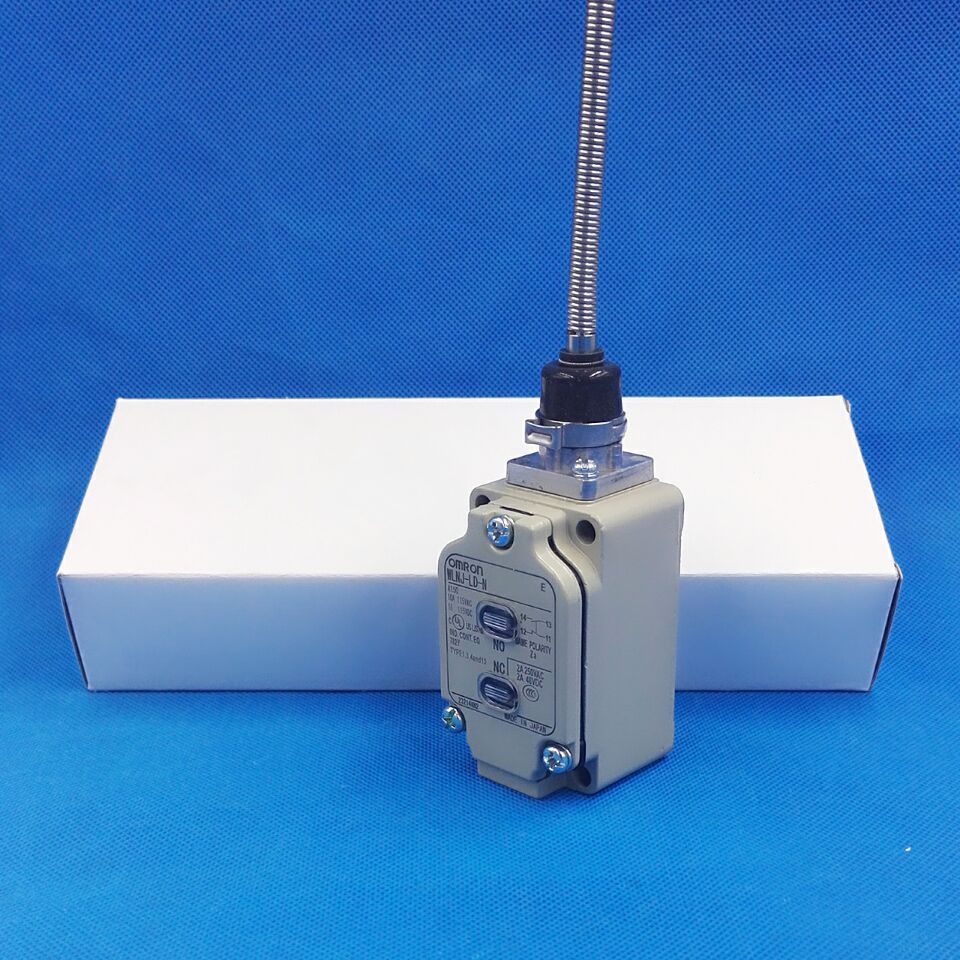

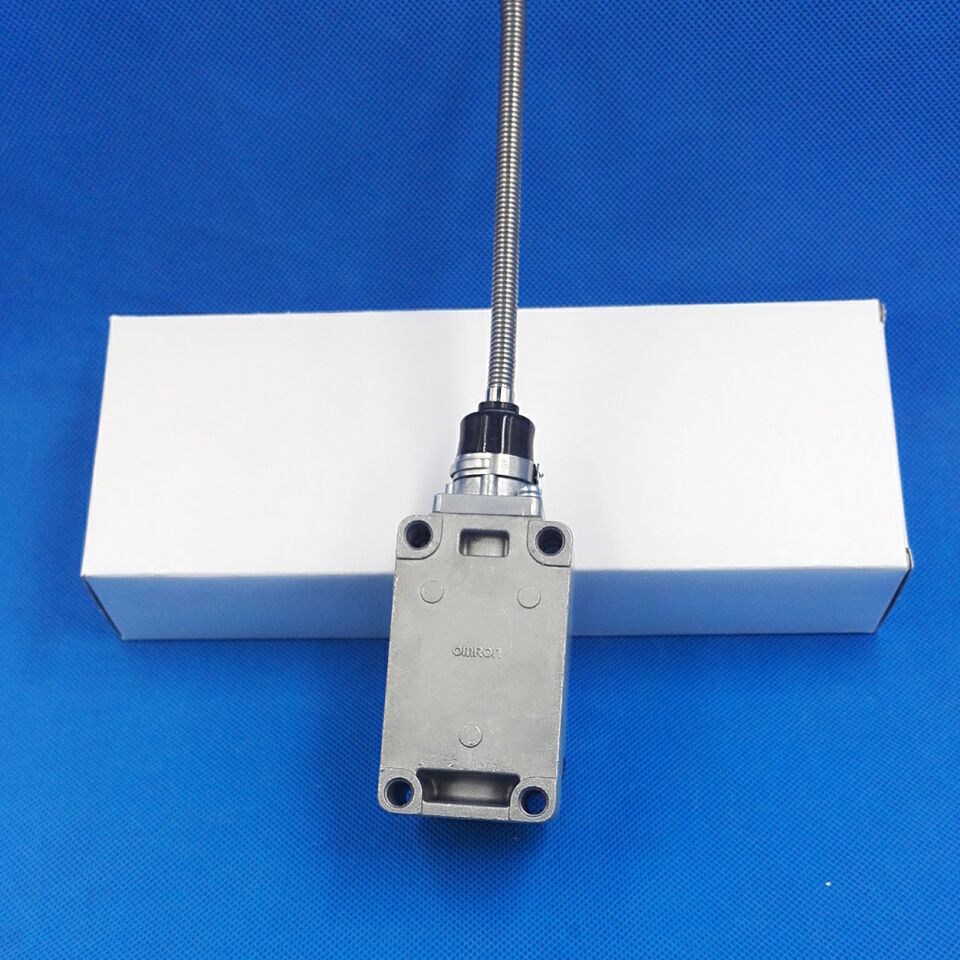

WLNJ-LD-N Omron limit switch

Category: .
Shape / structure Vertical vertical type
lifespan General form
Actuator Coil spring type
φ 6.5 stainless steel coil spring
Rated frequency 50/60 Hz
Contact configuration 1a1b
load Common load / Micro load shared
Switching ability (AC) / no inductive load Rated load: 3 A (NC) 1.5 A (NO)
Rated voltage: AC 250 V / resistance load: 10 A (NC) 10 A (NO) / lamp load: 2 A (NC) 1A (NO)
Rated voltage: AC 500 V / Resistance load: 10 A (NC) 10 A (NO) / Lamp load: 1.5 A (NC) 0.8 A (NO)
Switching capacity (AC) / inductive load Rated voltage: AC 125V / Inductive load: 10 A (NC) 10 A (NO) / Motor load: 5 A (NC) 2.5 A (NO)
Rated voltage: AC 250 V / Inductive load: 10 A (NC) 10 A (NO) / Motor load: 3 A (NC) 1.5 A (NO)
Rated voltage: AC 500 V / Inductive load: 3 A (NC) 3 A (NO) / Motor load: 1.5 A (NC) 0.8 A (NO)
Switching ability (DC) / no inductive load Rated load: 6 A (NC) 3 A (NO)
Rated voltage: DC 14 V / resistance load: 10 A (NC) 10 A (NO) / lamp load: 6 A NC) 3A (NO)
rated voltage: DC30V / resistive load: 6A (NC) 6A (NO ) / lamp load: 4A (NC) 3A (NO )
rated voltage: DC125V / resistive load: 0.8A (NC) 0.8A ( (NO) / Lamp load: 0.2 A (NC) 0.2 A (NO)
Rated voltage: DC 250 V / resistance load: 0.4 A (NC) 0.4 A (NO) / Lamp load: 0.1 A (NC)
Switching capacity (DC) / inductive load Rated voltage: DC14 V / Inductive load: 10 A (NC) 10 A (NO) / Motor load: 6 A (NC) 6 A (NO)
Rated voltage: DC 14 V / Inductive load: 10 A (NC) 10 A (NO) / Motor load: 6 A (NC) 6 A (NO)
Rated voltage: DC 30 V / Inductive load: 6 A (NC) 6 A (NO) / Motor load: 4 A (NC) 4 A (NO)
Rated voltage: DC 125 V / inductive load: 0.8 A (NC) 0.8 A Motor load: 0.2 A (NC) 0.2 A (NO)
Rated voltage: DC 250 V / Inductive load: 0.4 A (NC) 0.4 A (NO) / Motor load: 0.1 A (NC) 0.1 A (NO)
Allowable inrush current Normally closed (NC): 30 A
Always open (NO): 20 A
Operation indicator light LED (Operating lighting, switchable of non-operation time of lighting)
Voltage: AC / DC115V, AC / DC10 ~ 24V
leakage current: about 0.5mA, about 0.4mA
Conduit size G1 / 2
Ground terminal No ground terminal
Ambient temperature range At use: 80 ° C
max. Or less (Do not freeze)

Allowable operation frequency (mechanical) 120 times / min
Allowable operation frequency (electrical) 30 times / min
Contact resistance (Initial value) 25 mΩ or less (built-in switch only)
Insulation resistance 100 MΩ or more
(DC 500 V mega)
Withstand voltage Between
terminals with the same polarity : AC 1000 V 50/60 Hz 1 min Between each terminal and earth : AC 2200 V 50/60 Hz 1 min Between
each terminal and non-charging metal part: AC 2200 V 50/60 Hz 1 min
Durability (mechanical) 10 million times or more
(temperature and humidity condition: 5 to 35 ° C., 40 to 70% RH)
Durability (electrical) 750,000 times or more (AC 250
V 3A) (temperature and humidity condition: 5 to 35 ° C, 40 to 70% RH)
Impact resistance (durability) 1000 m / s ** 2 or more
Protective structure IP 67

Power required for operation (OF) Standard value Maximum 1.47 N
Movement to action (PT) Standard value 20 ± 10 mm
Operating characteristic condition Measure at actuator tip
