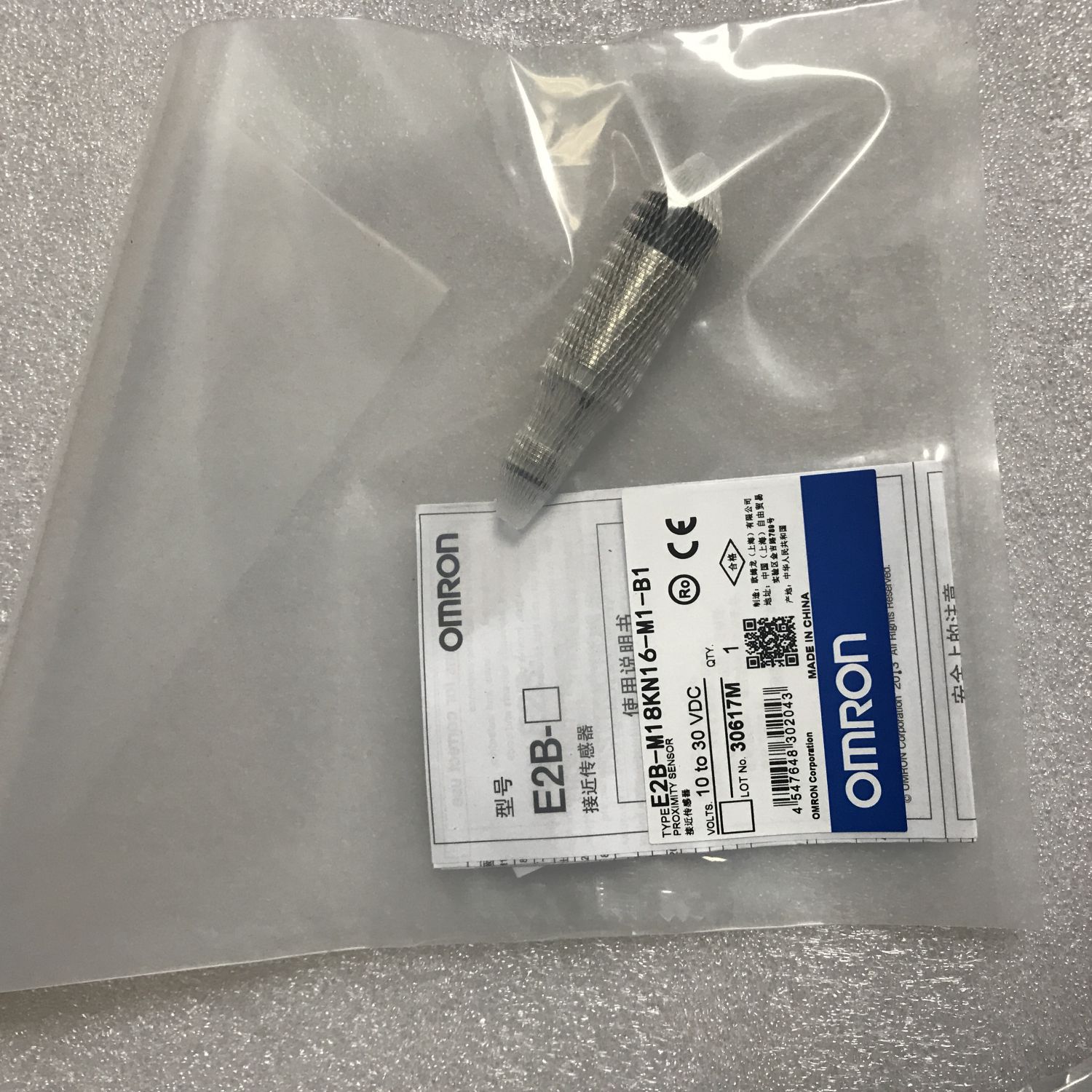

E2B-M18KN16-M1-B1 Omorn Proximity sensor
Warning: A non-numeric value encountered in /home/sundacn/public_html/wp-content/plugins/woocommerce/includes/abstracts/abstract-wc-product.php on line 818
Warning: A non-numeric value encountered in /home/sundacn/public_html/wp-content/plugins/woocommerce/includes/abstracts/abstract-wc-product.php on line 818
Warning: A non-numeric value encountered in /home/sundacn/public_html/wp-content/plugins/woocommerce/includes/abstracts/abstract-wc-product.php on line 818
Warning: sizeof(): Parameter must be an array or an object that implements Countable in /home/sundacn/public_html/wp-content/themes/academica_pro_child/woocommerce/single-product/meta.php on line 14
Warning: sizeof(): Parameter must be an array or an object that implements Countable in /home/sundacn/public_html/wp-content/themes/academica_pro_child/woocommerce/single-product/meta.php on line 15
Specifications
| Attribute | Value |
|---|---|
| Body Style | Barrel |
| Thread Size | M18 x 1 |
| Output Type | PNP-NO |
| Detection Range | 16 mm |
| Terminal Type | M12 – 4 Pin |
| Supply Voltage | 12 → 24 V dc |
| Length | 39mm |
| Maximum DC Voltage | 30V |
| Mounting Type | Non Flush |
| Switching Current | 200 mA |
| IP Rating | IP67 |
| Housing Material | Brass |
| Shielding | Unshielded |
| Minimum Operating Temperature | -25°C |
| Reverse Polarity Protection | Yes |
| Short Circuit Overload Protection | Yes |
| Maximum Switching Frequency | 400Hz |
| Maximum Operating Temperature | +70°C |
