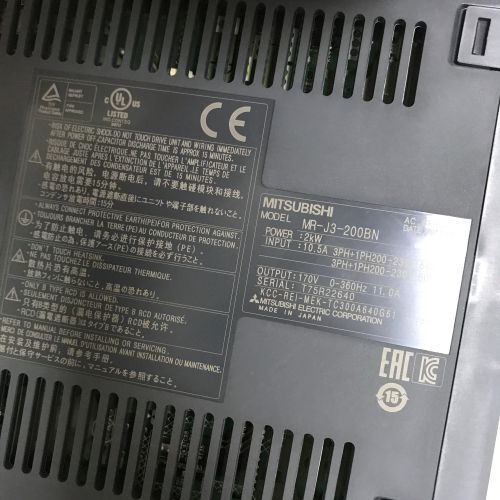

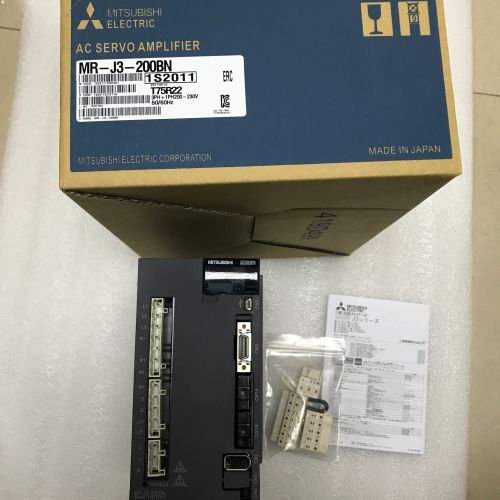

MR-J3-200BN Mitsubishi Amplifier

Category: .
Series name MELSERVO-J3 series
Command interface SSCNETⅢ compatible
Voltage class 200V
capacity [kW] Two
Servo amplifier model MR-J3-200BN
output Rated voltage Three-phase 170 VAC
Rated current [A] 11
Main circuit power input Voltage / frequency Three-phase 200 to 230 VAC / 50, 60 Hz
Rated current [A] 10.5
Allowable voltage fluctuation Three-phase 170 to 253 VAC
Allowable frequency fluctuation Within ± 5%
Control circuit power input Voltage / frequency Single-phase 200 to 230 VAC / 50, 60 Hz
Rated current [A] 0.2
Allowable voltage fluctuation Single-phase 170 to 253 VAC
Allowable frequency fluctuation Within ± 5%
power consumption [W] 30
Power supply for interface DC24V ± 10% (required current capacity: 0.15A)
Allowable regenerative power of regenerative resistor Built-in amplifier resistor [W] 100
When using standard accessories [W]
control method Sine wave PWM control / current control method
Dynamic brake Built-in
Protection function Overcurrent cutoff, regenerative overvoltage cutoff, overload cutoff (electronic thermal), servomotor overheat protection, detector error protection, regenerative error protection, undervoltage / instantaneous power failure protection, overspeed protection, excessive error protection
Structure (degree of protection) Strong cold, open (IP00)
Environmental condition Ambient temperature 0 to 55 ° C (No freezing), Storage: -20 to 65 ° C (No freezing)
Ambient humidity 90% RH or less (no condensation), storage: 90% RH or less (no condensation)
atmosphere Indoors (no direct sunlight), no corrosive gas, flammable gas, oil mist, dust
elevation 1000 m above sea level
Vibration resistance 5.9 m / s 2 or less, 10 ~ 55Hz (X, Y , Z each direction)
mass [kg] 2.1
About restrictions Since no restrictions are displayed when comparing specifications, see the specifications of each model.
