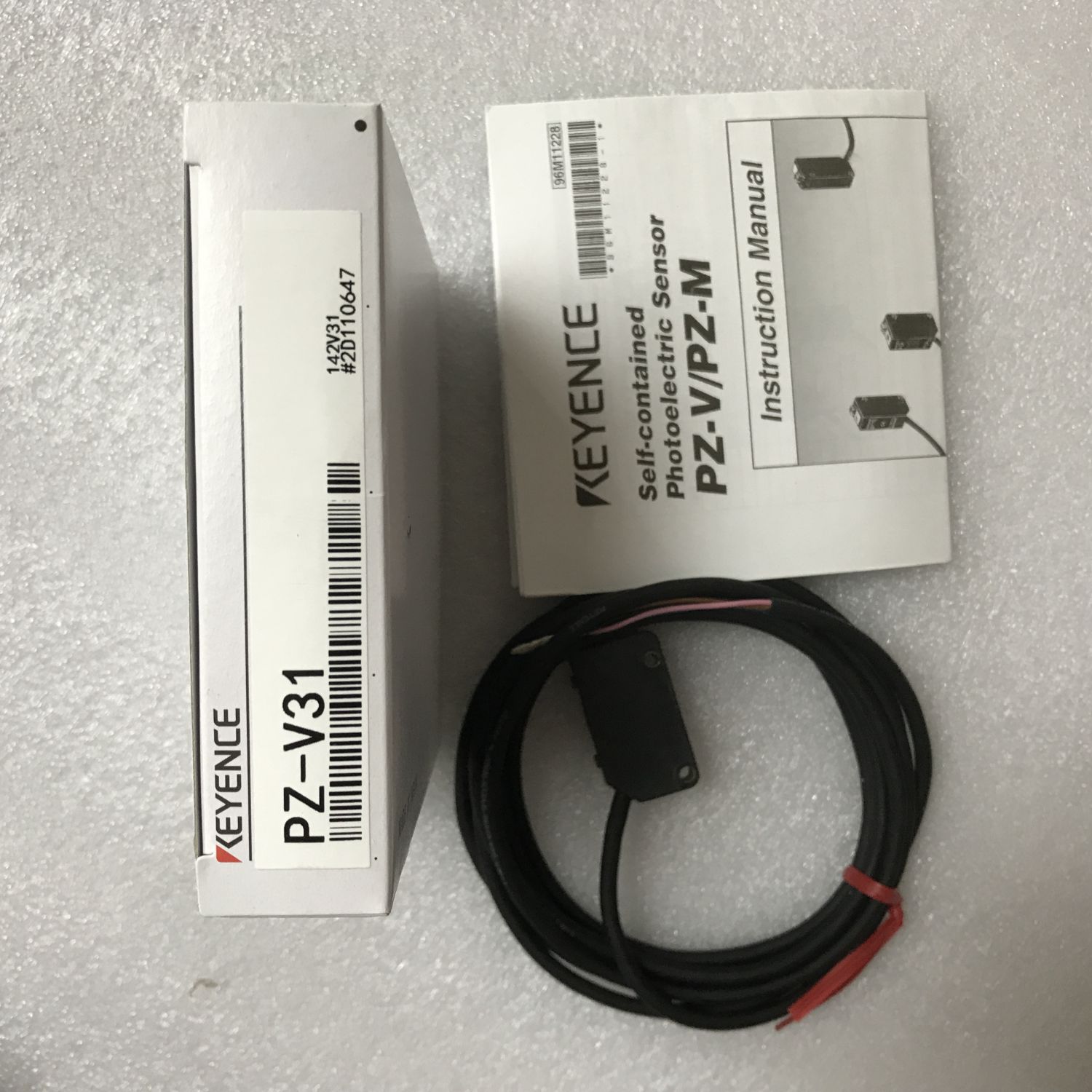

PZ-V31 keyence amplifier photoelectric sensor

Category: .
Model PZ-V31
Type Intelligent reflective
Output NPN
Detecting distance 5 to 300 mm0.20″ x 11.81″ (100 x 100 mm3.94″ x 3.94″white mat paper)*1
Setting distance 40 to 300 mm1.57″ to 11.81″ (100 x 100 mm3.94″ x 3.94″white mat paper)
Light source. Red LED
Sensitivity adjustment Automatic push button
Response time 1 ms max.
Operation mode LIGHT-ON/DARK-ON (switch-selectable)
Indicator lamp Output: orange LED, stable operation: green LED
Control output 100 mA (24 V) max., Residual voltage: 1 V max.
Digital monitor 7-segment, 3-digit red LED
Protection circuit Reversed polarity, overcurrent protection, surge absorber
Rating Power voltage 12 to 24 VDC ±10 %, Ripple (P-P) 10 % or less
Power consumption 37 mA max.
Environmental resistance Enclosure rating IP67
Ambient light Incandescent lamp: 5,000 lux max., Sunlight: 20,000 lux max.
Ambient temperature -20 to +55 °C -4 to 131 °F (No freezing)
Relative humidity 35 to 85 % RH (No condensation)
Vibration resistance 10 to 55 Hz, Double amplitude 1.5 mm 0.06″, 2 hours in each of the X, Y, and Z directions
Shock resistance 1,000 m/s2, 6 times in each of the X, Y, and Z directions
Case material Glass-fiber reinforced plastic
Weight Approx. 55 g (including 2-m 6.6‘ cable)
*1 The detecting distance is obtained with the maximum sensitivity.
