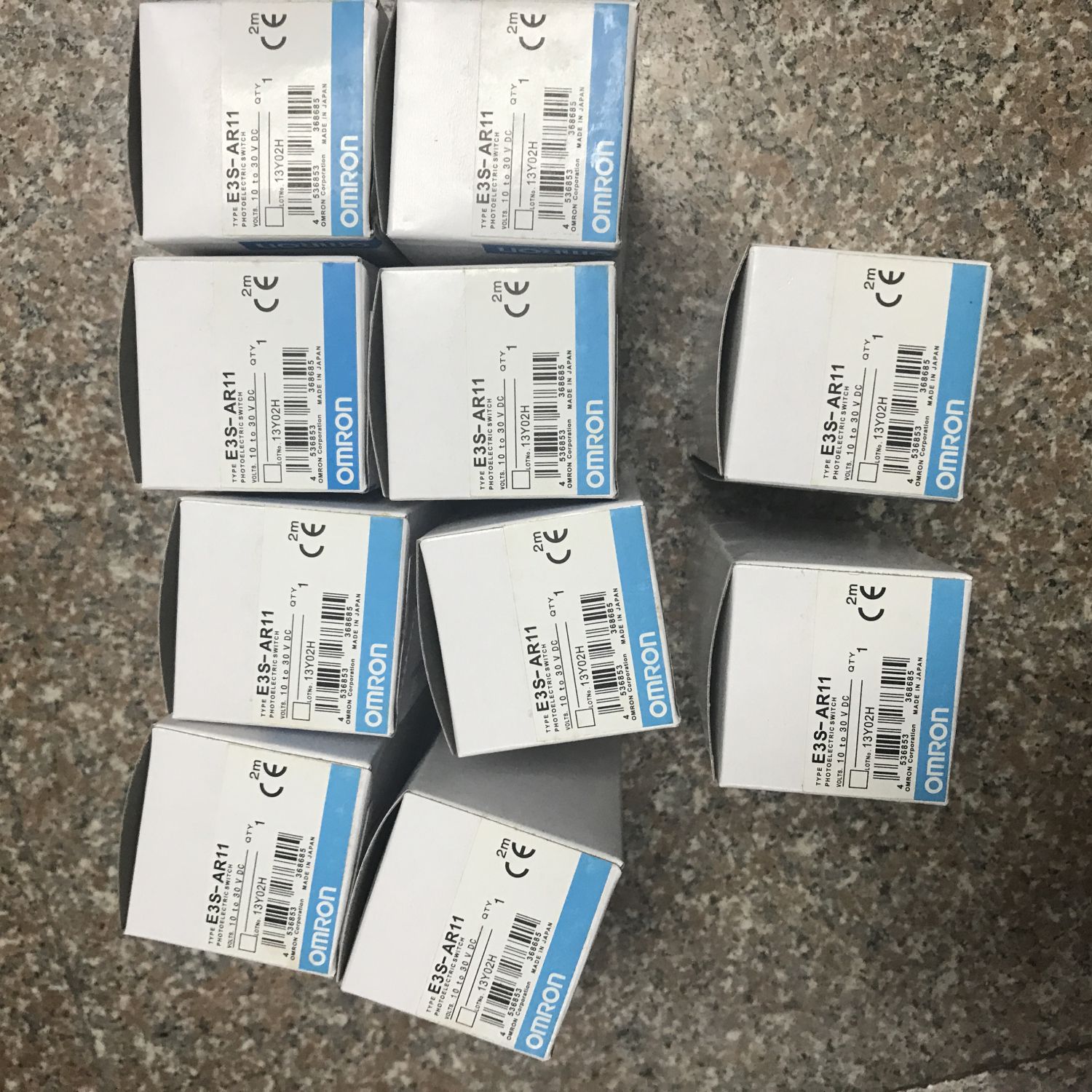

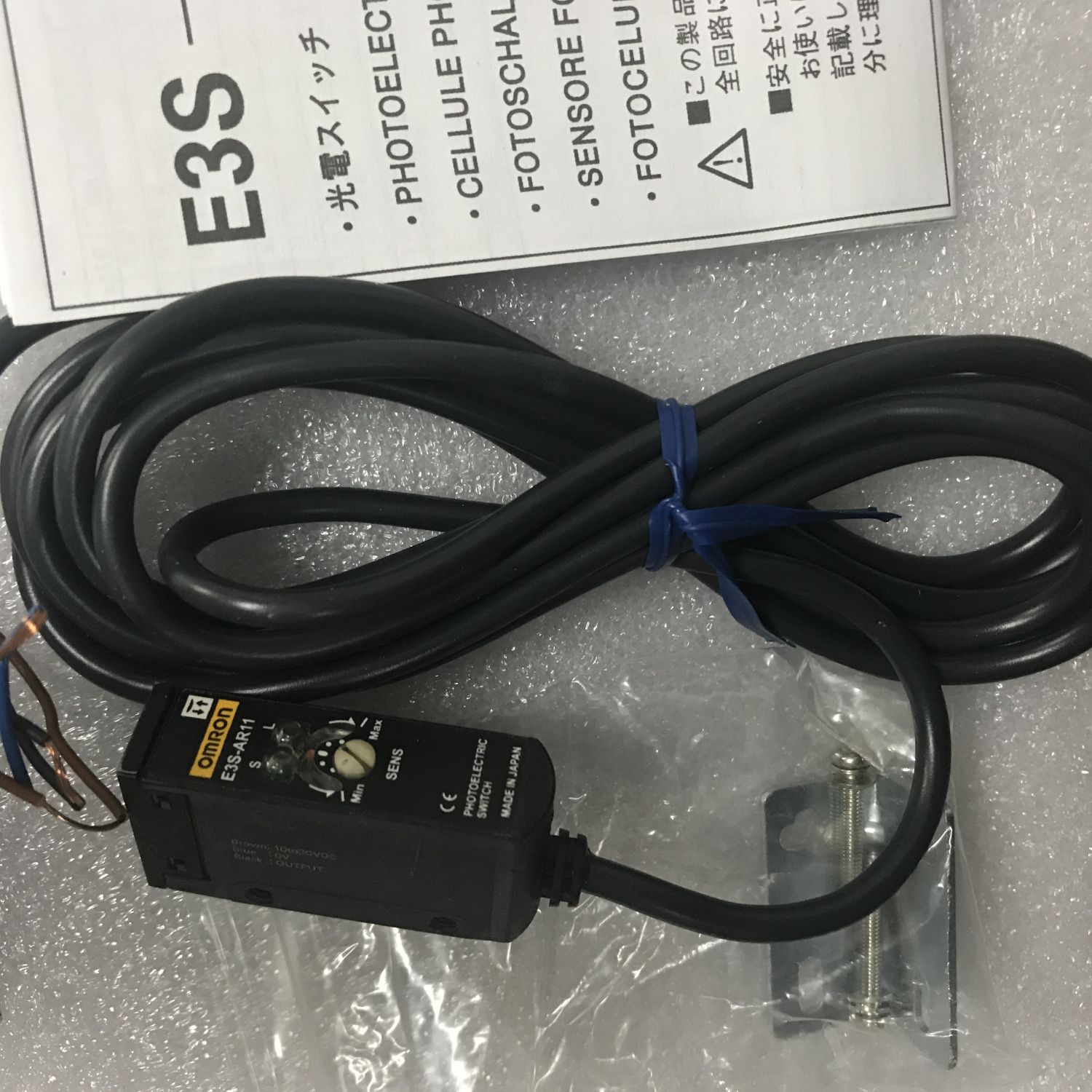

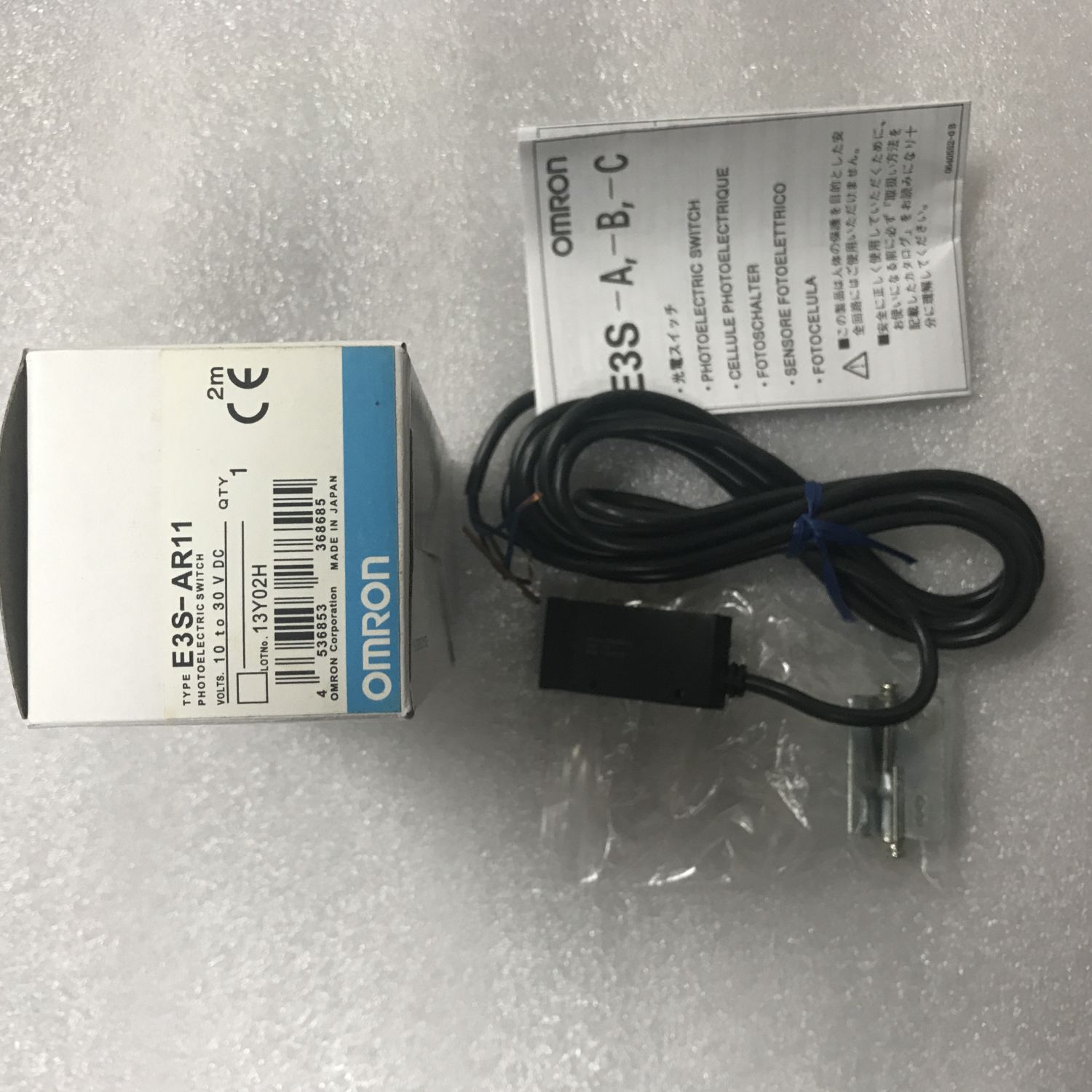

E3S-AR11 omron photoelectric switch
| shape | Square |
|---|---|
| Detection method | Retro-reflective type (with MSR function) |
| Detection distance | Using E39-R1 reflector: 0.1-2m |
| Standard sensing object | Opaque body of φ75 mm or more |
| Directional angle | 3 ~ 10° |
| light source | Red light emitting diode (700 nm) |
| Power-supply voltage | 10 to 30 VDC, including 10% ripple (pp) |
| Current consumption | 30 mA or less |
| Control output | NPN open collector DC 30V or less 100mA or less Residual voltage: 1V or less |
| action mode | Light-ON/Shadow-ON switching type |
| Protection circuit | Output short circuit protection, power supply reverse connection protection, mutual interference prevention function |
| Response time | Operation/Return: 0.5 ms or less |
| Sensitivity adjustment | 2-turn endless volume (with indicator) |
| Ambient illuminance | Incandescent lamp: 5000 lx or less, sunlight: 10000 lx or less |
| Operating temperature limit | -25 to 55°C (no freezing or condensation) |
| Ambient storage temperature | -40 to 70°C (no freezing or condensation) |
| Ambient humidity range | When used: 35 to 85% (no condensation) Storage: 35 to 95% (no condensation) |
| Insulation resistance | 20 MΩ or more (at 500 VDC megger) |
| Withstand voltage | AC1000V 50/60Hz 1min |
| Vibration resistance | Durability: 10-55Hz, double amplitude 1.5mm X, Y, Z direction 2h each |
| Shock resistance | Durability: 500m/s**2 3 times in each X, Y, Z direction |
| Protective structure | IEC: IP67 NEMA 4X (for indoor use only) |
| Connection method | Cord drawer type (cord length 2m) |
| Indicator light | Light indicator (red), stability indicator (green) |
| mass | Package: Approx. 110 g |
| accessories | Instruction manual, mounting bracket, driver for sensitivity adjustment, volume cap, reflector |
| Material | Case: Polybutylene terephthalate Lens: Modified polyarylate Mounting bracket: Stainless steel (SUS304) |
