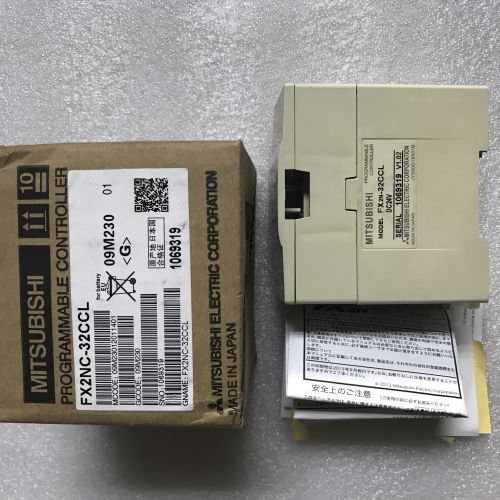

FX2N-32CCL Mitsubishi A series plc
| Ambient temperature | 0 ～ 55 ℃ ・ ・ ・ Operating -25 ～ 75 ℃ ・ ・ ・ Storage | ||
| Relative humidity | 5 to 95% RH (no condensation) ······· Operating | ||
| Vibration resistance | When mounting DIN rail | Frequency: 10-57Hz | Single amplitude: 0.035mm 10 times in each of X, Y, Z directions (total 80 minutes each) |
| Frequency: 57-150Hz | Acceleration: 4.9m / s 2 10 times in each of X, Y, Z directions (total 80 minutes each) | ||
| Direct mounting | Frequency: 10-57Hz | Single amplitude: 0.075mm 10 times in each of X, Y, Z directions (total 80 minutes each) | |
| Frequency: 57-150Hz | Acceleration: 9.8m / s 2 10 times in each of X, Y, Z directions (total 80 minutes each) | ||
| Shock resistance | 147m / s 2 , working time 11ms, sine half-wave pulse 3 times each in X, Y, Z directions | ||
| Noise resistance | Using a noise simulator with a noise voltage of 1,000 Vp-p, a noise width of 1 μs, a rise of 1 ns, and a period of 30 to 100 Hz | ||
| Withstand voltage | Between all external terminals and ground terminal: 500 VAC for 1 minute | ||
| Insulation resistance | Between external terminals and ground terminal: 5MΩ or more with DC500V insulation resistance meter | ||
| ground | Class D grounding (Grounding resistance: 100Ω or less) <Cannot be shared with high-voltage systems> Use a dedicated or shared ground for grounding. |
||
| Usage atmosphere | There is no corrosive or flammable gas, and the conductive dust (dust) is not severe. | ||
| Usage altitude | Cannot be used in an environment pressurized to 2000m or less and atmospheric pressure. There is a possibility of failure. | ||
