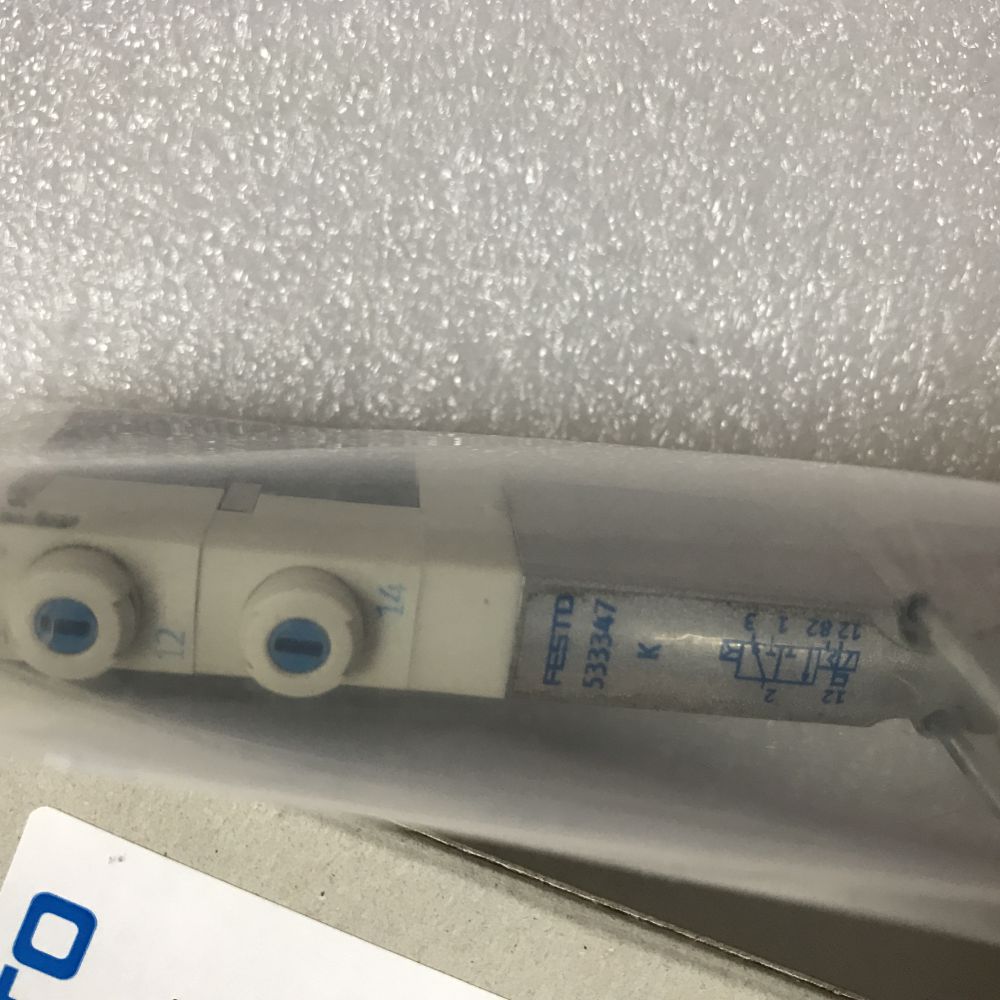

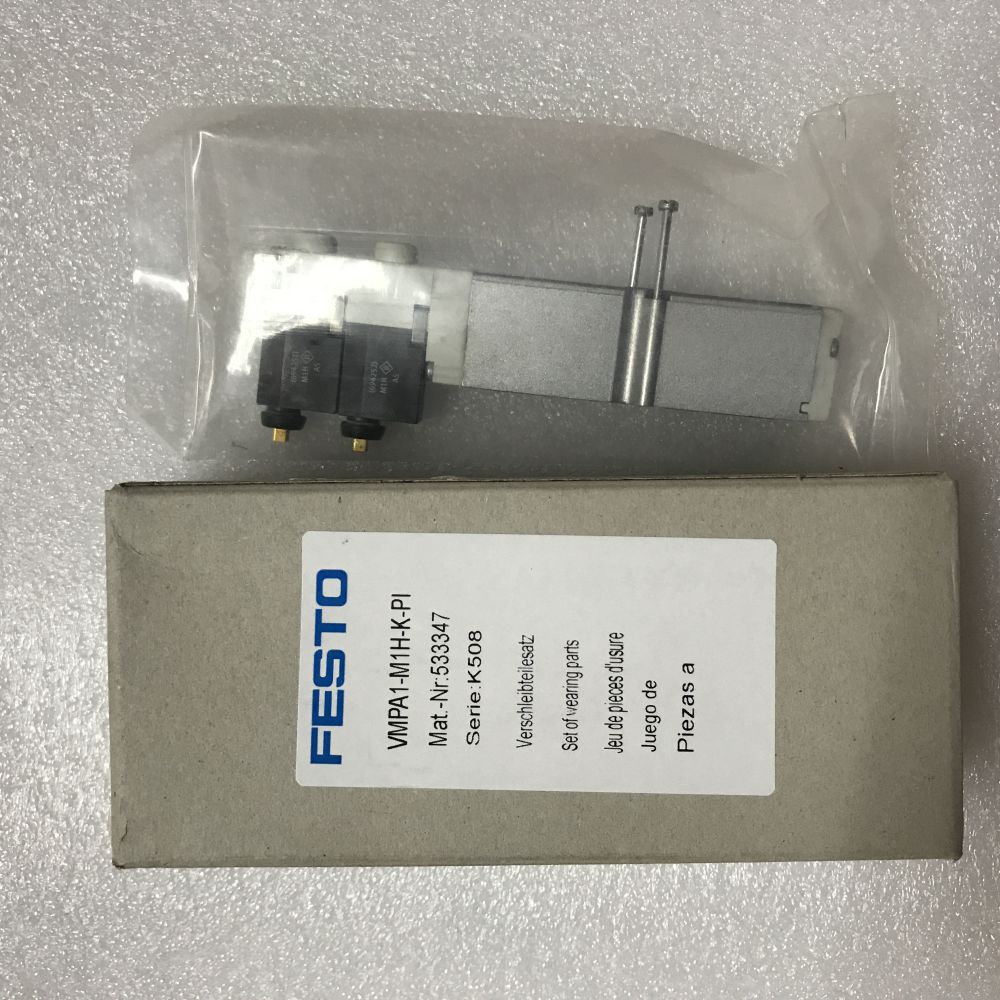

VMPA1-M1H-K-PI Festo Solenoid Valve
| Valve function | 2×3/2 closed monostable |
| Actuation type | Electrical |
| Valve size [mm] | 10 |
| Normal nominal flow [l/min] | 230 |
| Operating pressure [bar] | 3 to 10 |
| Construction set up | Piston pusher |
| Reset mode | Pneumatic spring |
| Protection category | IP65 acc. to IEC 60529 |
| Permission | c UL us – Recognized (OL) |
| Sealing principle | Soft |
| installation position | arbitrary |
| Hand assist actuation | Ratcheting tentative |
| Control type | pilot operated |
| Flow direction | Not reversible |
| Überdeckung | positive Überdeckung |
| Signal condition display | yes |
| Control pressure [bar] | 3 to 8 |
| Vacuum capable | no |
| Normal nominal flow with QS-6 [l/min] | 230 |
| Shifting time off [ms] | 20 |
| Shifting time on [ms] | 10 |
| Max. positive test impulse at 0 signal [Mikrosekun] | 400 |
| Max. negative test impulse for 1 signal [Mikrosekun] | 200 |
| Permitted voltage oscillations | ± 25 % |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Information about operating and control medium | Oiled operation possible (required in further operations) |
| Oscillation strength | Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27 |
| Corrosion resistant class KBK | 1 – low corrosion stress |
| Bearing temperature [°C] | -20 to 40 |
| Medium temperature [°C] | -5 to 50 |
| Relative humidity | max. 90 % at 40 °C |
| ambient temperature [°C] | -5 to 50 |
| Max. tightening torque Valve fastening [Nm] | 0,25 |
| Product weight [g] | 56 |
| Fastening type | With throughway bores |
| Material information | RoHs compliant |
| Seals material |  NBR |
| Housing material | Aluminium die casting |
