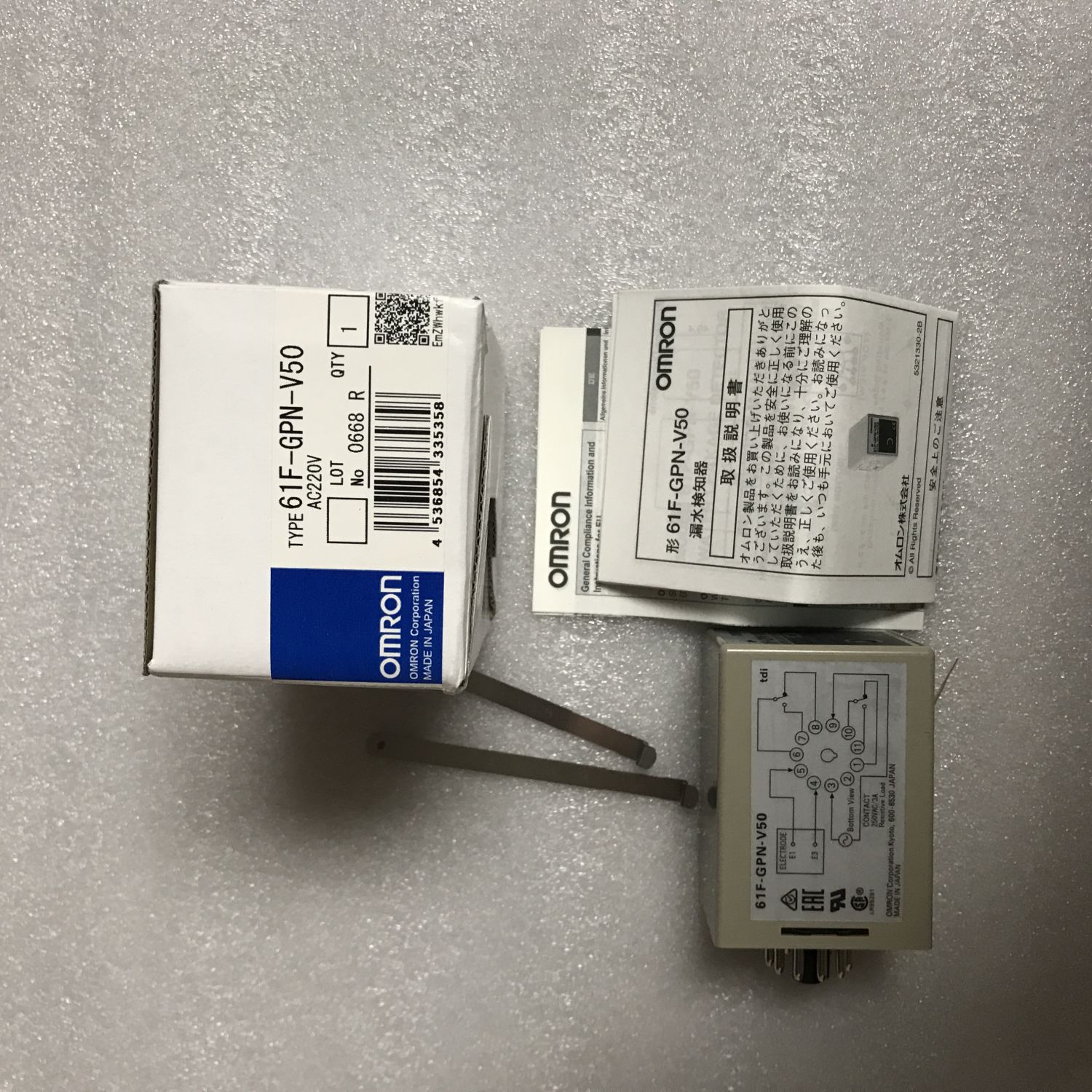

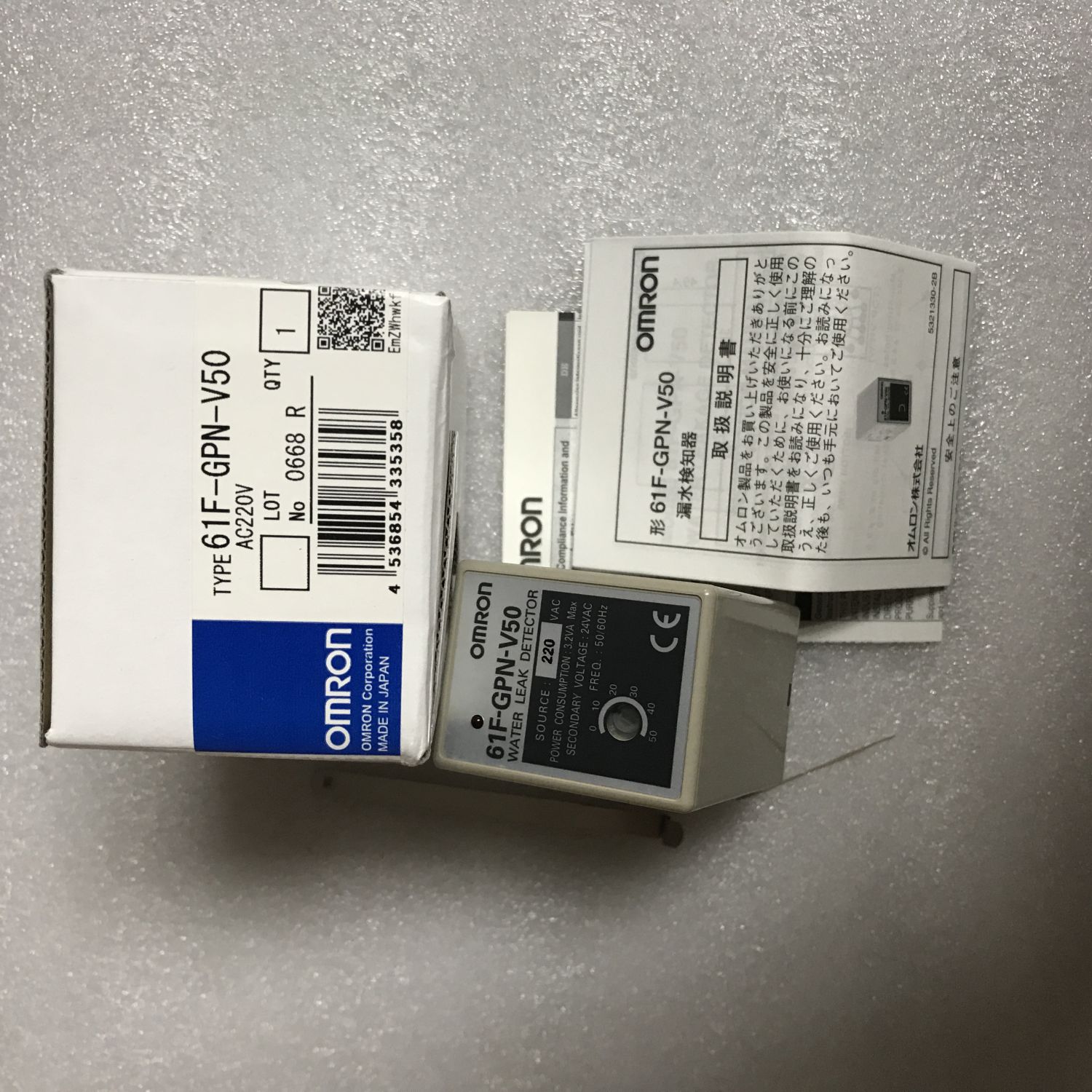

61F-GPN-V50 Omron Water Leak Detector

Category: .
Item Water Leak Detector
Model 61F-GPN-V50
Supply voltage 24, 110, 120, 220, 230, 240 VAC
Operating voltage range 85% to 110% of rated voltage
Interelectrode voltage 24 VAC
Operating current 3 mA (AC) max.
Power consumption 3.2 VA max.
Sensitivity Variable (0 to 50 kΩ)
Sensitivity error Scale 0: 0 to 10 kΩ *
Scale 50: 50 ±10 kΩ
Contact ratings 3 A 250 VAC, DPDT cosφ=1
1 A 250 VAC, DPDT cosφ=0.4
Indicator Provided (Operation indicator)
Alarm buzzer Not provided
Test switch Not provided
Ambient temperature -10 to 50°C
Ambient humidity 45% to 85%
Accessories Hold-down clip PFC-N8
Approved standards UL508
CSA C22.2 No.14
EN61010-1
EN61326-1
Industrial electromagnetic environment
