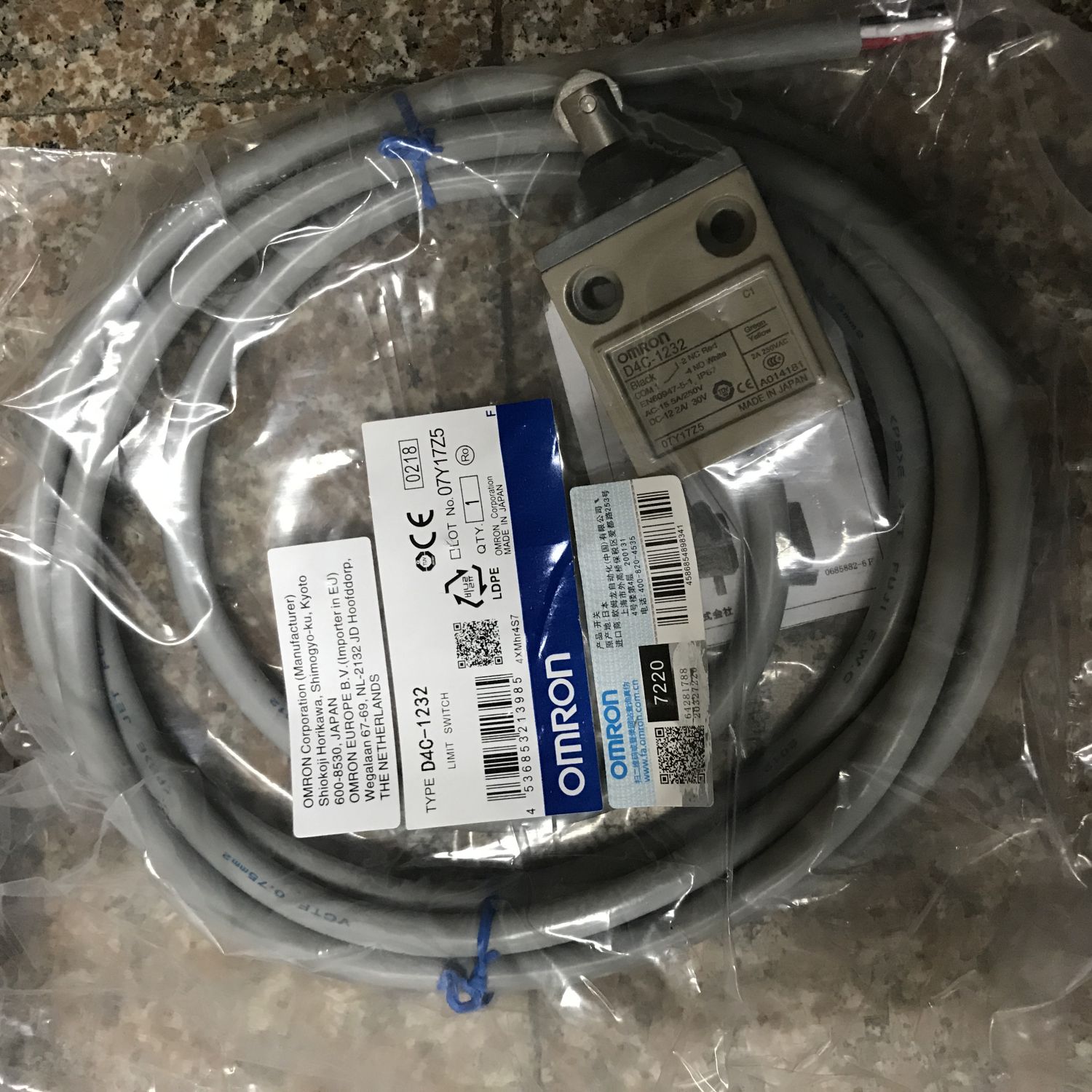

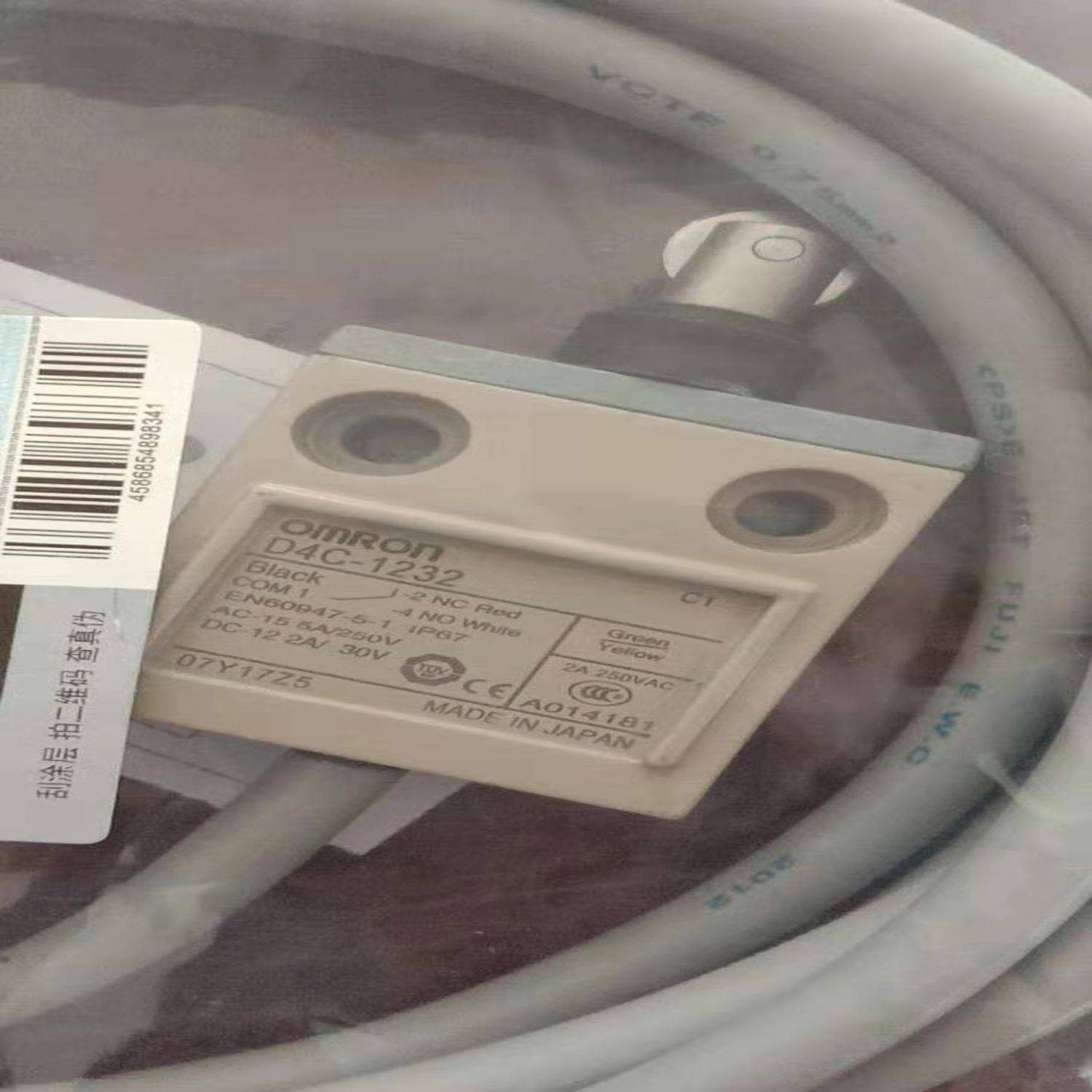

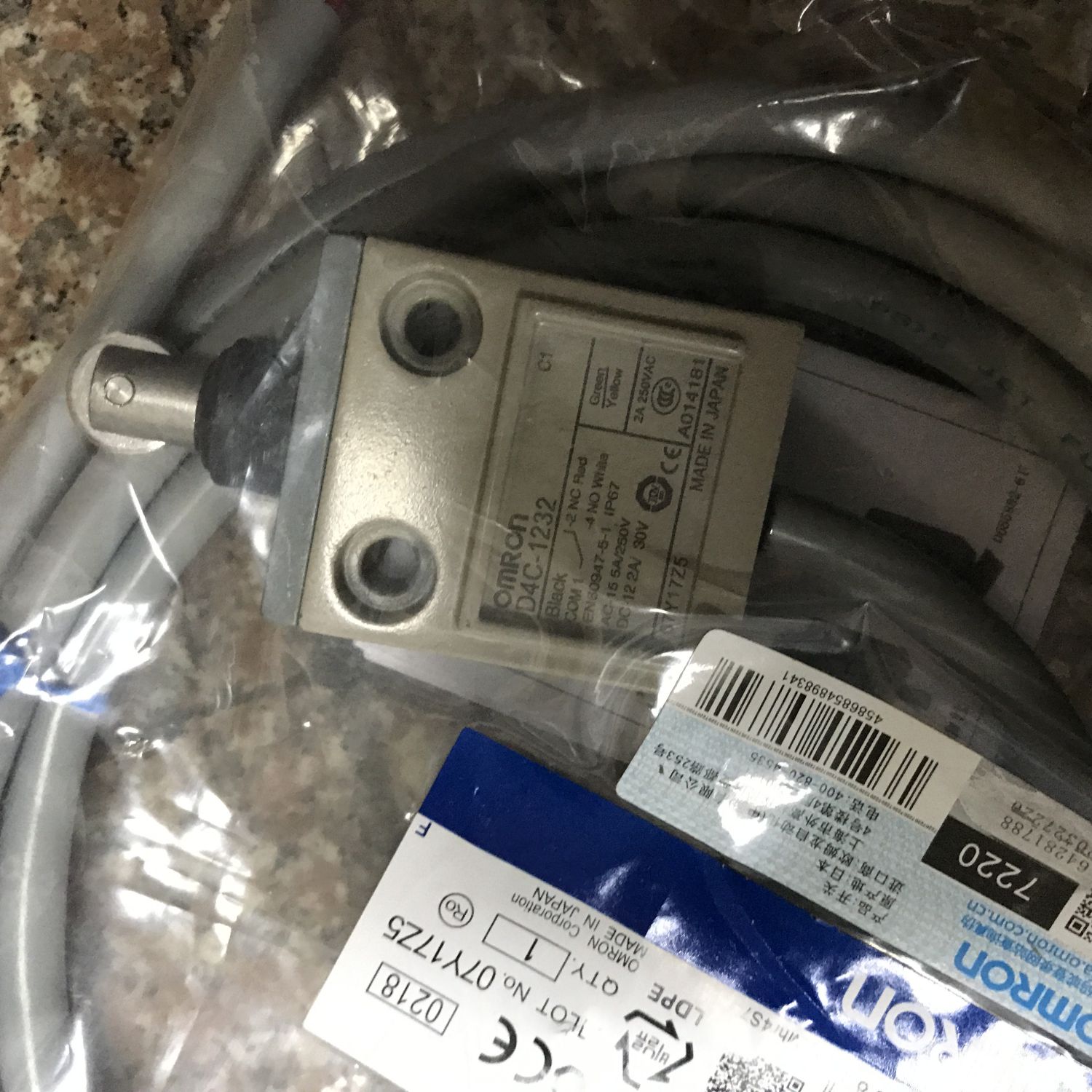

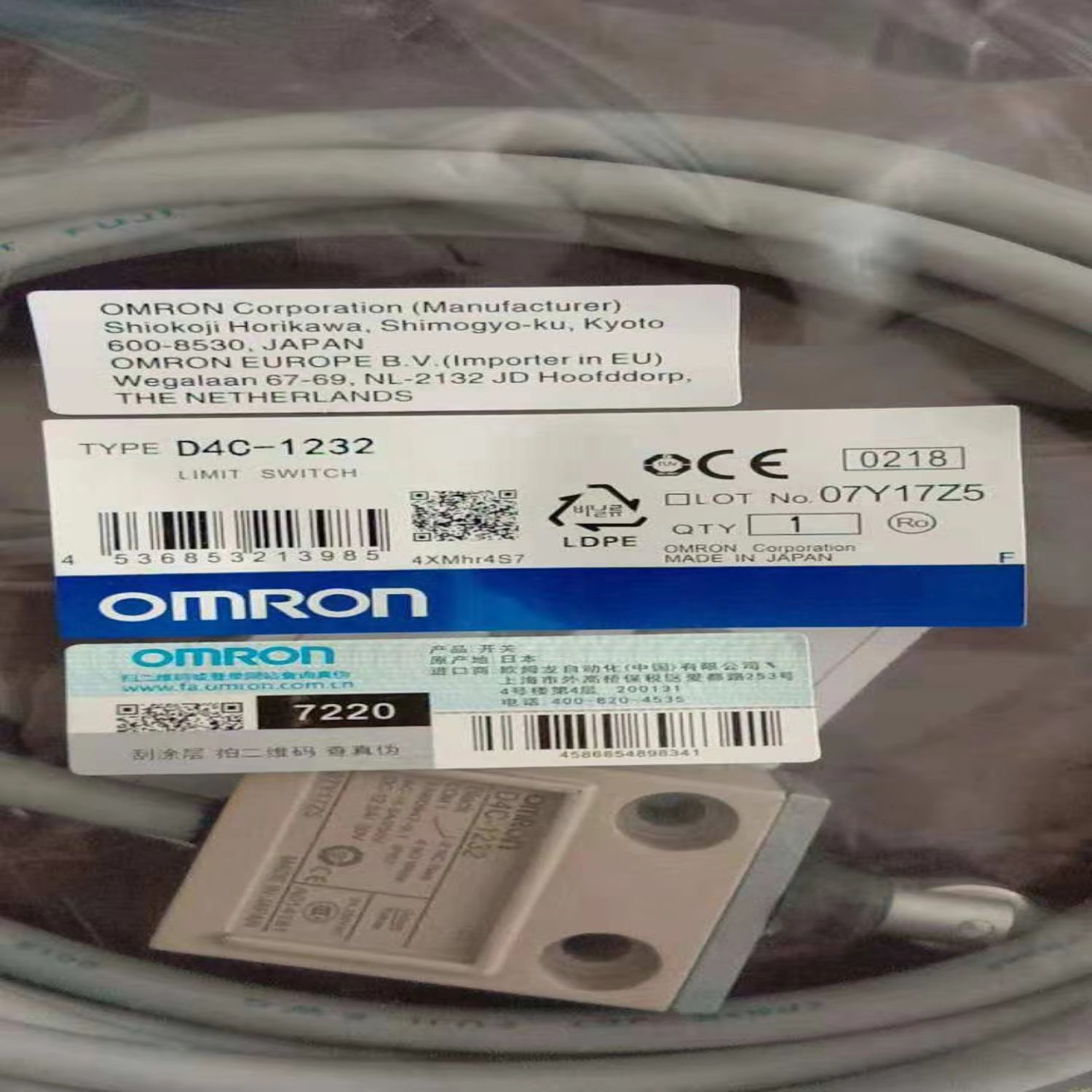

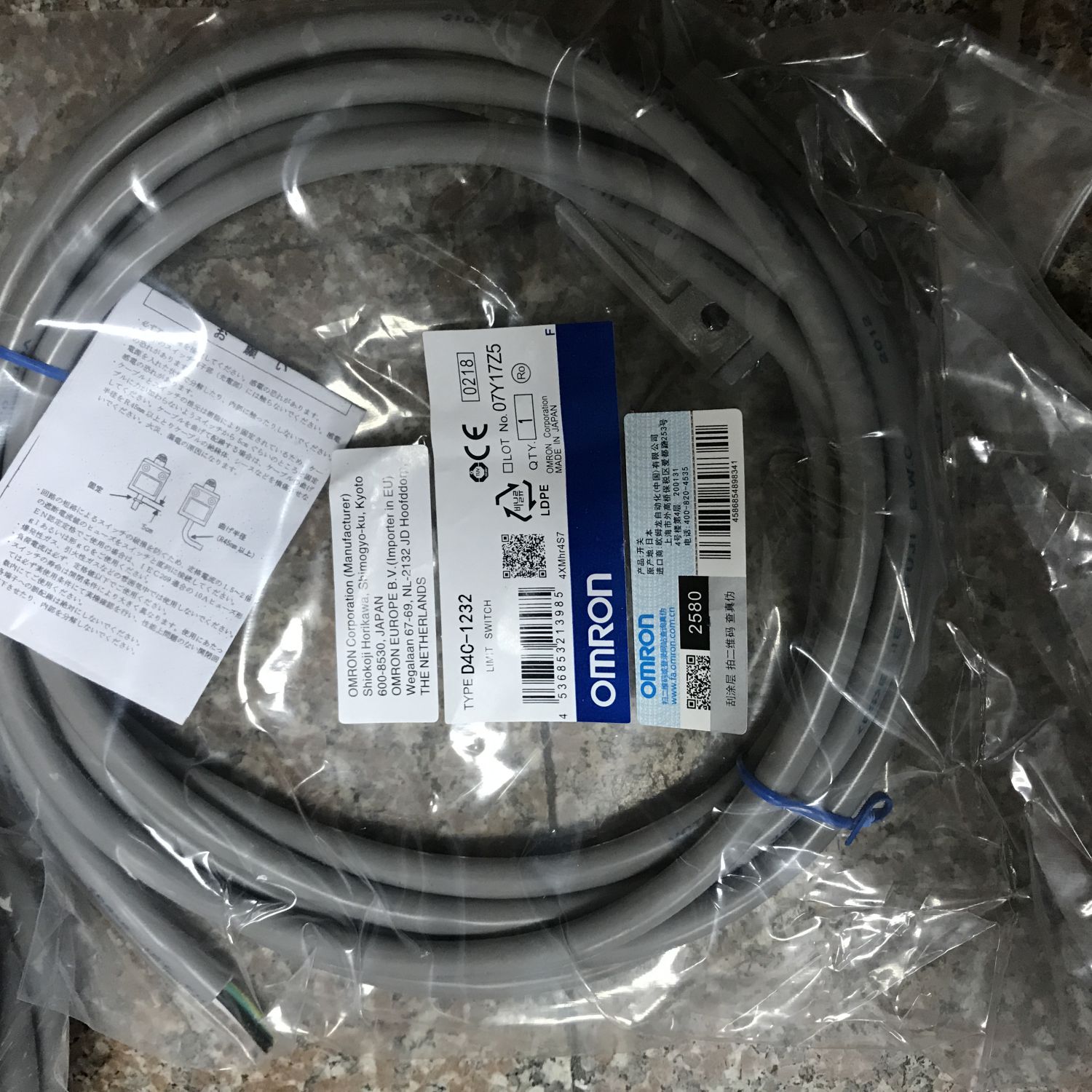

D4C-1232 Omron Enclosed Switch

Category: .

Shape/Structure General-purpose Limit switches
ctuator Sealed roller plunger 12 dia. x 4.4
Sintered stainless steel roller
Electrical ratings 5 A at 250 VAC/ 4 A at 30 VDC
Frequency 50/60 Hz
Contact form SPDT
Load General load
Ratings (AC): Non-Inductive load Resistive load: 5 A at 125 VAC/5 A at 250 VAC
Lamp load (NC): 1.5 A at 125 VAC/1 A at 250 VAC
Lamp load (NO): 7 A at 125 VAC/0.5 A at 250 VAC
Inductive load: 3 A at 125 VAC/2 A at 250 VAC
Motor load (NC): 2.5 A at 125 VAC/1.5 A at 250 VAC
Motor load (NO): 1.3 A at 125 VAC/0.8 A at 250 VAC
Ratings (DC): Non-Inductive load Resistive load: 5 A at 8 VDC/5 A at 14 VDC/4 A at 30 VDC/0.4 A at 125 VDC/0.2 A at 250 VDC
Lamp load: 2 A at 8 VDC/2 A at 14 VDC/2 A at 30 VDC/0.05 A at 125 VDC/0.03 A at 250 VDC
Inductive load (NC): 5 A at 8 VDC/4 A at 14 VDC/3 A at 30 VDC/0.4 A at 125 VDC/0.2 A at 250 VDC
Inductive load (NO): 4 A at 8 VDC/4 A at 14 VDC/3 A at 30 VDC/0.4 A at 125 VDC/0.2 A at 250 VDC
Motor load: 3 A at 8 VDC/3 A at 14 VDC/3 A at 30 VDC/0.05 A at 125 VDC/0.03 A at 250 VDC
Inrush current NC: 20 A max.
NO: 10 A max.
Earth terminal With earth wire
Cable specifications VCTF oil-resistant cable, 4 cores, 3 m
Nominal sectional area: 0.75 mm**2
Diameter: 7.6 dia.
Ambient temperature Operating: -10 to 70 ℃ (with no icing)
Ambient humidity 35 to 95% RH

Permissible operating speed 0.1 mm/s to 0.5 m/s
Permissible operating frequency Electrical: 30 operations / 1 minute max.
Mechanical: 120 operations / 1 minute max.
Contact resistance (Initial value) 300 mΩ max.
Insulation resistance 100 MΩ min. (at 500 VDC)
Dielectric strength Between each terminal of the same polarities: 1,000 VAC 50/60 Hz 1 min
Between live-metallic part and ground: 1,500 VAC 50/60 Hz 1 min
Between each terminal and non-live-metallic part: 1,500 VAC 50/60 Hz 1 min
Impulse withstand voltage Between live-metallic part and ground: 2.5 kV
Between each terminal and non-live-metallic part: 2.5 kV
Durability Electrical: 200,000 operations min. (5 A at 125 VAC)
Mechanical: 10 million operations min.
Vibration resistance Malfunction: 10 to 55 Hz, 1.5 mm double amplitude
Shock resistance Destruction: 1,000 m/s**2 max.
Malfunction: 500 m/s**2 max.
Pollution degree 3 (EN60947-5-1)
Degree of protection IP67
Classification of protection against electric shock Class I (with earth wire)

Operating Force (OF) Standard value 17.65 N max.
Release Force (RF) Standard value 4.41 N min.
Pre-Travel (PT) Standard value 1.8 mm max.
Movement Differential (MD) Standard value 0.2 mm max.
Over-Travel (OT) Standard value 3 mm min.
Operating Position (OP) Standard value 34.3±1 mm
Total Travel (TT) Reference value 5 mm
