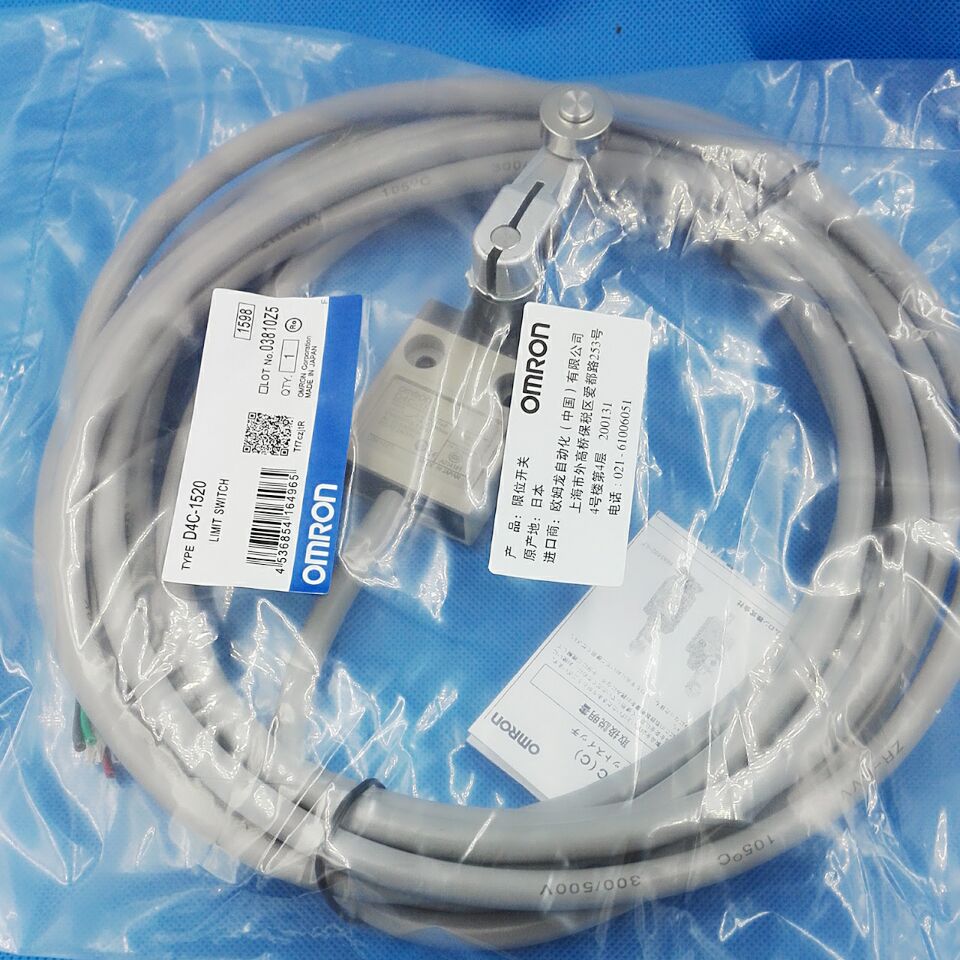

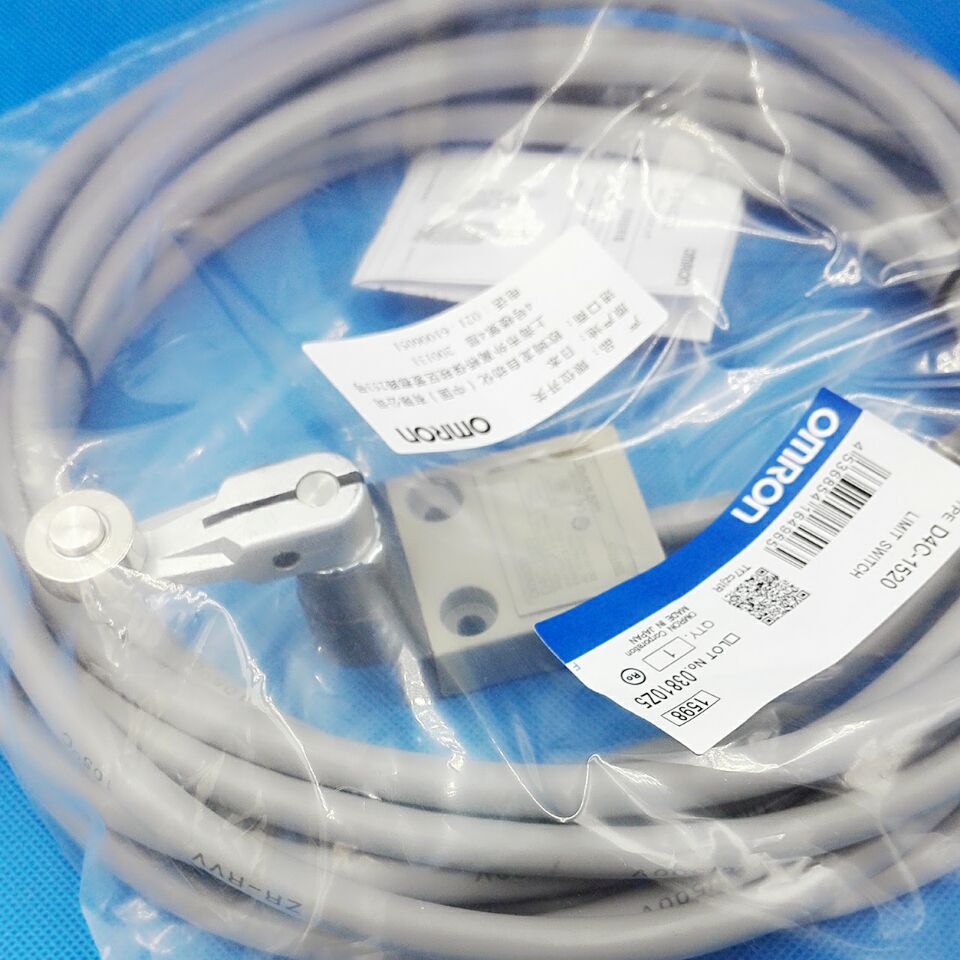

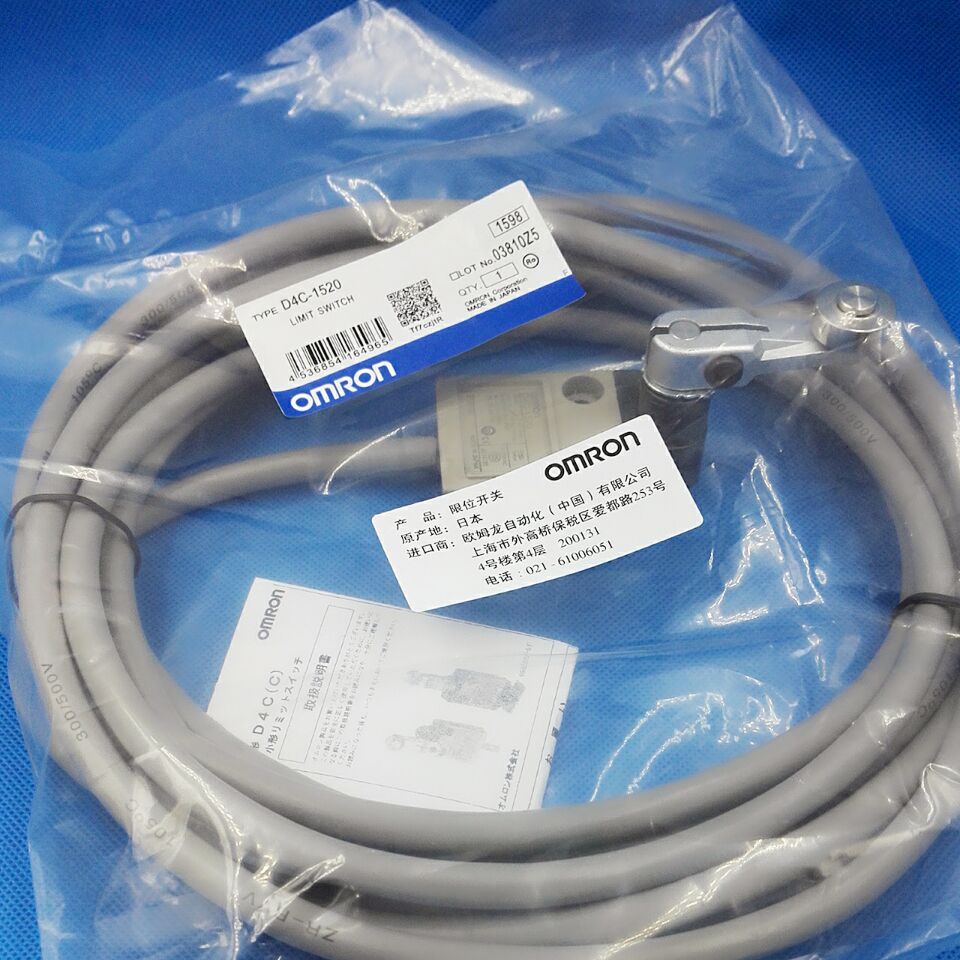

D4C-1520 Omron limit switch

Category: .
Shape / structure Vertical vertical type
lifespan General form
Actuator Roller and lever
type φ 17.5 × 7 stainless steel sintered roller R 38
Electric rating AC 250 V 5 A DC 30 V 4 A
Rated frequency 50/60 Hz
Contact configuration 1c
load General load
Switching ability (AC) / no inductive load Rated load: 1.5 A (NC) 0.7 A (NO) Rated voltage: AC 250 V / resistance load: 5 A (NC) 5 A (NO) / lamp
load: 5 A (NC) 1A (NC) 0.5 A (NO)
Switching capacity (AC) / inductive load Rated voltage: AC 125V / Inductive load: 3A (NC) 3A (NO) / Motor load: 2.5A (NC) 1.3A (NO)
Rated voltage: AC 250V / Inductive load: 2A (NC) 2A (NO) 1.5 A (NC) 0.8 A (NO)
Switching ability (DC) / no inductive load Rated load: 2A (NC) 2A (NO)
Rated voltage: DC 14 V / resistance load: 5 A (NC) 5 A (NO) / lamp load: 2 A NC) 2A (NO)
rated voltage: DC30V / resistive load: 4A (NC) 4A (NO ) / lamp load: 2A (NC) 2A (NO )
rated voltage: DC125V / resistive load: 0.4A (NC) 0.4A ( (NO) / lamp load: 0.05 A (NC) 0.05 A (NO)
Rated voltage: DC 250 V / resistance load: 0.2 A (NC) 0.2 A (NO) / lamp load: 0.03 A (NC)
Switching capacity (DC) / inductive load Voltage rating: 4 A (NC) 4 A (NC) 4 A (NO) / Motor load: 3 A (NO) Rated voltage: DC 8 V / Inductive load: 5
A (NC) 4 A NC 3A (NO)
Rated voltage: DC
125 V / Inductive load: 0.4 A (NC) 0.4 A ( NO) Rated voltage: DC 30 V / Inductive load: 3 A (NC) (NO) / Motor load: 0.05 A (NC) 0.05 A (NO)
Rated voltage: DC 250 V / Inductive load: 0.2 A (NC) 0.2 A (NO) / Motor load: 0.03 A (NC)
Allowable inrush current Normally closed circuit (NC): 20 A
Always open circuit (NO): 10 A
Protection circuit Electric shock protection class: Class I (with ground wire)
Short circuit protection device: 10 A Fuse type gI or gG (IEC 60269)
Ground terminal With ground wire
Cable specification VCTF 5 m
Ambient temperature range When used: -10 to 70 ℃
(However, do not freeze)
Ambient humidity range When used: 35 to 95% RH
(with no condensation)

Allowable operating speed 1 mm / s to 1 m / s
Allowable operation frequency (mechanical) 120 times / min or less
Allowable operation frequency (electrical) 30 times / minute or less
Contact resistance (Initial value) 400 mΩ or less
Insulation resistance 100 MΩ or more
(DC 500 V Mega)
Withstand voltage Between terminals with the same polarity: AC 1000 V 50/60 Hz 1 min Between
charging metal part and earth: AC 1500 V 50/60 Hz 1 min Between
each terminal and non-charging metal part: AC 1500 V 50/60 Hz 1 min
Impulse withstand voltage Between charging metal part and ground: 2.5 kV Between
each terminal and non-charging metal part: 2.5 kV
Durability (mechanical) 10 million times or more
(temperature and humidity condition: 5 to 35 ° C., 40 to 70% RH)
Durability (electrical) 200,000 cycles or more (AC 125 V 5 A)
(temperature, humidity condition: 5 to 35 ° C., 40 to 70% RH)
Vibration proof (malfunction) 10 to 55 Hz Double amplitude 1.5 mm
Impact resistance (durability) Up to 1000 m / s ** 2
Impact resistance (malfunction) Maximum 500 m / s ** 2
Pollution degree 3 (EN 60947-5-1)
Protective structure IP 67

Power required for operation (OF) Standard value Maximum 5.69 N
The power of return (RF) Standard value Minimum 1.47 N
Movement to action (PT) Standard value Maximum 25 °
Motion after movement (OT) Standard value Minimum 40 °
Hysteresis movement (MD) Standard value Maximum 3 °
