D4MC-2000D4MC-2000 Omron limit switchD4MC-2000

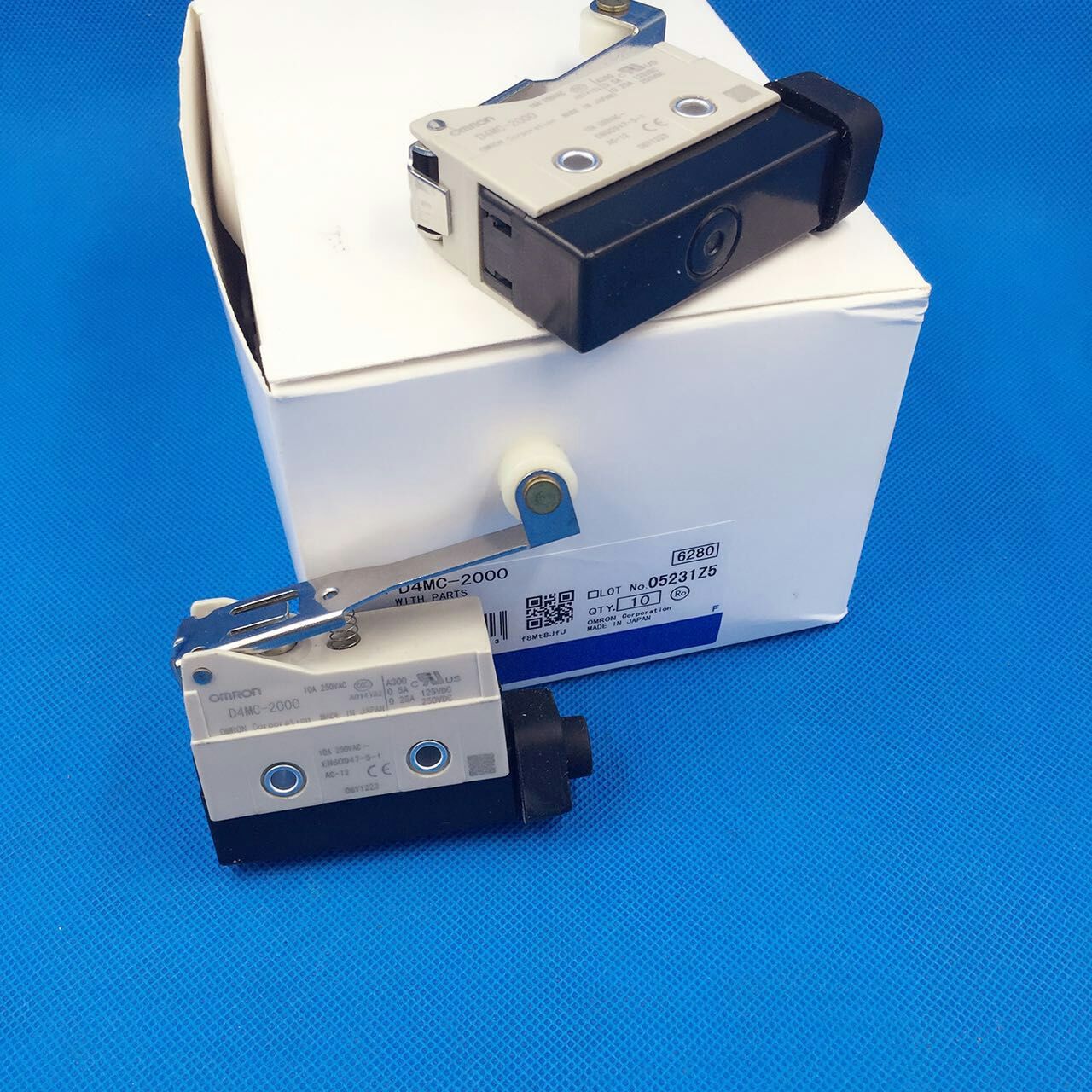

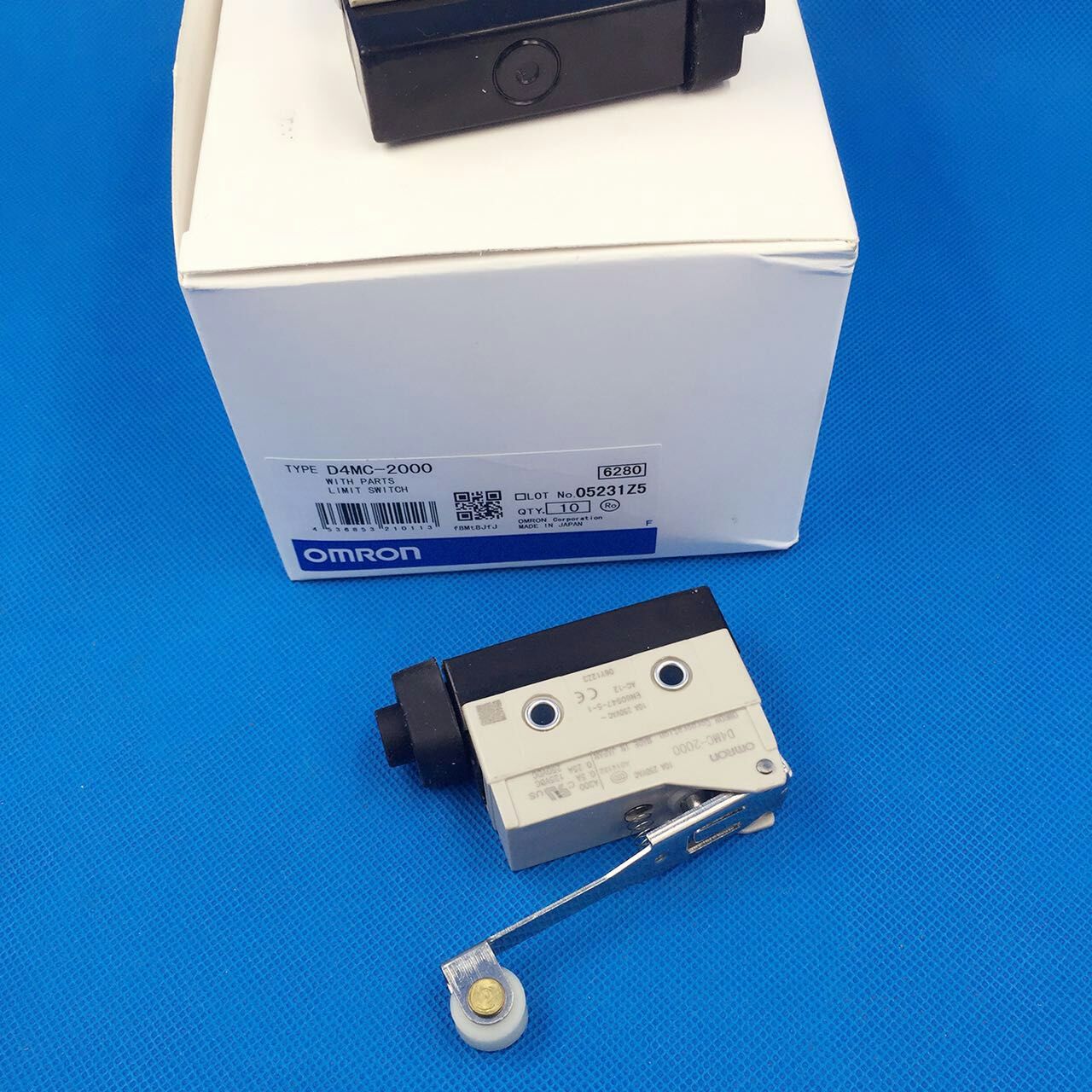

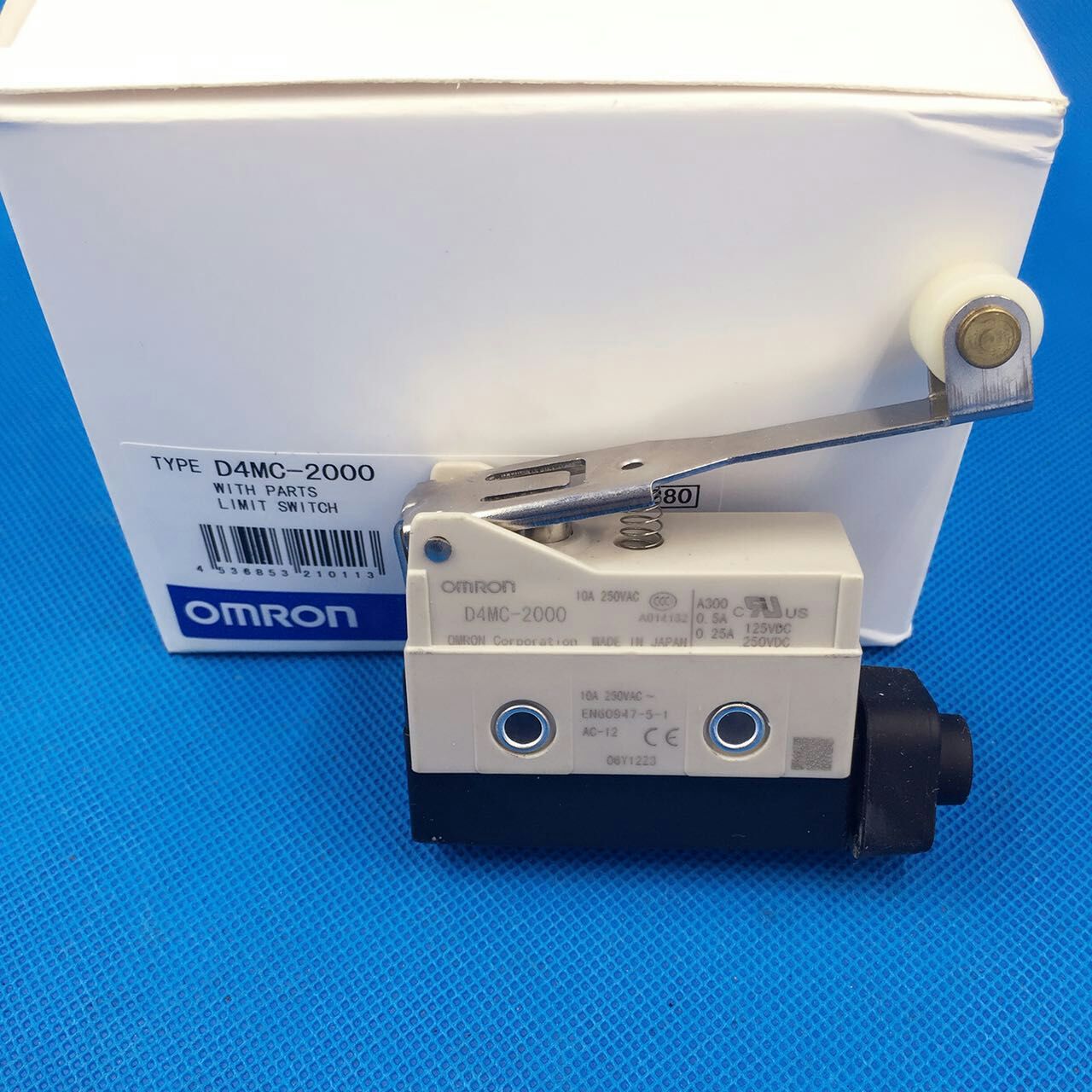

D4MC-2000 Omron limit switch

Category: .
Service life General type
ctuator Hinge roller lever
Frequency 50/60 Hz
Contact form SPDT
Load General load
Ratings (AC): Non-Inductive load Resistive load (NC): 10 A at 125 VAC、10 A at 250 VAC、AC480V 3A
Resistive load (NO): 10 A at 125 VAC、10 A at 250 VAC、AC480V 3A
Lamp load (NC): 3 A at 125 VAC、2.5A at 250 VAC、AC480V 1.5A
Lamp load (NO): AC125V 1.5A、1.25A at 250 VAC、AC480V 0.75A
Inductive load (NC): 10 A at 125 VAC、10 A at 250 VAC、AC480V 2.5A
Motor load (NC): 5 A at 125 VAC、3 A at 250 VAC、AC480V 1.5A
Motor load (NO): 2.5A at 125 VAC、1.5 A at 250 VAC、AC480V 0.75A
Ratings (DC): Non-Inductive load Resistive load (NC): DC8V 10A、DC14V 10A、6 A at 30 VDC、0.5 A at 125 VDC、0.25 A at 250 VDC
Resistive load (NO): DC8V 10A、DC14V 10A、6 A at 30 VDC、0.5 A at 125 VDC、0.25 A at 250 VDC
Lamp load (NC): 3 A at 8 VDC、3 A at 14 VDC、3 A at 30 VDC、125 VDC 0.4 A、250 VDC 0.2 A
Lamp load (NO): 1.5 A at 8 VDC、1.5 A at 14 VDC、1.5 A at 30 VDC、125 VDC 0.4 A、250 VDC 0.2 A
Inductive load (NC): DC8V 6A、DC14V 6A、5 A at 30 VDC、0.05 A at 125 VDC、0.03 A at 250 VDC
Motor load (NC): 8 VDC 5 A、14 VDC 5 A、5 A at 30 VDC、0.05 A at 125 VDC、0.03 A at 250 VDC
Motor load (NO): 2.5A at 8 VDC、2.5A at 14 VDC、2.5A at 30 VDC、0.05 A at 125 VDC、0.03 A at 250 VDC
Inrush current NC: 30 A
NO: 15 A
Ambient temperature 使用時: -10 to 80℃
Ambient humidity 35 to 95%

Permissible operating frequency Electrical: 20 operations / 1 minute max.
Mechanical: 120 operations / 1 minute max.
Contact resistance (Initial value) 15 mΩ max. (for the built-in switch whentested alone)
Insulation resistance 100 MΩ min.
: at 500 VDC
Dielectric strength Between each terminal of the same polarities: 1000 VAC 50/60 Hz 1 min
Between each terminal and non-live-metallic part: 2,000 VAC 50/60 Hz for 1 min
Durability Electrical: 500,000 operations min.
Mechanical: 10 million operations min.
Vibration resistance Malfunction: 10 to 55 Hz, 1.5-mm double amplitude, Contact opening: 1 ms max. at the free position and the total travel position.
Shock resistance Destruction: Max. 1000 m/s**2
Pollution degree 3 (IEC947-5-1)
Degree of protection IP67

Operating Force (OF) Standard value 1.96 N max.
Release Force (RF) Standard value 0.39 N min.
Movement Differential (MD) Standard value 3 mm max.
Over-Travel (OT) Standard value 5 mm min.
Operating Position (OP) Standard value 40±1 mm
Free Position (FP) Standard value 51 mm max.
