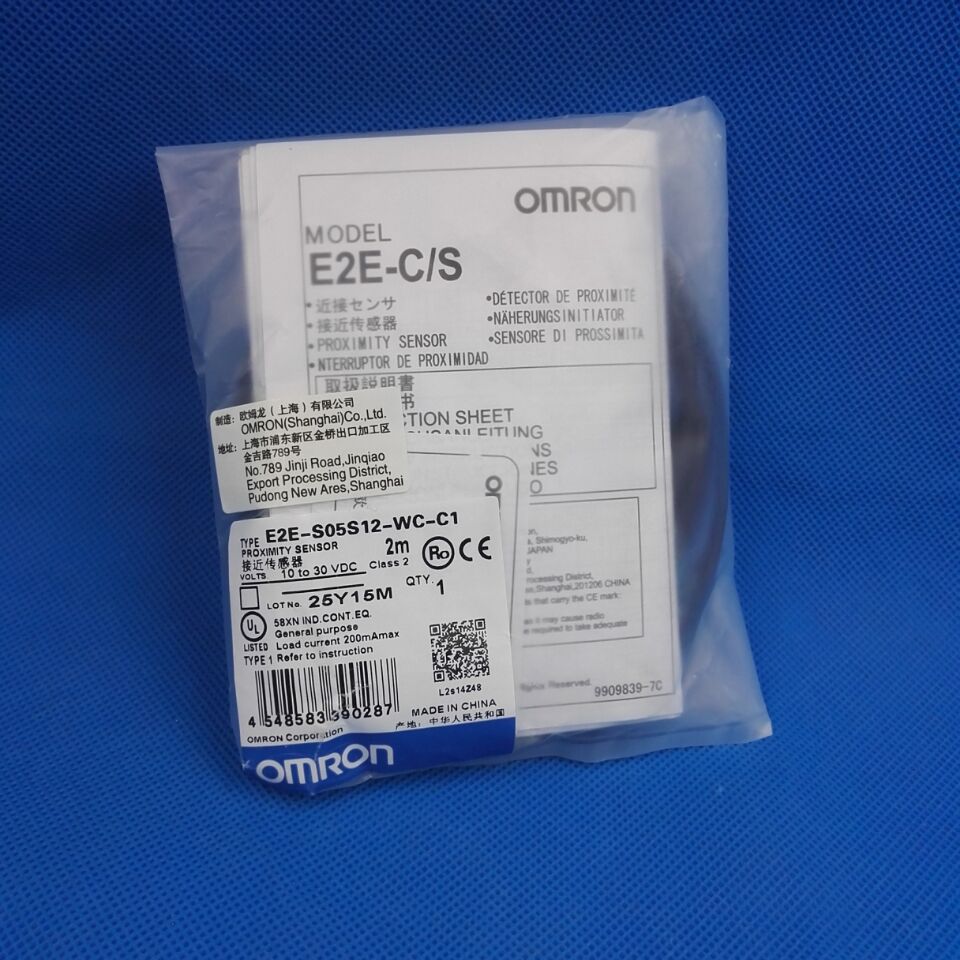

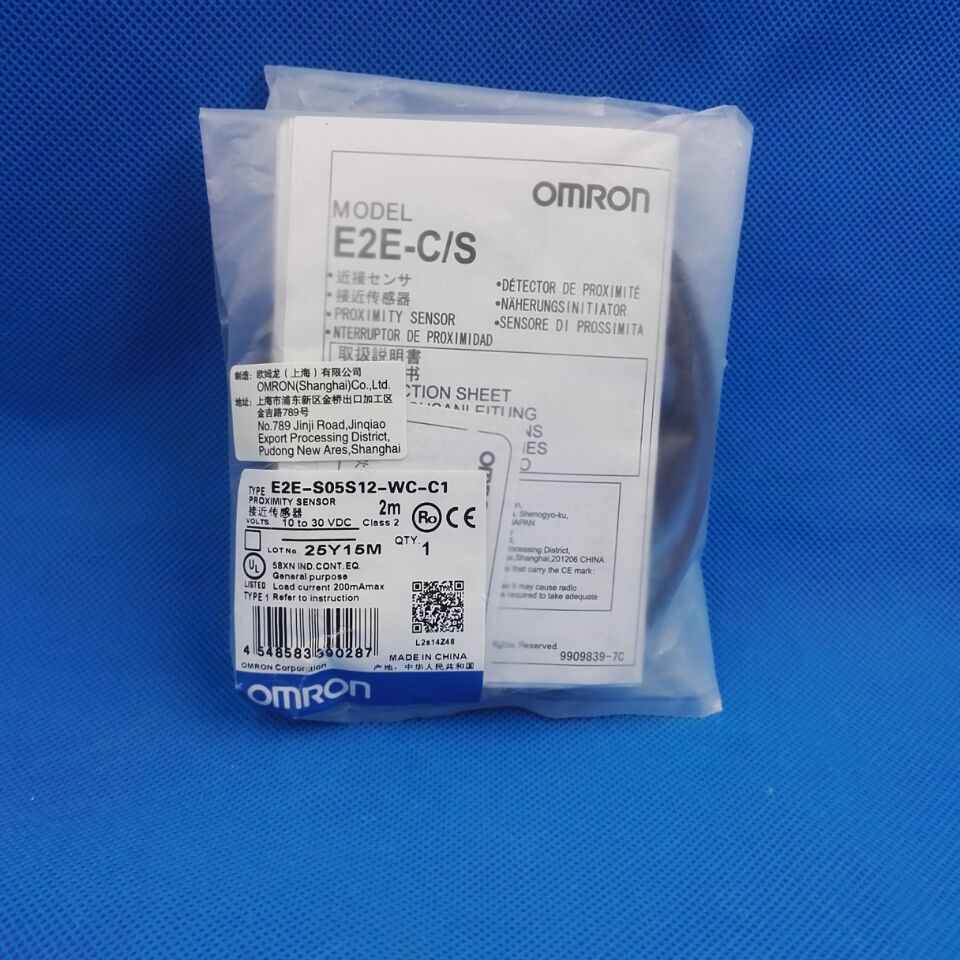

E2E-S05S12-WC-C1

Category: .
Detection head size M5
type Cylindrical type (with screw), Shield type
Detection distance 1.2 mm ± 10%
Set distance 0 to 0.84 mm
Hysteretic 15% or less of the detection distance
Detectable object Magnetic metal (Detection distance of non-magnetic metal decreases)
Standard detection object Iron 4 × 4 × 1 mm
Response frequency 4 kHz
Type of power supply DC 3 wire type
Power-supply voltage DC 10 to 30 V (including ripple (pp) 10%)
Operating voltage range 10 to 30 VDC
Current consumption 10 mA or less
Control output (output format) NPN open collector
Control output (switching capacity) 100 mA or less
Control output (residual voltage) 2 V or less (when load current is 100 mA, cord length is 2 m)
Indicator light Operation indicator light (yellow)
action mode No
Protection circuit Load Short Circuit Protection
Output Reverse Connection Protection
Power Reverse Connection Protection
Surge Absorption
Ambient temperature range At use: -25 to 70 ° C
Storage: -25 to 70 ° C
Ambient humidity range When used: 35 to 95% RH
Storage: 35 to 95% RH
Influence of temperature Within the temperature range of -25 to + 70 ° C, within ± 15% of the detection distance at 23 ° C
Effect of voltage Within the range of the rated supply voltage ± 15%, within ± 2.5% of the detection distance at rated supply voltage
Insulation resistance Between charging unit and casing: 50 MΩ or more (DC 500 V mega)
Withstand voltage Between charging unit and casing: AC 500 V 50/60 Hz 1 min
Anti-vibration Durability: 10 to 55 Hz Multiple amplitude 1.5 mm X, Y, Z direction 2 h
Impact resistance Durability: 500 m / s ** 2 X, Y, Z directions 10 times in each direction
Protective structure IEC: IP 67
Internal standard: oil resistant
Connection method Code pullout type (Cord length: 2 m)
mass Packing status: Approximately 35 g
Material Case: SUS303 (EN 1.4305)
Detection surface: Heat resistant ABS
cord: PVC (PVC)
tightening nut
: SUS 430 (EN 1.4016) Toothed washer: SUS 303 (EN 1.4305)
accessories Instruction manual, format label, nut set
