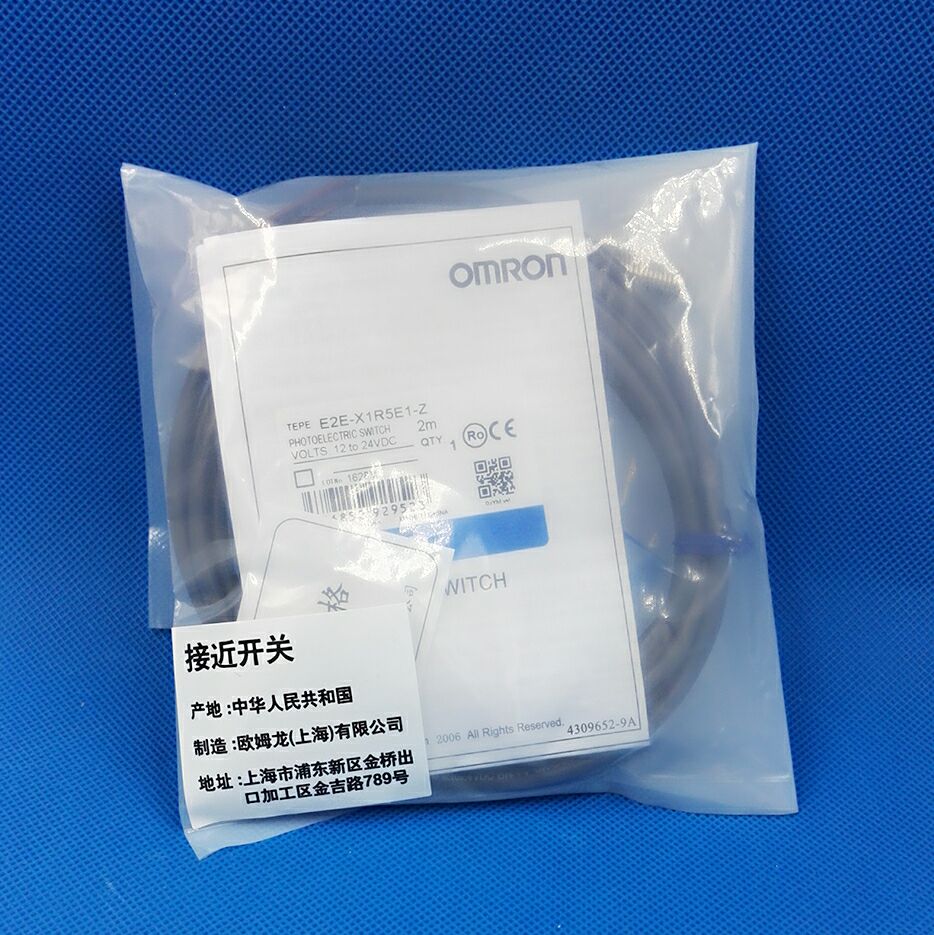

E2E-X1R5E1-Z Omron photoelectric switch

Sensing head size M8
Type Cylinder type (with screw)、Shielded
Sensing distance 1.5 mm ±10%
Setting distance 0 to 1.2 mm
Differential distance 10% max. of sensing distance
Sensing object Ferrous metal (Sensitivity lowers with non-ferrous metals.)
Standard sensing object Iron 8 x 8 x 1 mm
Response frequency 2 kHz
Power source DC Three-wires models
Power supply voltage 12 to 24 VDC (ripple (p-p) 10% max.)
Operating voltage range 10 to 30 VDC
Current consumption 13 mA max.
Control output (Output type) NPN collector load built-in output
Control output (Switching capacity) 200 mA max.
Control output (Residual voltage) 2 V max. (Load current 200 mA with cable length of 2 m)
Indicator Operation indicator (red)
Operation mode NO
Protective circuit Output short-cut protection
Reverse polarity protection
Surge suppressor
Ambient temperature Operating: -40 to 85℃
Storage: -40 to 85℃
Ambient humidity Operating: 35 to 95%
Storage: 35 to 95%
Temperature influence ±10% max. of sensing distance at 23 ℃ in the temperature range of -25 to 70 ℃
±15% max. of sensing distance at 23 ℃ in the temperature range of -40 to 85 ℃
Voltage influence ±1% max. of sensing distance at rated voltage in the rated voltage ±15% range
Insulation resistance Between charged parts and the case: 5 MΩ min. at 500 VDC
Dielectric strength Between charged parts and the case: 1000 VAC 50/60 Hz 1 min
Vibration resistance Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h
Shock resistance Destruction: 500 m/s**2 10 times each in X, Y, and Z directions
Degree of protection IEC: IP67
Company standard: Oil-proof
Connection method Pre-wired models (Cable length: 2 m)
Weight Package: Approx. 65 g
Material Case: Stainless steel (SUS303)
Sensing surface: Polybutylene terephthalate (PBT)
Clamping nuts: Brass nickel plating
Toothed washers: Iron zinc plating
Accessories Instruction manual
