E2EH-X7B1

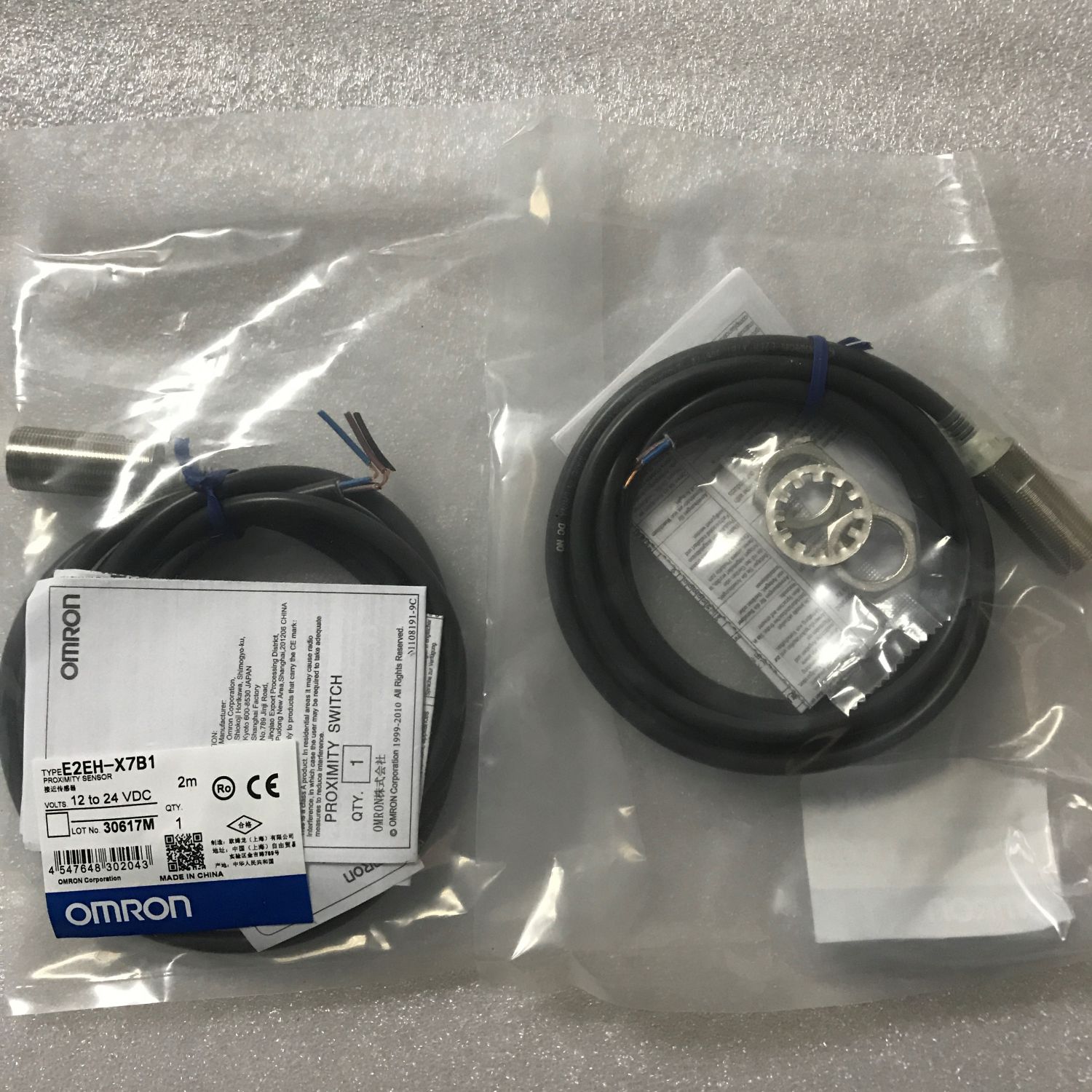

E2EH-X7B1 Omron Proximity Sensor

Category: .
Sensing head size M18
Type Cylinder type (with screw)、Shielded
Power source DC Three-wires models
Sensing distance 7 mm ±10%
Setting distance 0 to 5.6 mm
Differential distance 15% max. of sensing distance
Sensing object Ferrous metal (Sensitivity lowers with non-ferrous metals.)
Standard sensing object Iron 21 x 21 x 1 mm
Response frequency 300 Hz (Average value)
Power supply voltage 12 to 24 VDC ripple (p-p) 10% max.
Operating voltage range 10 to 32 VDC
at temperatures over 100 ℃: 10 to 24 VDC
Current consumption 10 mA max.
Control output (Output type) PNP open collector
Control output (Switching capacity) 100 mA max.
Ambient temperature of 100 to 120 ℃: 50 mA max.
Control output (Residual voltage) 2 V max. (Load current 100 mA with cable length of 2 m)
Indicator Operation indicator (yellow)
Operation mode NO
Protective circuit Output short-cut protection
Output reverse polarity protection
Power supply reverse polarity protection
Surge suppressor
Ambient temperature (Operating) 0 to 100℃
Ambient temperature (Storage) -25 to 70℃
Ambient humidity (Operating) 35 to 95%
Ambient humidity (Storage) 35 to 95%
Temperature influence ±10% max. of sensing distance at 23 ℃ in the temperature range of 0 to 70 ℃
±15% max. of sensing distance at 23 ℃ in the temperature range of +70 to +100 ℃
-15 to +20% max. of sensing distance at 23 ℃ in the temperature range of +100 to +120 ℃
Voltage influence ±10% max. of sensing distance at rated voltage in the rated voltage ±15% range
Insulation resistance Between charged parts and the case: 5 MΩ min. at 500 VDC
Dielectric strength Between charged parts and the case: 1,000 VAC 50/60 Hz 1 min
Vibration resistance Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h
Shock resistance Destruction: 1000 m/s**2 10 times each in X, Y, and Z directions
Degree of protection IEC: IP67
DIN40050-9 IP69K
Connection method Pre-wired models (2 m)
Weight Package: Approx. 145 g
Material Case: Stainless steel (SUS316L)
Sensing surface: Polybutylene terephthalate (PBT)
Clamping nuts: Stainless steel (SUS316L)
Cable: Heat-resistant PVC cable
Accessories Instruction manual
