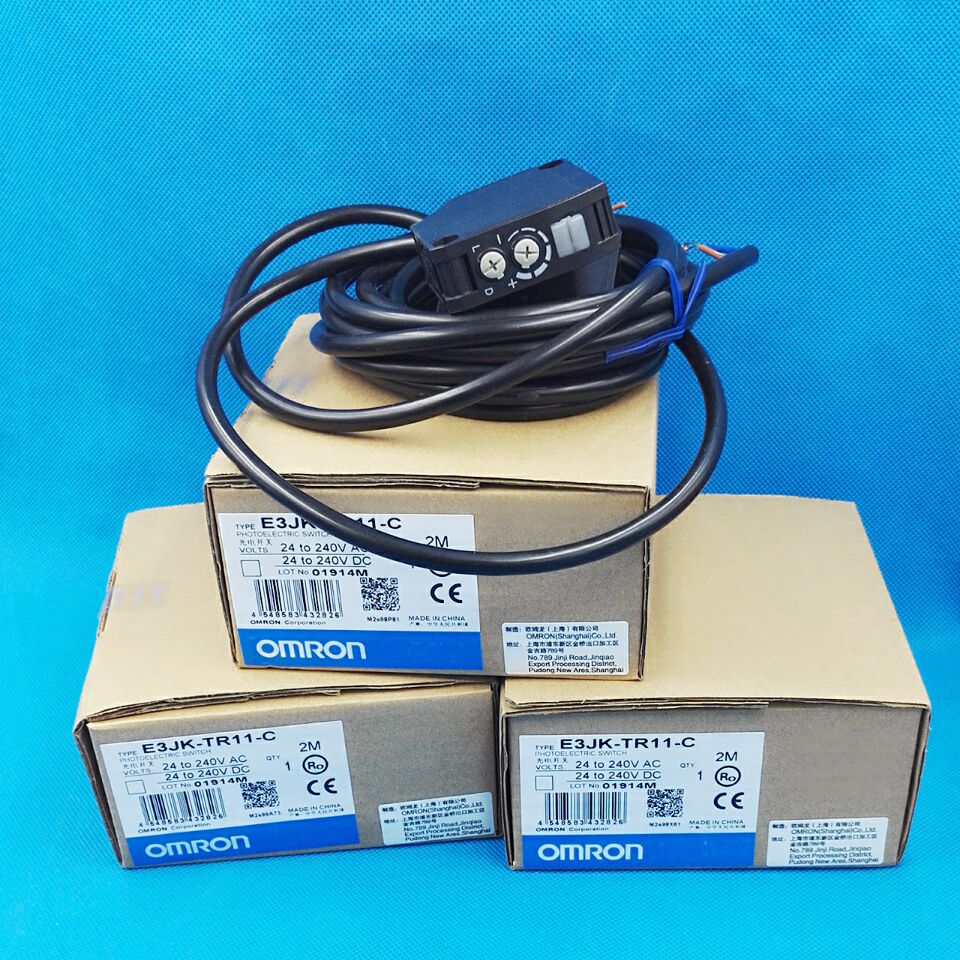

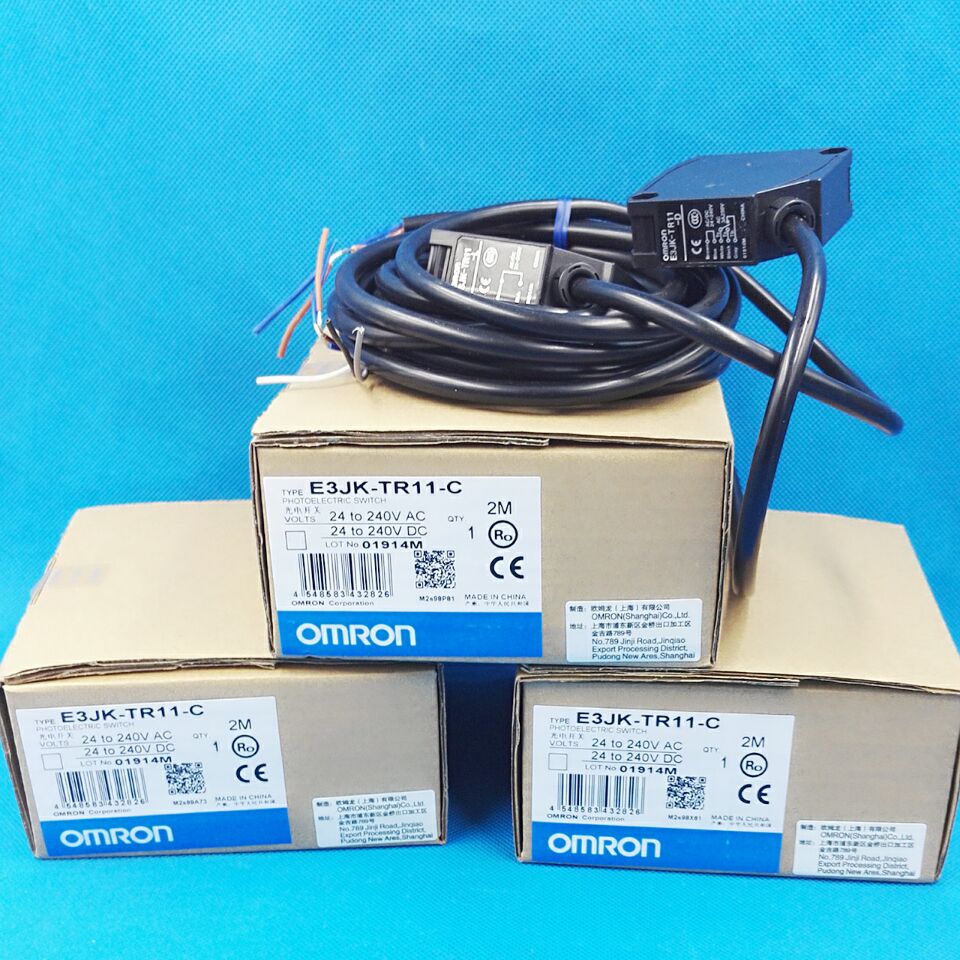

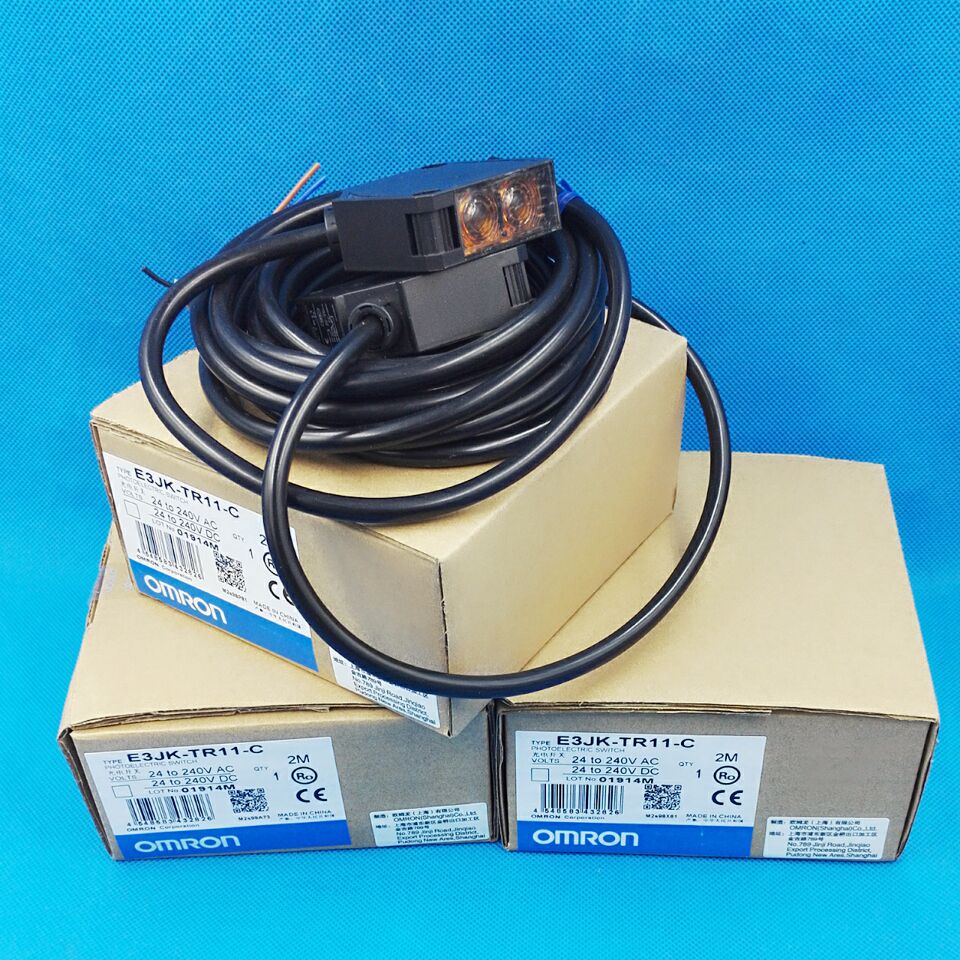

E3JK-TR11-C Omron photoelectric switch

Shape Square type
Sensing method Through-beam type
Sensing distance 40 m max.
Standard sensing object Opaque: 17 mm dia. Min.
Directional angle 3 ° min.
Light source Red LED (624 nm)
Power supply voltage 24 to 240 VAC ± 10% 50/60 Hz
: 24 to 240 VDC ± 10% ripple (pp) 10% max.
Power consumption Emitter and Receiver: 3 W max.
Control output Relay output
5 VDC 10 mA max. / 250 VAC 3 A (cos φ = 1) max.
Operation mode Light-ON / Dark-ON selectable
Response time 20 ms max.
Sensitivity setting Single-turn adjustment (Receiver only)
Ambient illuminance Incandescent lamp: 3000 lux max., Sunlight: 11000 lux max.
Ambient temperature Operating: -25 to 55 ° C
Storage: -40 to 70 ° C
Ambient humidity Operating: 35 to 85%
Storage: 35 to 95%
Insulation resistance 20 MΩ min. (At 500 VDC)
Dielectric strength 1500 VAC 50/60 Hz 1 min
Vibration resistance Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h
Malfunction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h
Shock resistance Destruction: 500 m / s ** 2 3 times each in X, Y and Z directions
Malfunction: 100 m / s ** 2 3 times each in X, Y and Z directions
Degree of protection IEC: IP 64
Connection method Pre-wired models (Cable length: 2 m
Indicator Operation indicator (orange), Stability indicator (green), Power indicator (green)
Weight Package: Approx. 350 g
Accessories Instruction manual, mounting bracket
Material Case: ABS
Lens: Methacrylate resin
Display: Methacrylate resin
Adjustment: POM
Cable: Polyvinyl chloride (PVC)
