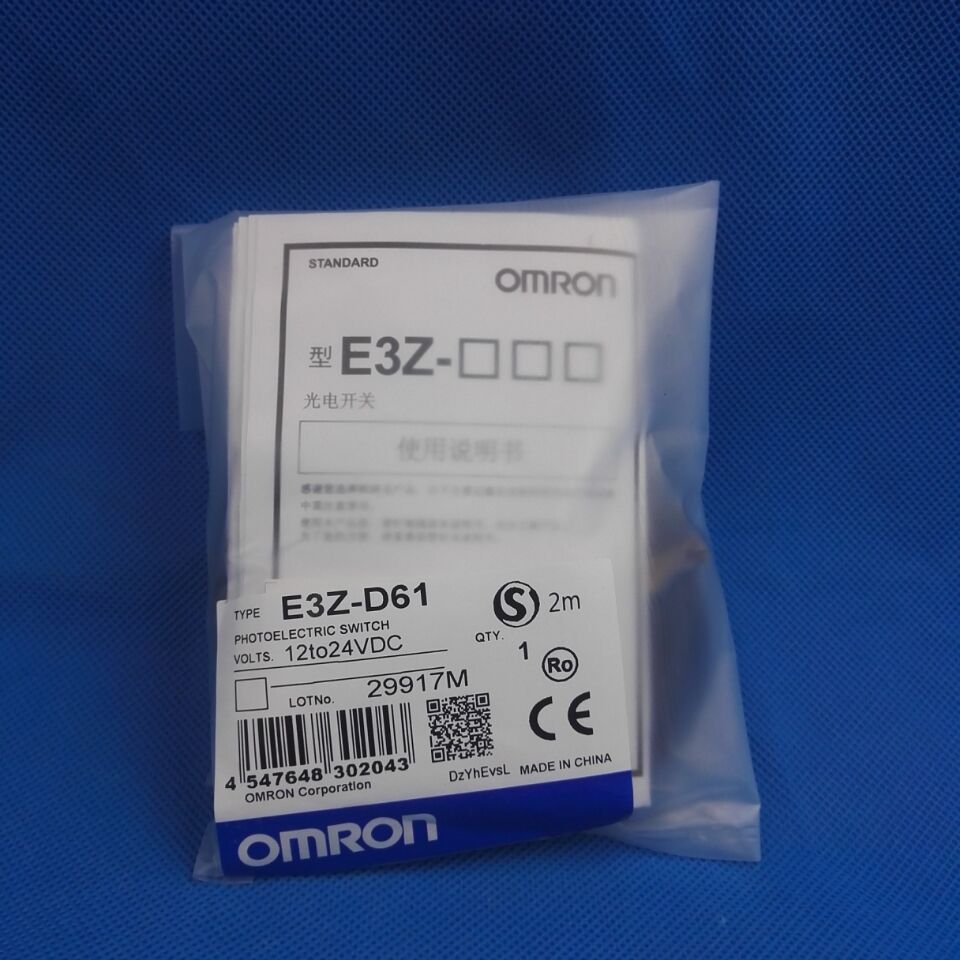

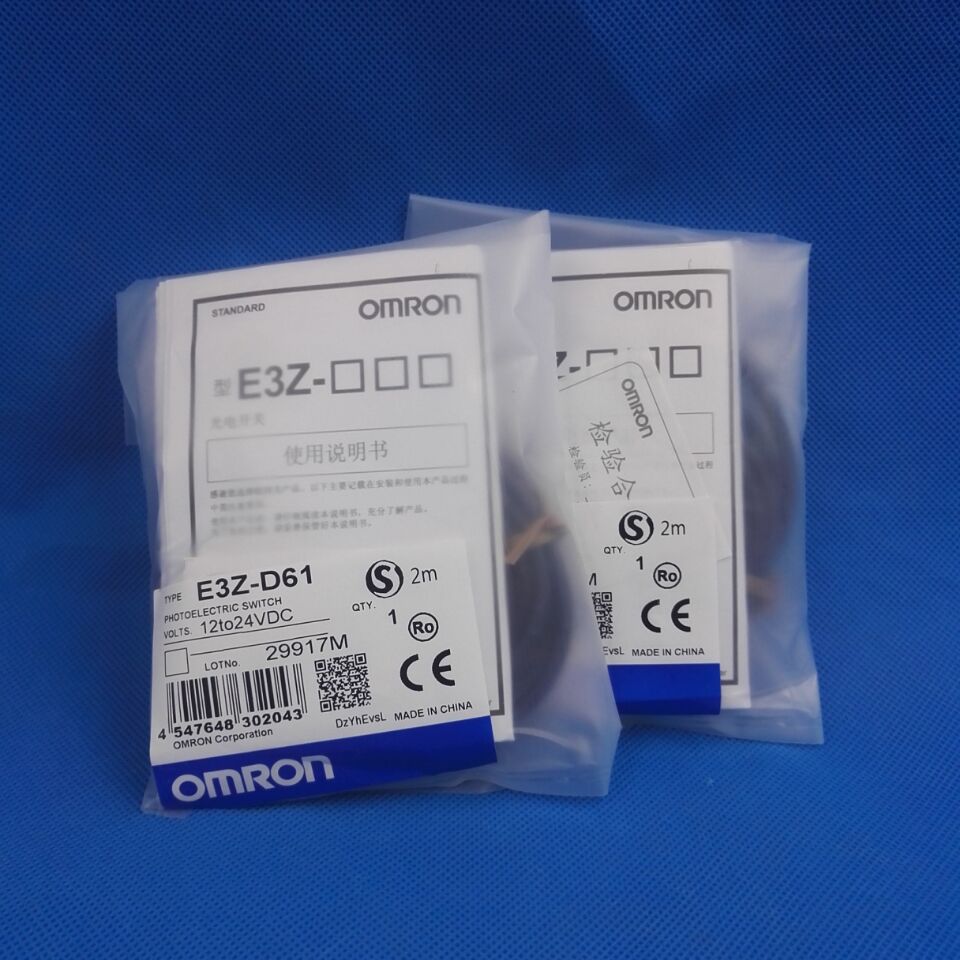

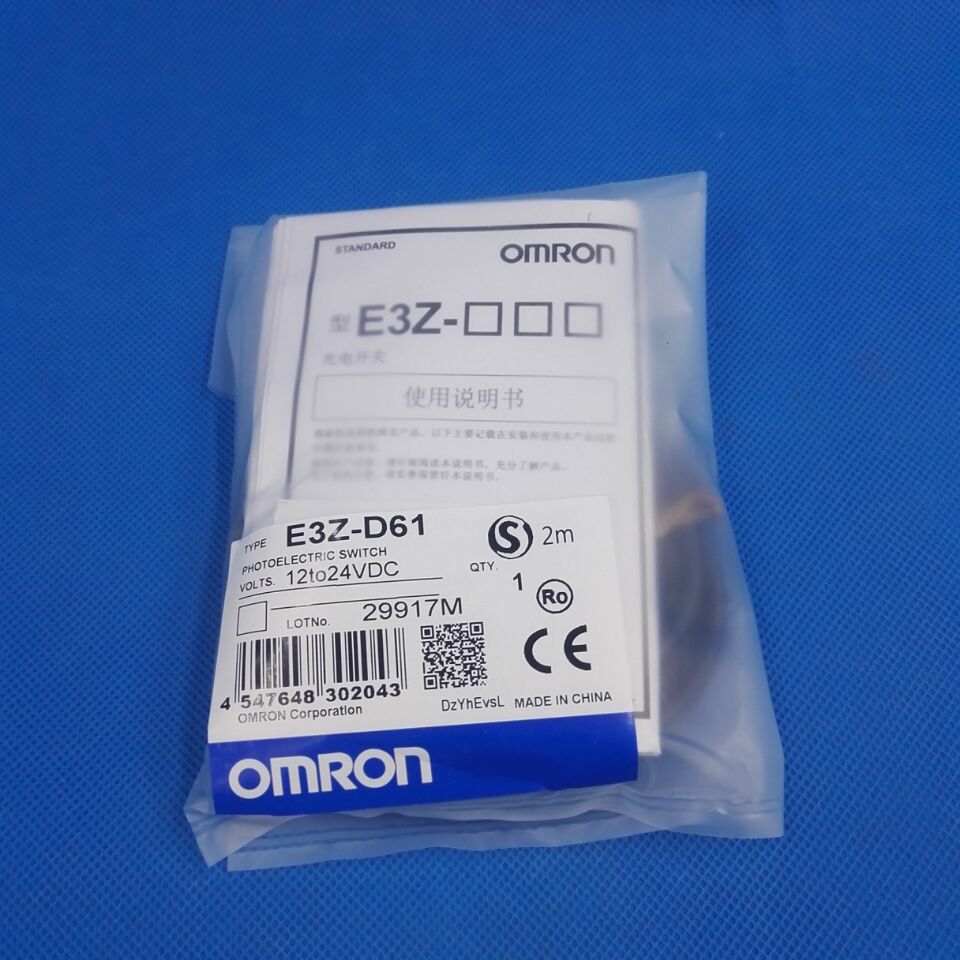

E3Z-D61 Omron photoelectric switch

Shape Square type
Sensing method Diffuse-reflective
Sensing distance 100 mm max. (White paper 100 x 100 mm)
Differential distance 20% max. of sensing distance
Light source Infrared LED (860 nm)
Power supply voltage 12 to 24 VDC ±10% ripple (p-p) 10% max.
Current consumption 30 mA max.
Control output NPN open collector
26.4 VDC max.
Load current: 100 mA max.
Residual voltage: 1 V max. (Load current Less than 10 mA), 2 V max. (Load current: 10 to 100 mA)
Operation mode Light-ON/Dark-ON selectable
Protective circuit Output short-cut protection, Output reverse polarity protection, Power supply reverse polarity protection, Mutual interference prevention
Response time 1 ms max.(Operate or reset)
Sensitivity setting Single-turn adjustment
Ambient illuminance Incandescent lamp: 3000 lux max., Sunlight: 10000 lux max.
Ambient temperature Operating: -25 to 55℃
Storage: -40 to 70℃
Ambient humidity Operating: 35 to 85%
Storage: 35 to 95%
Insulation resistance 20 MΩ min. (at 500 VDC)
Dielectric strength 1000 VAC 50/60 Hz 1 min
Vibration resistance Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h
Shock resistance Destruction: 500 m/s**2 3 times each in X, Y and Z directions
Degree of protection IEC: IP67
Connection method Pre-wired models (Cable length: 2 m
Indicator Operation indicator (orange), Stability indicator (green)
Weight Package: Approx. 65 g
Accessories Instruction manual
Material Case: Polybutylene terephthalate (PBT)
Lens: Denatured Polyarylate
