E3Z-G61

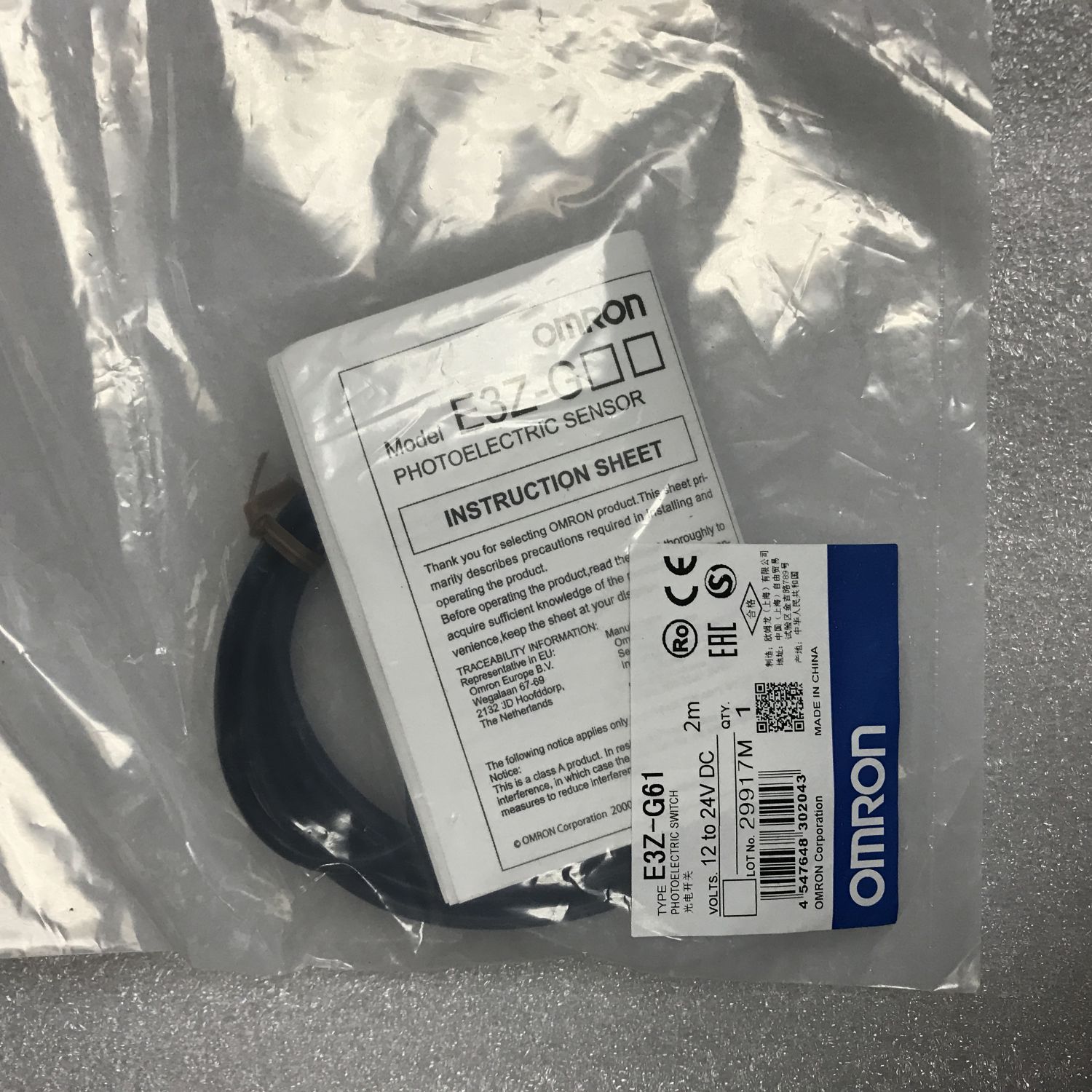

E3Z-G61 Omorn Photoelectric Sensor

Shape Grooved Type
Sensing distance 25 mm
Standard sensing object Opaque: 1.5 mm dia. min.
Light source Infrared LED (940 nm)
Power supply voltage 12 to 24 VDC±10% ripple (p-p) 10% max.
Current consumption 25 mA max.
Control output NPN open collector
26.4 VDC max.
100 mA max.
Residual voltage: 1 V max.
Operation mode Light-ON/Dark-ON selectable
Protective circuit Output short-circuit protection, Power supply reverse polarity protection, Mutual interference prevention
Response time Operate or reset: 1 ms max.
Ambient illuminance Incandescent lamp: 3000 lux max., Sunlight: 10000 lux max.
Ambient temperature (Operating) -25 to 55℃ (with no freezing or condensation)
Ambient temperature (Storage) -40 to 70℃ (with no freezing or condensation)
Ambient humidity Operating: 35 to 85% (with no condensation)
Storage: 35 to 95% (with no condensation)
Insulation resistance 20 MΩ min. (500 VDC megger)
Dielectric strength Between lead wires and case: 1000 VAC 50/60 Hz 1 min
Vibration resistance Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h
Shock resistance Destruction: 500 m/s**2 3 times each in X, Y and Z directions
Degree of protection IEC: IP64
Connection method Pre-wired models (Cable length 2 m)
Weight Package: Approx. 65 g
Accessories Instruction manual
Material Case: ABS
