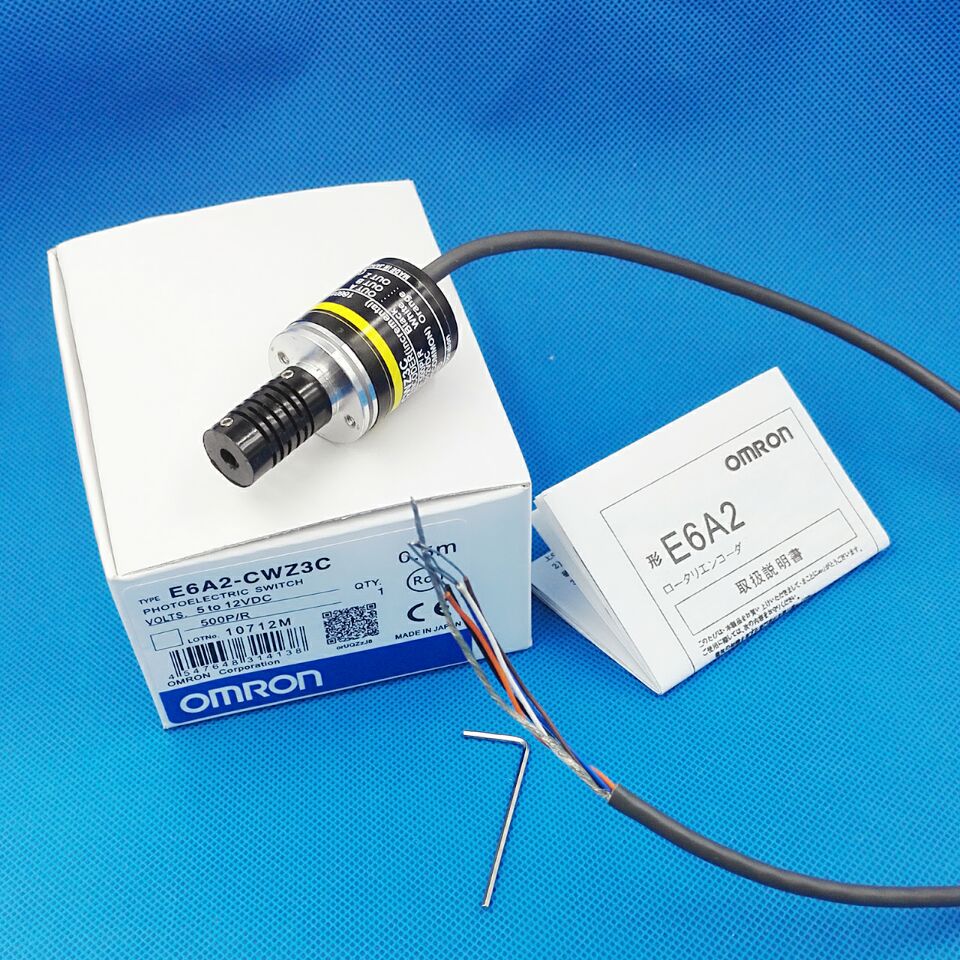

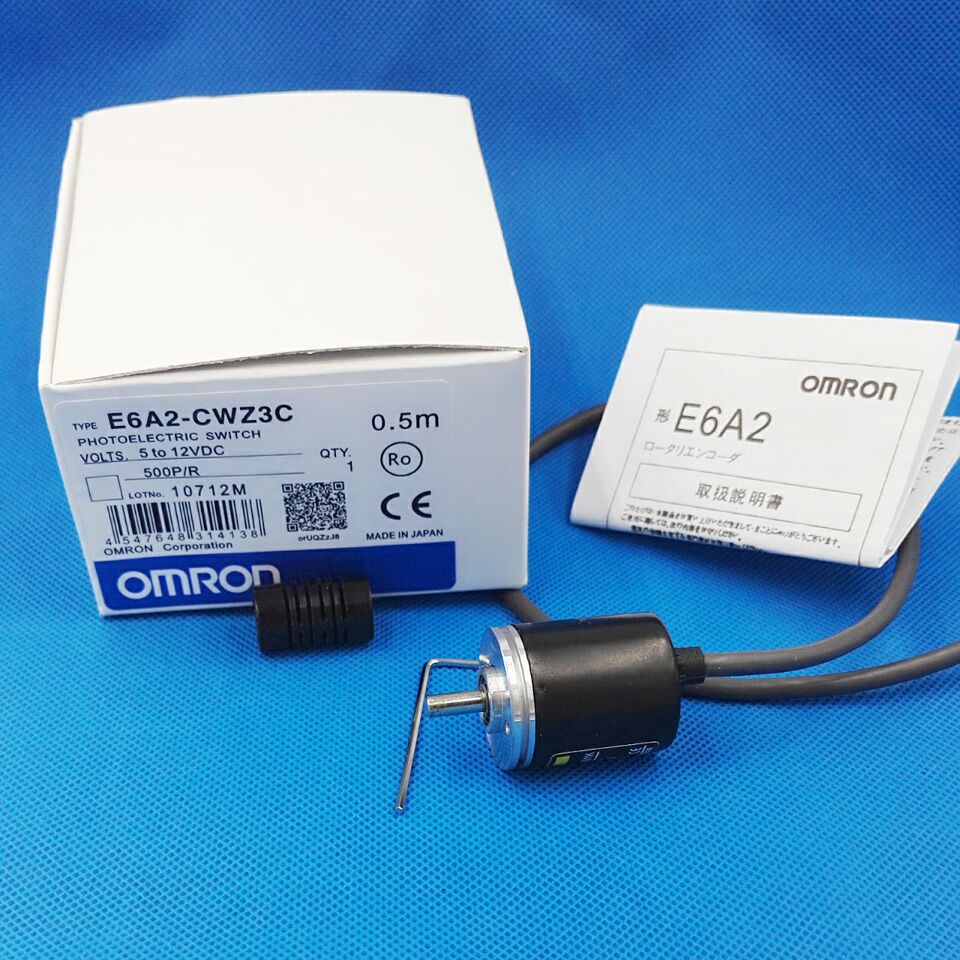

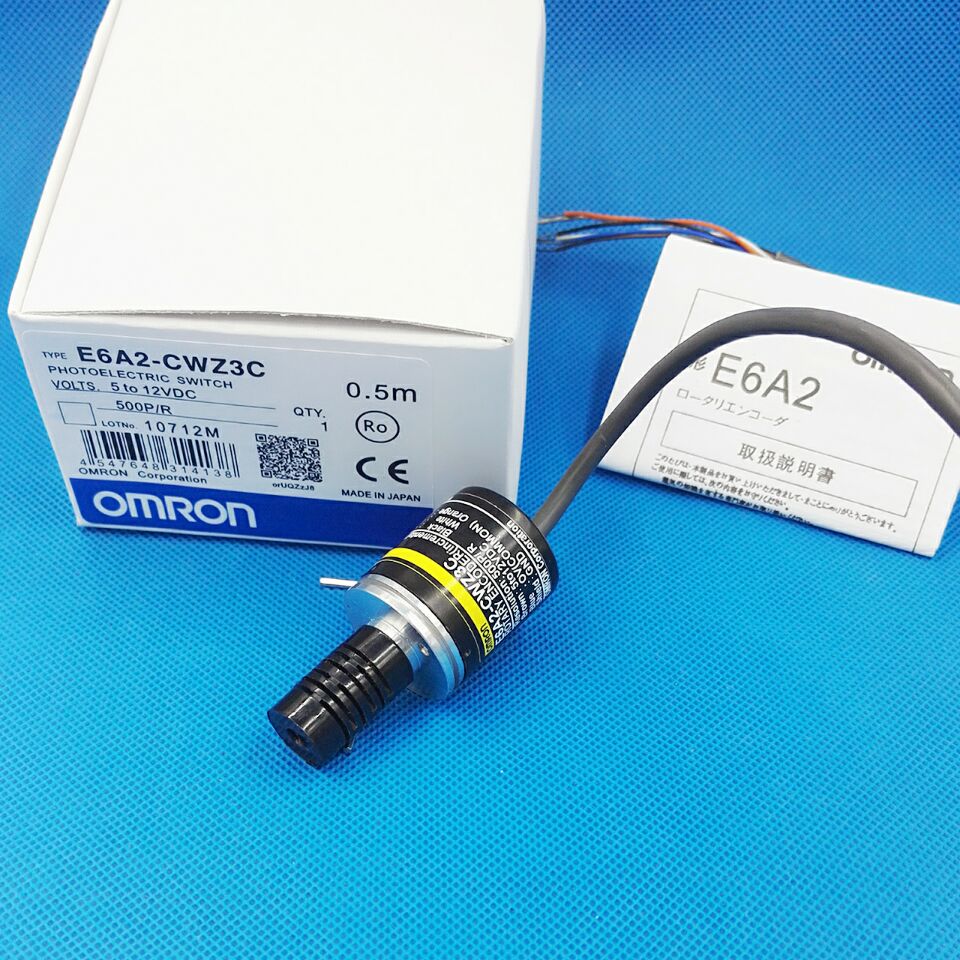

E6A2-CWZ3C Omron photoelectric switch

Categorise Incremental
Shaft model
Diameter 25 dia.
Power supply voltage DC5-5% to 12+10% V (ripple (p-p): 5% max.)
Current consumption 30 mA DC max.
Resolution 100 P/R
Inrush current Approx. 9 A (Time: Approx. 0.3 ms)
Output phases A, B and Z
Control output (Output type) NPN open collector
Control output (Load power supply voltage) 30 VDC max.
Control output (Load current) 30 mA max. (Sink current)
Control output (Residual voltage) 0.4 VDC max. (at sink current 30 mA)
Max. response frequency 30 kHz
Phase difference on output 90±45°between A and B
Rise and fall times of output 1 µs max. (Cable length: 0.5 m, output voltage: 5 V, load resistance: 1 kΩ )
Starting torque 1 mN.m max.
Moment of inertia 1 x 10**-7 kg.m**2 max.
Shaft loading Radial: 10 N
Thrust: 5 N
Max. permissible rotation 5000 r/min
Ambient temperature Operating: -10 to 55 ℃
Storage: -25 to 80 ℃
(with no icing)
Ambient humidity Operating: 35 to 85% RH
Storage: 35 to 85% RH
(with no condensation)
Insulation resistance Between charged parts and the case: 20 MΩ min. at 500 VDC
Dielectric strength Between charged parts and the case: 500 VAC at 50/60 Hz for 1 min
Vibration resistance 10 to 55 Hz, 1.5-mm double amplitude each in X, Y, and Z directions for 2 h
Shock resistance 500 m/s**2 for 3 times each in X, Y, and Z directions
Degree of protection IEC: IP50
Connection method Pre-wired models (Cable_length: 0.5 m)
Material (body) Aluminum
Material (case) Aluminum alloy
Material (shaft) SUS420J2
Material (mounting bracket) Iron zinc plating
Weight (packed state) Approx. 35 g
Accessories Instruction manual, coupling, hex-head spanner and Servo mouting bracket
