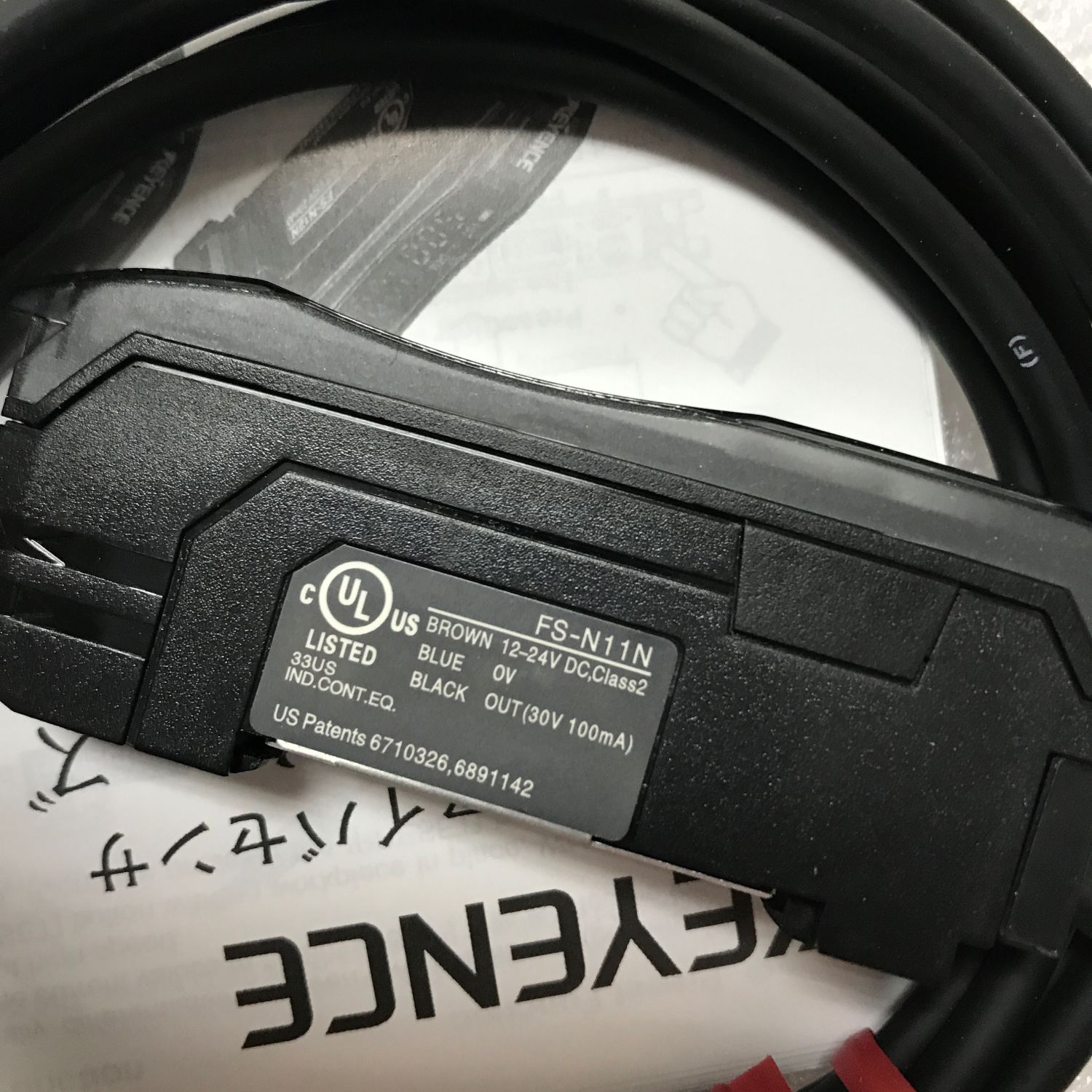

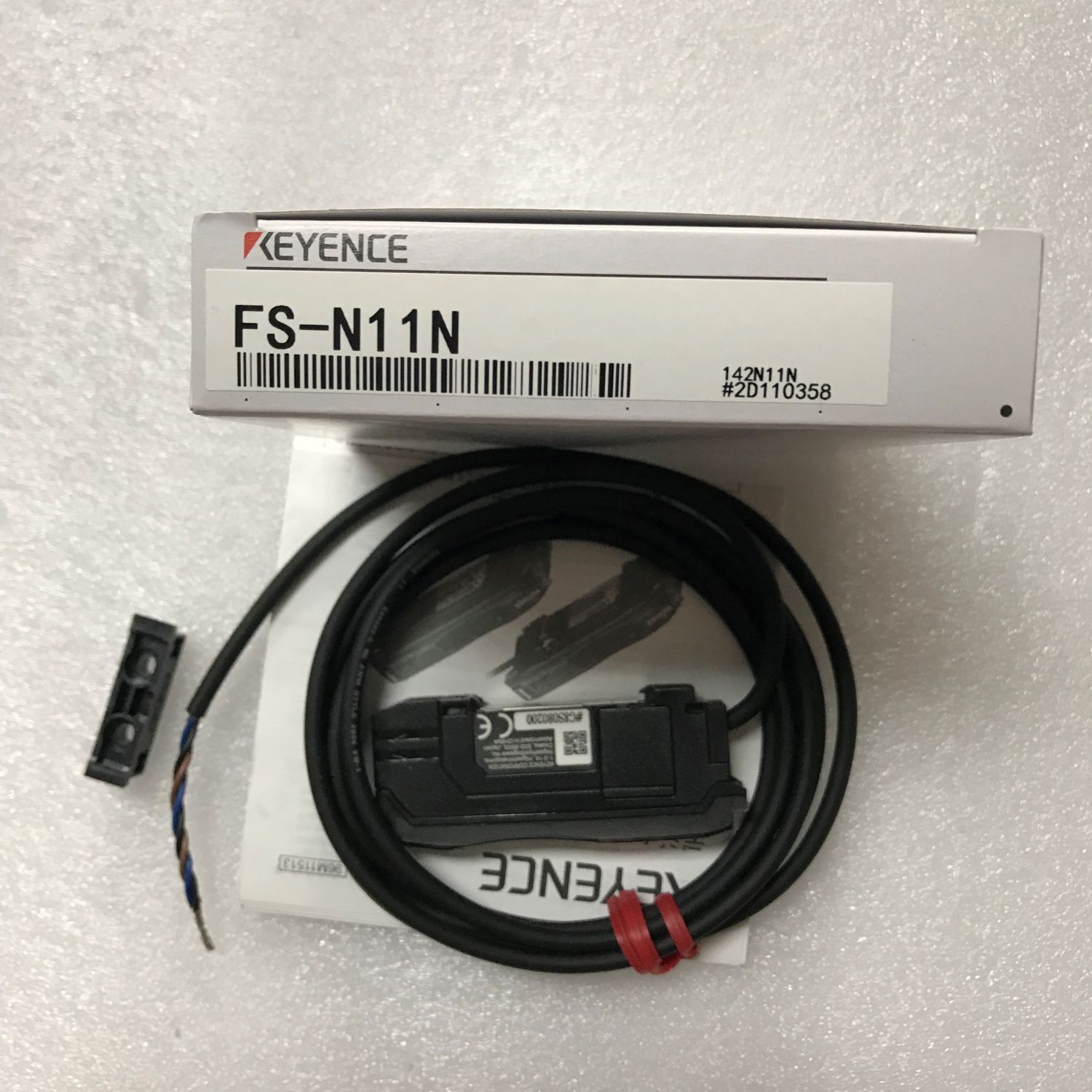

FS-N11N KEYENCE Fiber Amplifier

Category: .
Model FS-N11N
Type Standard 1 output
Cable
Output NPN
Main unit/expansion unit Main unit
Control output 1
NPN open collector 24 V; 1 output max: 100 mA or less; 2 output total: 100 mA or less (used stand-alone)/20 mA or less (multiple connections); residual voltage 1 V or less
Monitor output (1-5 V)
External input
Response time 50 µs (HIGH SPEED) /250 µs (FINE) /500 µs (TURBO) /1 ms (SUPER) /4 ms (ULTRA) /16 ms (MEGA)
Multiple connections to Expansion units Up to 16 units can be connected total (two output type is treated as two units)
Light source LED Red, 4-element LED
APC ON/OFF switchable (Factory setting: OFF)
Number of interference prevention units 0 for HIGH SPEED; 4 for FINE; 8 for TURBO/SUPER/ULTRA/MEGA
(When set to double, the number of interference-prevention units will be doubled.)
Rating Power voltage 12 to 24 VDC ±10 %, Ripple (P-P) 10 % or less
Current Consumption Normal: 900 mW or less (36 mA max. at 24 V, 48 mA max. at 12 V)*1
Eco on mode: 800 mW or less (32 mA max. at 24 V, 39 mA max. at 12 V)*1
Eco Full mode: 470 mW or less (19 mA max. at 24 V, 23 mA max. at 12 V)
Environmental resistance Ambient light Incandescent lamp: 20,000 lux or less, Sunlight: 30,000 lux or less
Ambient temperature -20 to +55 °C -4 to +131 °F (No freezing)*2
Relative humidity 35 to 85 % RH (No condensation)
Vibration resistance 10 to 55 Hz, Double amplitude 1.5 mm 0.06″, 2 hours in each of the X, Y, and Z directions
Shock resistance 500 m/s2, 3 times in each of the X, Y, and Z directions
Case material Both main unit and expansion unit housing material: Polycarbonate
Weight Approx. 75 g
*1 Increases 100 mW (4.0 mA) for High Speed mode
*2 One or two more units connected: -20 to +55 °C (-4 to +131 °F); 3 to 10 more units connected: -20 to +50 °C (-4 to +122 °F); 11 to 16 more units connected: -20 to +45 °C (-4 to +113 °F).
When using 2-outputs, one unit is counted as two units. All temperature regulations are for when the unit is mounted on a DIN rail and installed on metal sheeting.
