FS-V31FS-V31

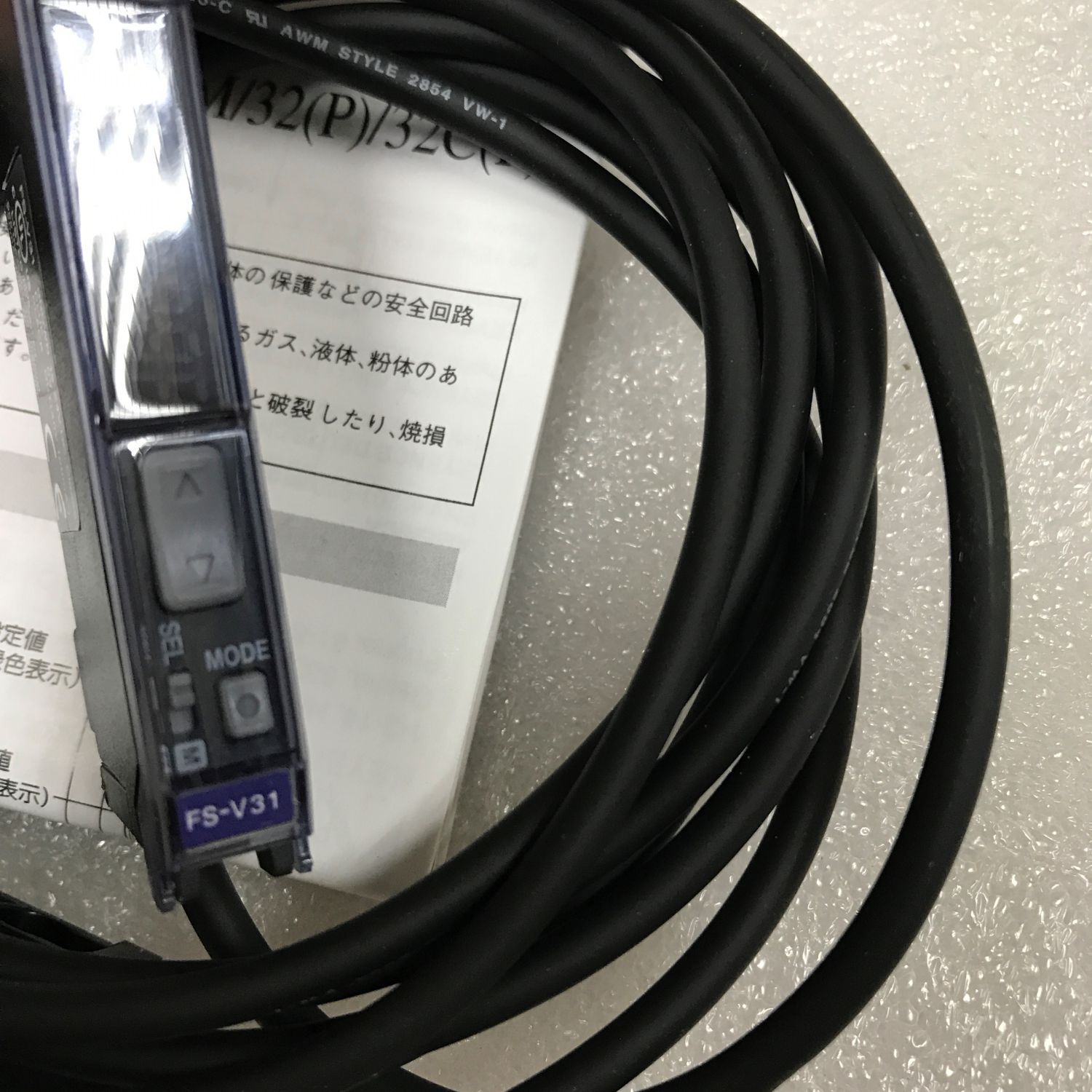

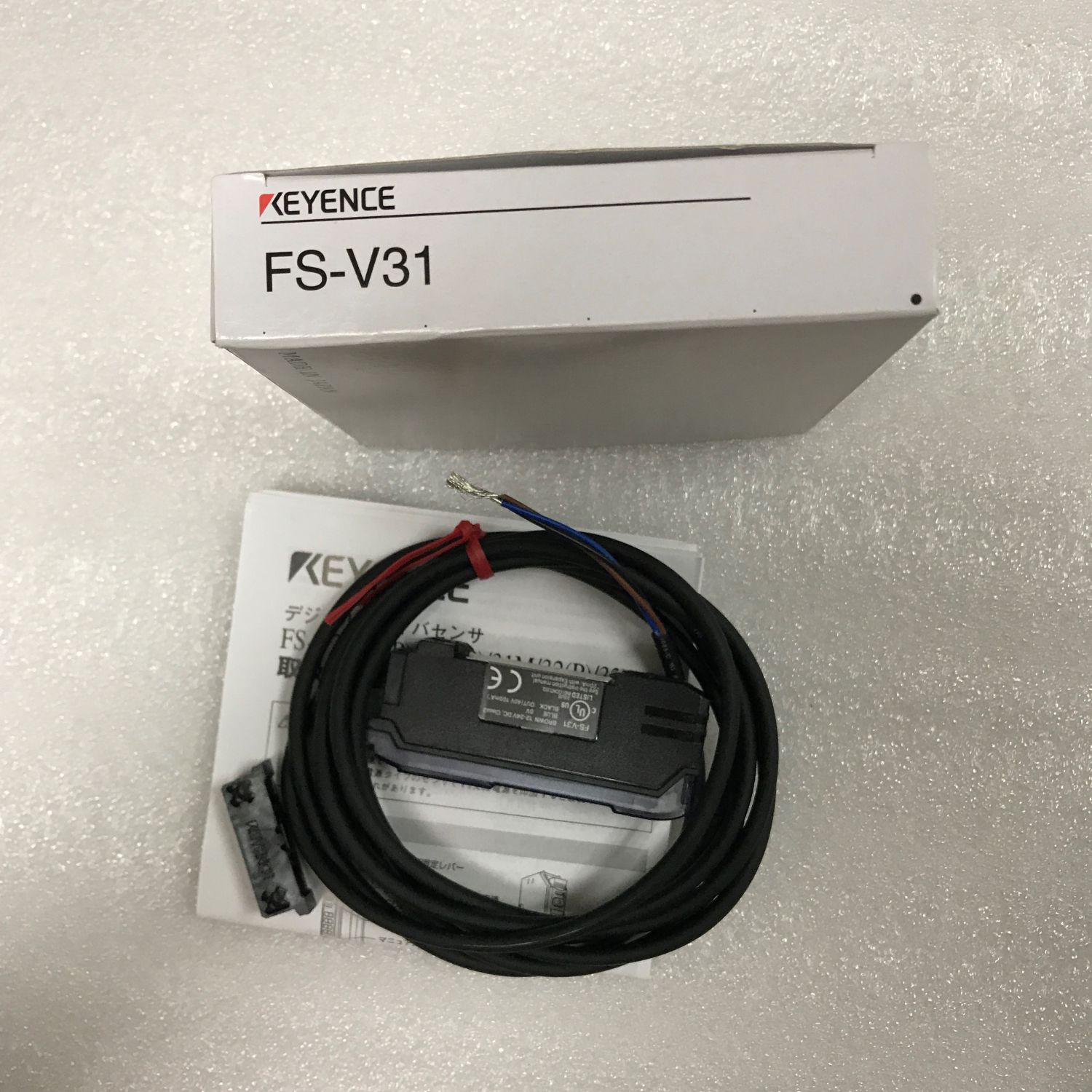

FS-V31 keyence Fiber Amplifier

Category: .
Model FS-V31
Type 1-output with cable
Output NPN
Main unit/Expansion unit Main unit
Control output 1 output
Monitor output (1 to 5 V) N/A
External input
Connector
Light source LED Red, 4-element LED (Wavelength: 640 nm)
Response time 33 µs (HIGH SPEED) /250 µs (FINE) /500 µs (TURBO) /1 ms (SUPER TURBO) /4 ms (ULTRA TURBO) /16 ms (MEGA TURBO)
Output selection LIGHT-ON/DARK-ON (switch-selectable)
Display indicator Operation indicator: Red LED/Dual digital monitor: Dual 7-segment display, Preset Value (4-digit green LED indicator) and
Current Value (4-digit red LED indicator) illuminated together. Current Value range: 0 to 64,512; Excess gain: 0P to 999P,
Hold function: Possible to display both peak and bottom hold values, Selectable from 5 variations
Bar LED monitor: Excess gain displayed (85% to 115% in 7 steps), Scaling display
Detection mode Light intensity (area detection possible, automatic sensitivity-tracking function provided)
Timer function OFF-delay timer/ON-delay timer/One-shot timer/ON-delay timer + OFF-delay timer/ON-delay timer + One-shot timer, selectable
Timer duration selectable: 0.1 ms to 9,999 ms, Maximum error against the setting value: ±10% max.
Control output NPN open-collector 24 V, 100 mA max.*1 (main unit only)/20 mA max. (when the expansion unit(s) is connected), Residual voltage: 1 V max.
External inputy Input time: 2 ms (ON)/20 ms (OFF) min.*2
Unit expansion Up to 16 expansion units can be connected (a total of 17 units). Note that the 2-output type should be counted as two units.
Number of interference prevention units Normal operation HIGHSPEED:0 FINE:4 TURBO/SUPER/ULTRA/MEGA:8台
Size 30.3 mm (H) x 9.8 mm (W) x 71.8 mm (D) 1.19″ (H) x 0.39″ (W) x 2.83″ (D)
Rating Power voltage 12 to 24 VDC ±10 %, Ripple (P-P) 10 % or less
Power consumption Normal: 710 mW max. (Using 24 V, 29 mA max., using 12 V, 40 mA max.)/Power saving: 540 mW max. (Using 24 V, 22 mA max., using 12 V, 28 mA max.)*3
Environmental resistance Ambient light Incandescent lamp: 20,000 lux max., Sunlight: 30,000 lux max.
Ambient temperature -10 to +55 °C 14 to 131 °F (No freezing)*4
Relative humidity 35 to 85 % RH (No condensation)
Vibration resistance 10 to 55 Hz, Double amplitude 1.5 mm 0.06″, 2 hours in each of the X, Y, and Z directions
Shock resistance 500 m/s2, 3 times in each of the X, Y, and Z directions
Case material Polycarbonate
Accessories N/A
Weight Approx. 80 g
*1 Total current of two outputs should be less than 100 mA.
*2 Only available on certain models.
*3 When using the HIGH SPEED mode, the power consumption increases by 160 mW (7 mA).
*4 If more than one unit is used together, the ambient temperature varies with the conditions below. Mount the units on the DIN rail with mounting brackets and check that the output current is 20 mA or less.
1 to 2 Units: -10 to +55 °C 14 to 131 °F, 3 to 10 Units: -10 to +50 °C 14 to 122 °F, 11 to 16 Units: -10 to +45 °C 14 to 113 °F
