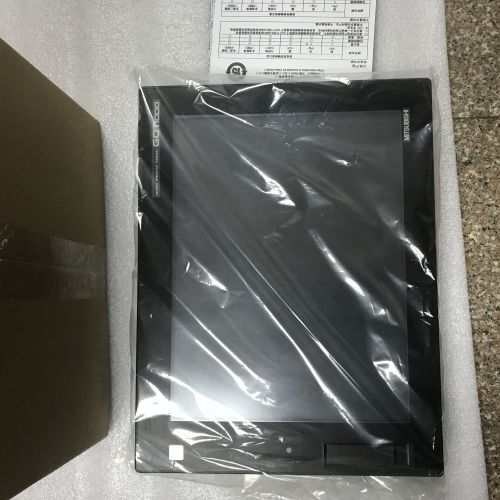

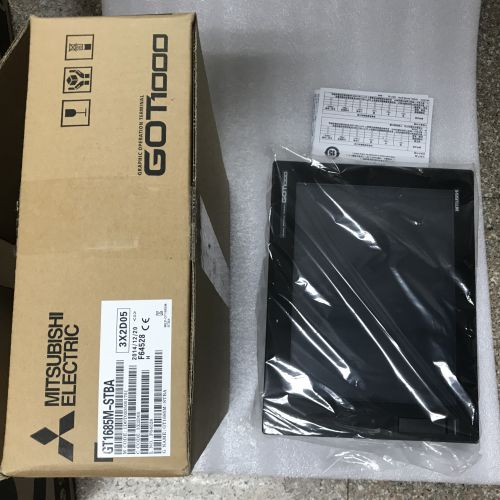

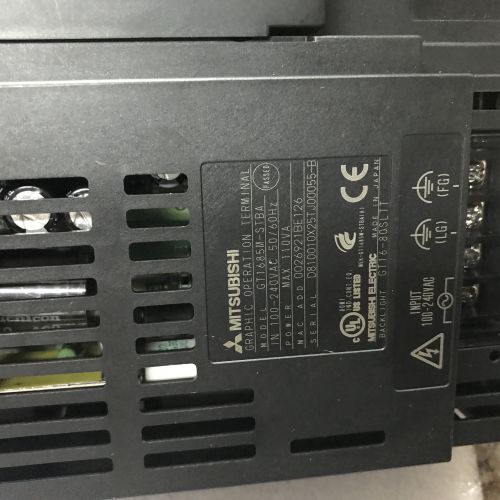

GT1685M-STBA Mitsubishi HMI

Category: .
  • Manufacturer: Mitsubishi Electric
  • Product No : GT1685M-STBA
  • Product type : GOT1000 series GT16
  • Classification: Large:8 to 15-inch
  • ProductNo. : GT1685M-STBA
  • Modelname : GT16
  • Applicablestandards : UL /cUL, CE (EMC), CE (LVD), KC, ABS, BV, DNV, LR, NK, RINA, GL
  • Display type : TFTcolor LCD (high brightness, wide viewing angle)
  • Screensize : 12.1-inch
  • resolution: SVGA:800 × 600 [dot]
  • Displaysize : 246 (W)× 184.5 (H) [mm]
  • Displaynumber of characters : 16 dotstandard font at the time: 50 characters × 37 lines (full-size)
  • 12-dot standard font at the time: 66 characters × 50 rows (em)
  • Displaycolor : 65536colors
  • Viewangle : Each ofthe left and right 80 degrees, above 60 degrees, down 80 degrees
  • Contrastadjustment : –
  • LCDsimple brightness : 470 [Cd/ M 2 ]
  • Brightnessadjustment : 8levels of adjustment
  • lifespan: About52,000 hours (ambient temperature 25 °C)
  • It canbe registered maximum number of screens : 4096screen
  • Backlight function: Cold-cathodetube (replaceable) backlight burnout detection function, backlight OFF /screen save time setting Allowed
  • lifespan: About50,000 hours or more (time to use the ambient temperature is 50% of thedisplay brightness at 25 °C)
  • color : White
  • Touchpanel method: Analogresistive film type
  • Numberof touch keys : –
  • Keysize : Minimum2 × 2 [dot] (per key)
  • Simultaneouspress points : Notpress simultaneous (one point only can touch)
  • lifespan: Amillion times or more (Operation 0.98 [N] or less)
  • Humansensor Detectiondistance : 1 [m]
  • Rangeof detection : Respectivelyup, down, left and right 70 degrees
  • Detectiondelay time : 0-4[sec]
  • memory
  • Flashmemory
  • capacity: Built-inflash memory 15M bytes
  • Life(write the number of times) : 100,000times
  • Use : Projectdata for storage, for OS storage
  • SRAM
  • capacity: –
  • Use : –
  • EEPROM
  • capacity: –
  • Use : –
  • Battery type : GT15-BAT-typelithium battery
  • Backedup : Clockdata, maintenance time notification for data, system log data
  • lifespan: About 5years (Ambient Temperature: 25 °C)
  • Built-ininterface bus : –
  • RS-422/485(combined) : RS-422/4851ch, transmission speed: 115200/57600/38400/19200/9600 / 4800bps, connectorshape: 14-pin (female), applications: connection equipment for communication
  • RS-422/232(combined) : –
  • RS-422: –
  • RS-232: RS-2321ch, transmission speed: 115200/57600/38400/19200/9600 / 4800bps, Connectorshape: D-sub 9-pin (male), applications: connection equipment forcommunication, for PC connection (project data upload / download, OSinstallation , FA transparent function)
  • Ethernet: Datatransfer method: 100BASE-TX, 10BASE-T 1ch, connector shape: RJ-45 (modularjack), use: connection equipment for communication, for the gateway function,for PC connection (project data upload / download, OS installation, MESinterface function)
  • RGB : –
  • Printer: –
  • USB(devices) : USB(Full Speed ??12Mbps) device 1ch, connector shape: TYPE Mini-B, use: for PCconnection (project data upload / download, OS installation, FA transparentfunction)
  • USB(host) : USB(Full Speed ??12Mbps) host 1ch, connector shape: TYPE-A, applications: datatransfer, for storage
  • CF card: CompactFlash slot 1ch, connector shape: TYPEI, applications: data transfer, datastorage, GOT for start-up
  • PC Cardslot : –
  • Optionalfunction board : MESinterface function for 1ch
  • Memoryboard : –
  • Expansionunit : Communicationunit / option unit mounting 2ch
  • switch Switch1 : –
  • Switch2 : –
  • Buzzeroutput : Singletimbre (sound length adjustable)
  • Protectivestructure : Frontsection: IP67F (JEM1030), board internal: IP2X (JEM1030)
  • Externaldimensions : 316 (W)× 242 (H) × 52 (D) [mm]
  • Panelcut-out dimensions : 302 (W)× 228 (H) [mm]
  • Mass(excluding the mounting bracket) : 2.7[kg]
  • Ambienttemperature
  • Display: 0 ~ 50 °C
  • Otherthan the display unit : 0 ~ 55 °C
  • Storagetemperature : -20 °C ~ 60 °C
  • Ambienttemperature : 10 ~90% RH, non-condensing
  • Storageambient humidity : 10 ~90% RH, non-condensing
  • Vibrationresistance: Compliance: Conformto JIS B 3502, IEC 61131-2
  • Vibrationresistance: Ifthere is intermittent vibration : half amplitude 3.5mm, the number of sweeps X, Y, Z eachdirection 10 times , acceleration 9.8M /S 2 , the numberof sweeps X, Y, Z each direction 10 times
  • Vibrationresistance: Ifthere is a continuous vibration : half amplitude 1.75Mm,  acceleration 4.9M / S 2
  • Impact: Conformto the B 3502 JIS, IEC 61131-2 (147M / S 2 , XYZ 3 directions threetimes each)
  • Useatmosphere : Oilysmoke, corrosive gas, there is no flammable gas, it is not terribly dust ofcontinuity, that direct sunlight does not hit (as well as during storage)
  • Operatingaltitude : 2000mor less
  • Installationlocation : Controlpanel
  • Overvoltagecategory : IIbelow
  • Degreeof contamination : 2 orless
  • Coolingsystem : Self-cooling
  • Theinput power supply voltage : AC100 ~240V (+10%, – 15%)
  • Inputfrequency : 50 /60Hz ± 5%
  • Inputmaximum apparent power : 110VA(at maximum load)
  • Powerconsumption Normaltime : 46W orless
  • Whenthe backlight turns off : 32W orless
  • Inrushcurrent : 28A orless (4ms) (at full load)
  • Allowablemomentary power failure time : Within20ms (or more AC100V)
  • Noiseimmunity : Noisevoltage 1500Vp-p, noise width 1µs, due to noise simulator of noise frequency25 ~ 60Hz
  • Withstandvoltage : Powersupply terminal bulk ? ground between AC1500V 1 minute
  • Insulationresistance : 10MO ormore at the power supply terminal bulk ? ground between DC500Vinsulation resistance tester
  • Applicablewire size : ? 2 0.75 [Mm 2 ]
  • Crimpterminal : M3crimp terminals RAV1.25-3 of the screw, V2-S3.3, V2-N3A, FV2-N3A
  • Torquewith fit tightening (terminal block terminal screws) : 0.5 ~0.8 [N · m]
  • ground: Class Dgrounding (100O or less), that the connection to the board when the groundcan not
  • MountingType : Standard
  • Shipping Weight : 3.7 Kg
