GV-H45GV-H45

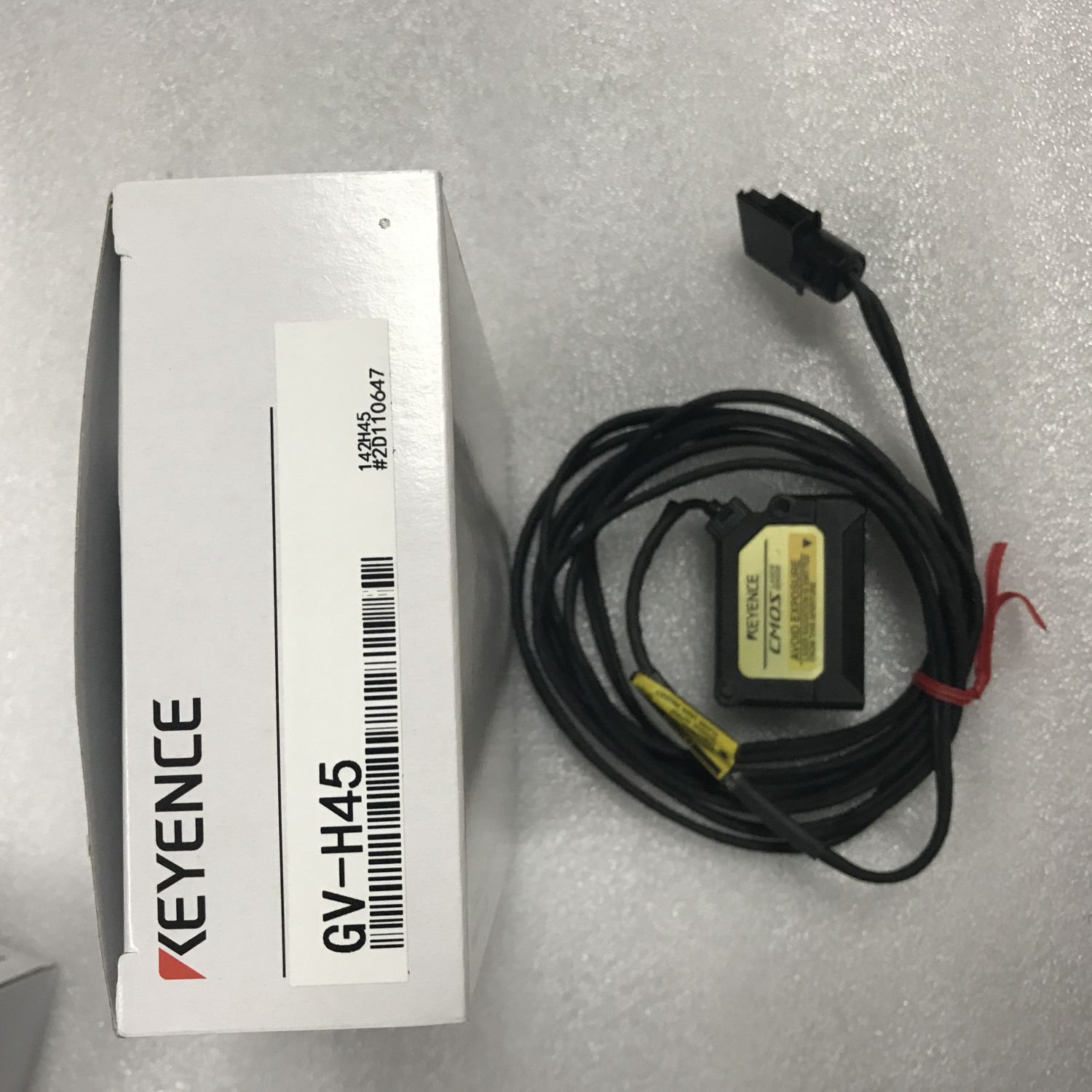

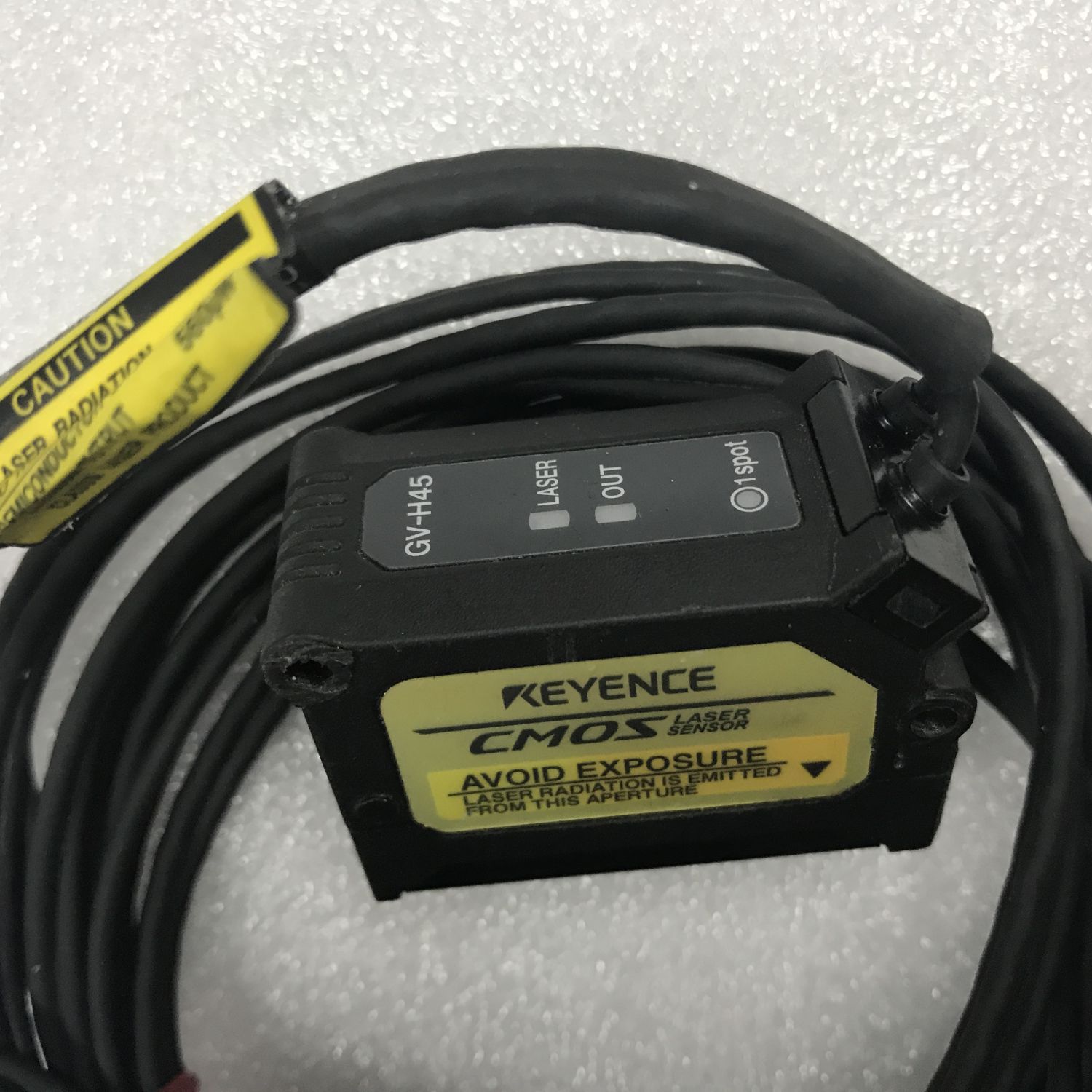

GV-H45 keyence Sensor

Category: .
Model GV-H45
Type Short-range
Light source Visible semiconductor laser, Wavelength: 655 nm
Laser class FDA (CDRH)
Part 1040.10
Class 2 (560 µW)
IEC 60825-1
JIS C6802
Detection distance
(Amplifier display )
20 to 45 mm
(250 to 0)*1)
Possible display range 259 to -34
Standard detection deviation 0.5 mm
Spot diameter Approx. ø0.1 mm
(Detection distance 45 mm)
Operation status indicators Control output: Red LED/Laser radiation emission indicator: Green LED/1 spot indicator: Green LED
Environmental resistance Enclosure rating IP67
Environmentalresistance Operating ambientluminance Incandescent lamp 10000ℓx
Sunlight 20000ℓx
Environmental resistance Ambient temperature -10 to +50 °C (No freezing)
Relative humidity 35 to 85 % RH (No condensation)
Vibration resistance 10 to 55 Hz, Double amplitude 1.5 mm, 2 hours in each of the X, Y, and Z axis
Material Housing material: PBT, Display: Polyarylate, Metal: SUS304, Lens cover: Glass, Cable: PVC
Weight Approx. 120 g*2
*1 General guideline for amplifier display values relative to detection distance (when distance display mode is set to normal).
*2 Including 2 m connector cable (3 m cable for GV-H1000)
