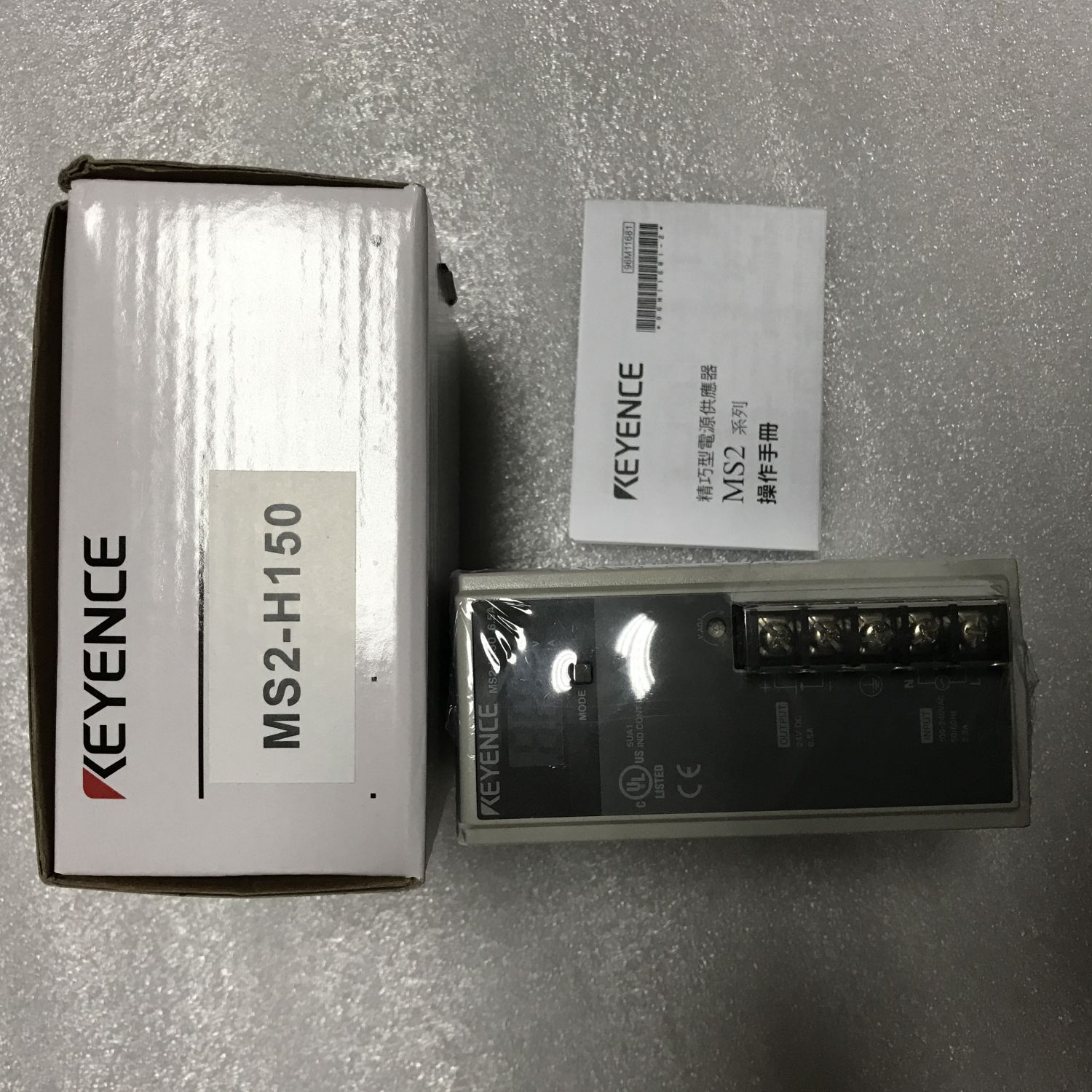

MS2-H150 Keyence Switching Power Supply

Category: .
Model MS2-H150
Input conditions Input voltage 85 to 264 VAC, 110 to 370 VDC*1
Frequency 47 to 63 Hz, DC*1
Inputconditions Input current (100/200 VAC) 2.2/1.1A or less
Efficiency (100/200 VAC) 82/85% typ. (with 100% load)
Leakage current (100/200 VAC) 0.4/0.75 mA max. (with 100% load)
Rush current (100/200 VAC) 25/50 A max. (with 100% load, at 25°C cold start)
Output characteristics Rated voltage 24V
Variable voltage range ±5% (with V.ADJ)
Rated current 6.5A
Ripple/noise voltage 180mV (p-p) or less
Input fluctuation 0.4% or less
Load fluctuation 1.5% or less
Temperature fluctuation 0.02 %/ ºC max.
Startup time 500 ms max. (at Surrounding Air Temperature of 0 to 55°C under I/O rated conditions)
Output holding time 20 ms min. (at Surrounding Air Temperature of 25°C under I/O rated conditions)
Protection Overcurrent protection Activates when the current reaches 125% or more of the rated output current. Constant current voltage limiting. Automatic reset 7.9 A min.
Overvoltage protection Activates when the voltage reaches 26.4 V or more. Voltage turn-off. Operation resumes when the input power isturned on again.*2
Display Display power 3-digit, 7-segment LED (Character height: 10 mm)
Power off memory time Approx. 10 years (at 20°C)
Display resolution 0.1A/0.4V /1%
Applicable standards Safety standards UL508, UL60950-1
CSA C22.2 No.14, CSA C22.2 No.60950-1
EN60950-1, EN50178
IEC60950-1
EMC standard FCC Part15B Class A, EN55011 Class A, EN61000-6-2
Limits for harmonic current emissions EN61000-3-2*3
Other Parallel operation Possible (OP-42207 is required.)*4
Series operation Possible (External diode is required.)*4
Cooling method Natural air-cooling
Environmental resistance Insulation resistance 100 MΩ min. (with 500 VDC megohmmeter)
(across input and output terminals) (across input terminals and PE terminal)
Ambient temperature -10 to +55 °C (No freezing) (See “Output conditions”.)
Storage temperature -20 to +70 °C (No freezing)
Relative humidity 25 to 85 % RH (No condensation)
Withstand voltage 3.0 kVAC, 50/60 Hz, 1 min (across input and output terminals)
2.0 kVAC, 50/60 Hz, 1min (across input terminals and PE terminal)
500 VAC, 50/60 Hz, 1min (across output terminals and PE terminal)
Vibration resistance 10 to 57 Hz, Double amplitude 0.3 mm, 57 to 500 Hz, 19.6 m/s2 (2 G), 5.5-minute cycle, 2 hours in each of the X, Y, and Z directions
Shock resistance Peak acceleration: 300 m/s2, 2 times in each of the X, Y, and Z directions
Weight Approx. 700 g
*1 The rated input voltage and rated frequency when applying for safety standards are 100 to 240 VAC, 50/60 Hz.
*2 To return, turn OFF the input power supply and after leaving it off for 1 minute or more, plug in the input power supply again. The E/F Series is a Zener diode clamp type. It will not restart after the protection circuit operation.
*3 For the MS2-H100, this is applicable only when the load ratio is 70% or lower.
*4 The applicable standards do not apply for parallel and serial operations.
