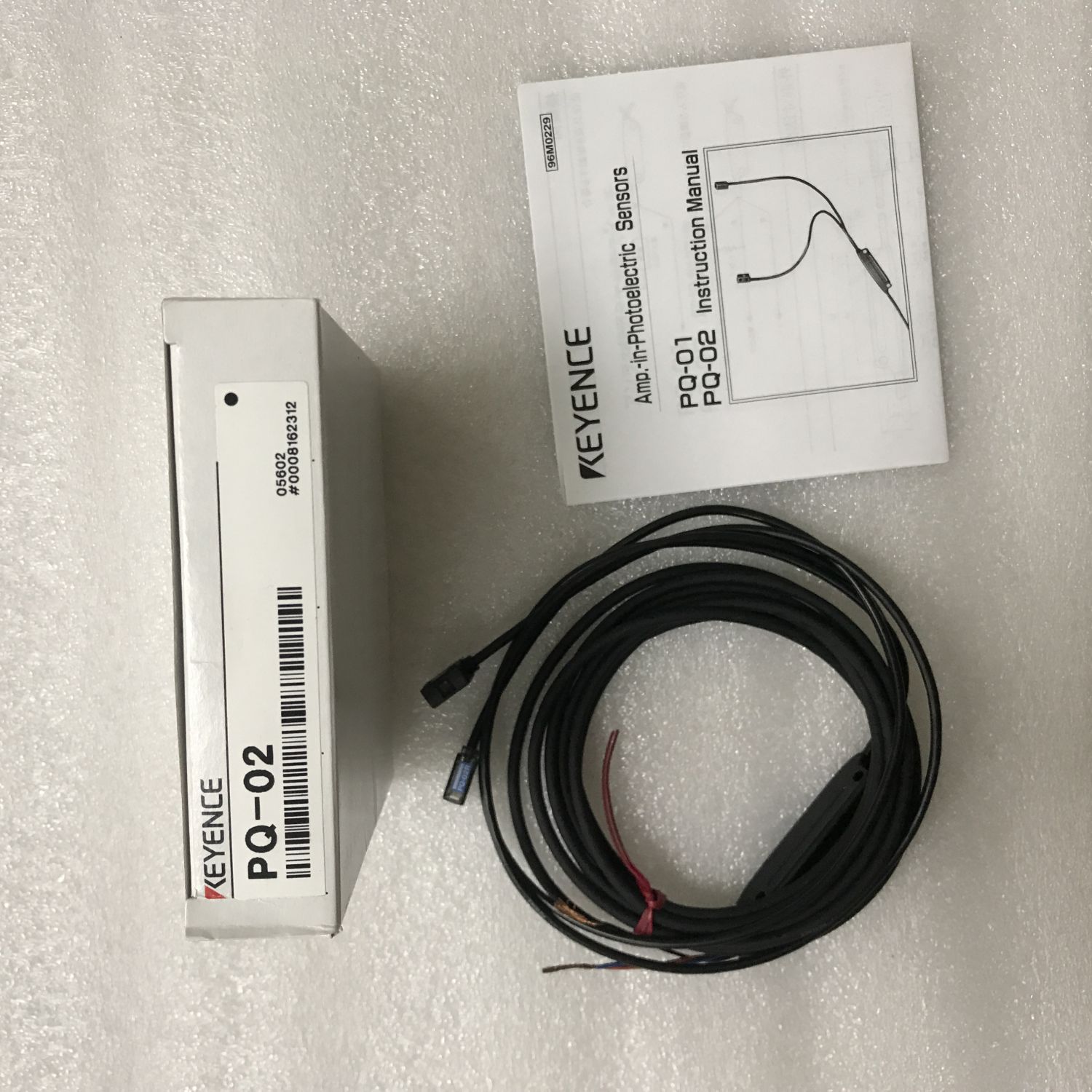

PQ-02 keyence Photoelectric Sensors

Category: .
Model PQ-02
Type Thrubeam Middle-detecting distance
Detecting distance 300 mm
Light source Infrared LED
Detectable object 2 mm dia min. opaque
materials
Minimum detectable object 0.9 mm dia. copper wire
Response time 1 ms max.
Indicator lamp Output: Red LED
Control output NPN: 100 mA max. (40 V max.), Residual voltage: 1 V max.
Protection circuit Reversed polarity, overcurrent protection, surge absorber
Rating Power voltage 12 to 24 VDC ±10 %, Ripple (P-P) 10 % or less
Current consumption 30 mA or less
Environmental resistance Enclosure rating IP64
Ambient light Incandescent lamp: 3,000 lux max., Sunlight: 10,000 lux max.
Ambient temperature -20 to +55 °C (No freezing)
Relative humidity 35 to 85 % RH (No condensation)
Vibration resistance 10 to 55 Hz, Double amplitude 1.5 mm, 2 hours in each of the X, Y, and Z directions
Shock resistance 500 m/s2, 3 times in each of the X, Y, and Z directions
Material Amplifi er: Polysulfone, Sensor head: Polyarylate
