PS2-61PS2-61

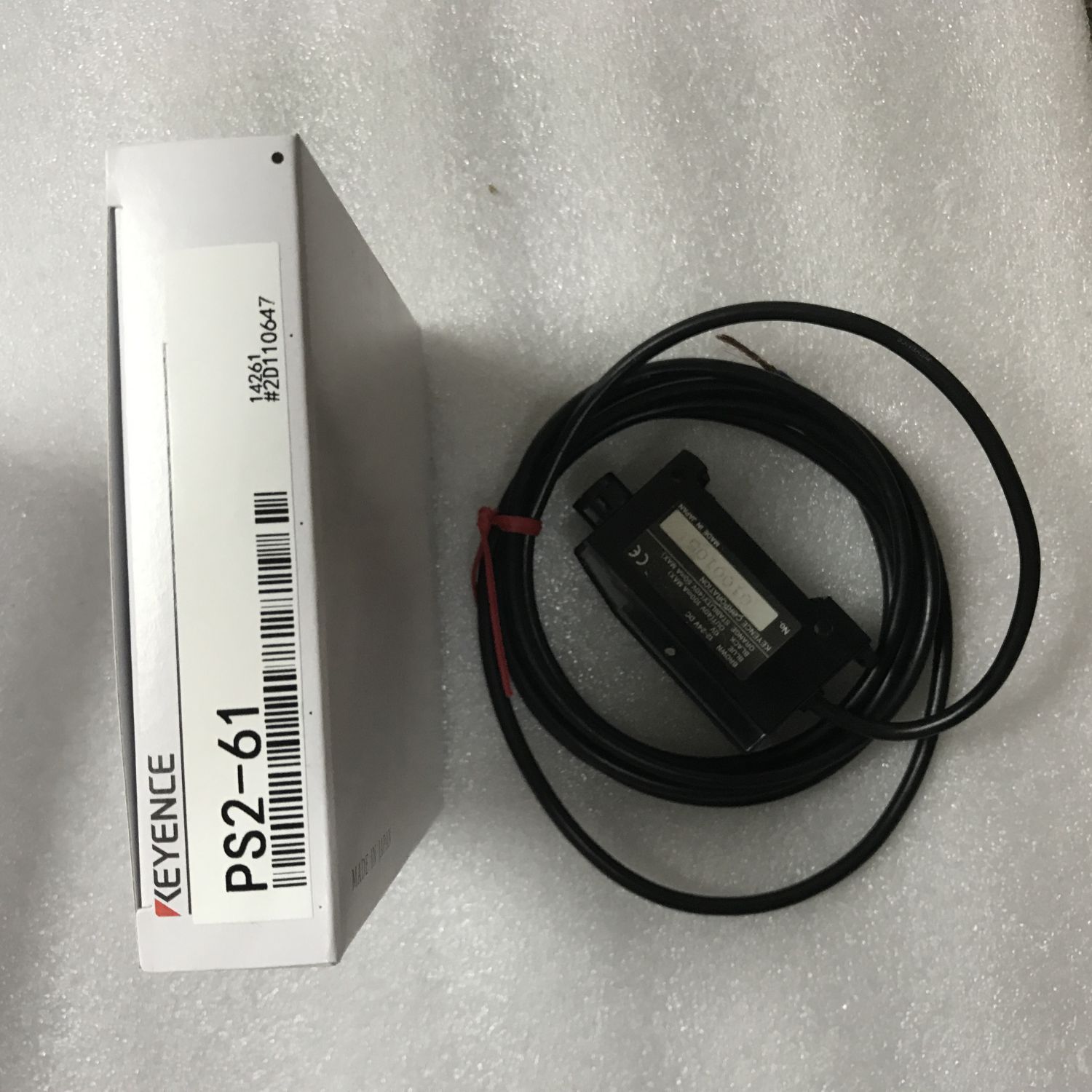

PS2-61 Keyence Amplifier Separate Type Photoelectric Sensor

Category: .
Model PS2-61
Type DC type
Output NPN
Sensitivity adjustment 3-turn trimmer
Response time 0.5 ms (1 ms at an alternate
frequency)
Operation mode LIGHT-ON/DARK-ON (switch-selectable)
Output Control output 100 mA (40 V) max.
Residual voltage: 1 V max.
Stability output 50 mA (40 V) max.
Residual voltage: 1 V max.
Protection circuit Reversed polarity, short-circuit protection, surge absorber
Indicator lamp Output: Red LED, Stable operation: Green LED
Timer ON-delay/OFF-delay/
One-shot/
Timer-OFF selectable
(40 ms to 5 s)
Buzzer Buzzer ON at control output-ON/
Buzzer ON at alarm output-ON/
Buzzer OFF selectable
Rating Power voltage 12 to 24 VDC ±10 %, Ripple (P-P) 10 % or less
Current/power consumption 45 mA max.
Environmental resistance Ambient temperature -10 to +50 °C (No freezing)
Relative humidity 35 to 85 % RH (No condensation)
Weight Approx. 65 g (including 2 m cable)
