S8VS-24024S8VS-24024

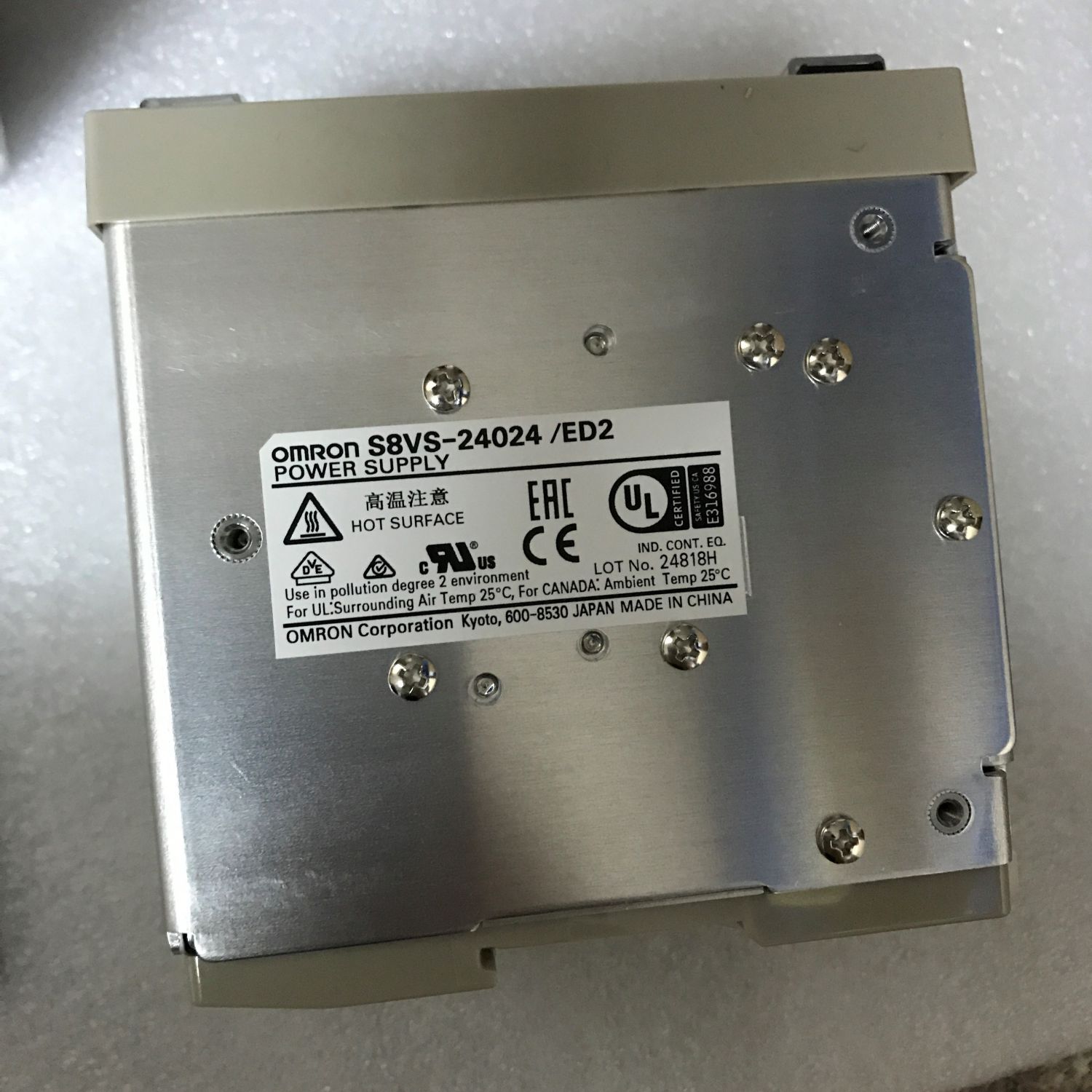

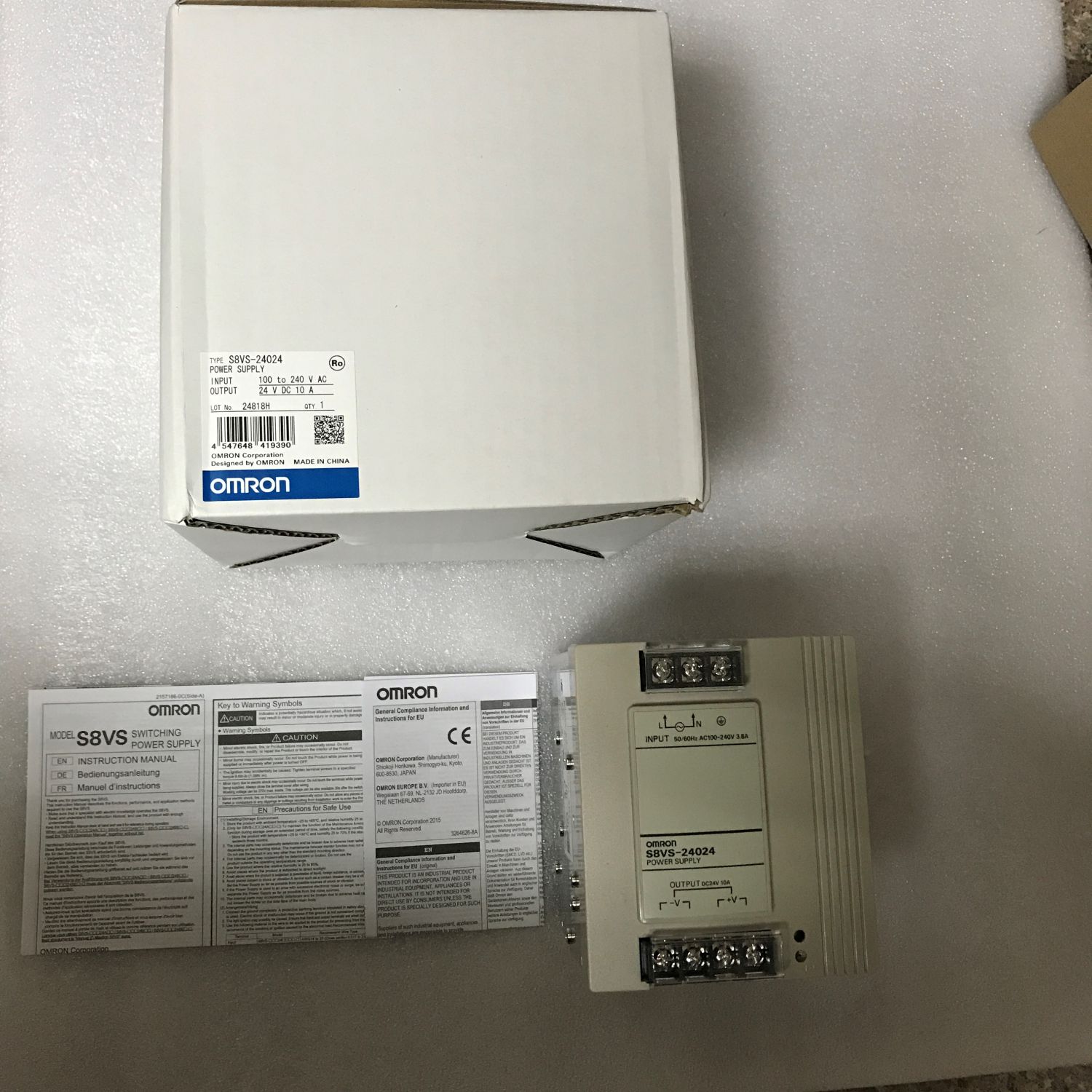

S8VS-24024 Omron power supply

Category: .
Power rating 240 W
Output voltage 24 V
Efficiency 85% typ. (at 100 VAC input)
88% typ. (at 200 VAC input)
Input Rated input voltage 100 to 240 VAC
Allowable input voltage variable range 85 to 264 VAC
80 to 370 VDC
Frequency 50/60Hz (47 to 63 Hz)
Rated input curren 3.8 A max., 2.9 A typ. (at 100 VAC input)
2.0 A max., 1.5 A typ. (at 200 VAC input)
Power factor 0.9 min.
Leakage current 0.5 mA max. (at 100 VAC input)
1.0 mA max. (at 200 VAC input)
Inrush current 17.5 A max., 14 A typ. (at 100 VAC input)
35 A max., 28 A typ. (at 200 VAC input)
Output Rated output current 10 A
Output voltage variable range -10 to +15% With V.ADJ
Ripple 140 mV max. at rated input and output
Static input variation influence 0.5% max. at 85 to 264 VAC input, 100% load
Static load variation influence 1.5% max. (rated input, 0 to 100% load)
Ambient temperature variation influence 0.05%/℃ max.
Start up time 540 ms typ. (at 100 VAC input)
230 ms typ. (at 200 VAC input)
Hold time 64 ms typ. (at 100 VAC input)
64 ms typ. (at 200 VAC input)
Additional functions Overload protection Yes, Automatic reset
Overvoltage protection Yes, Shut off the input voltage and turn on the input again
Series operation Yes (Up to 2 Power Supplies with external diode)
Parallel operation No (However, backup operation is possible, external diodes required.)
Output indicator Yes (color: green)
Output voltage indication No
Output current indication No
Peak-hold current indication No
Maintenance forecast monitor output: No
Total run time monitor output: No
indication: No
Undervoltage alarm output: No
indication: No
Insulation Dielectric strength Between all input terminals and PE terminals: 2 kVAC for 1 min, Detection current: 20 mA
Between all input terminals and all output terminals/alarm outputs: 3 kVAC for 1 min, Detection current: 20 mA
Between all output terminals/alarm outputs and all PE terminals: 1 kVAC for 1 min, Detection current: 30 mA
Between all output terminals and all alarm outputs: 500 VAC for 1 min, Detection current: 20 mA
Insulation resistance Between all output terminals/alarm outputs and all input terminals/PE terminals: 100 MΩ min., at 500 VDC
Environment Vibration resistance 10 to 55 Hz, 0.375 mm single amplitude in each 3 directions for 2 hours
Shock resistance 150 m/s**2, in each 6 directions 3 times
Ambient temperature (Operating) -10 to 60℃
Ambient temperature (Storage) -25 to 65℃
Ambient humidity (Operating) 25 to 85%
Ambient humidity (Storage) 25 to 90%
Reliability Life expectancy 10 years (at rated input, a load rate of 50% load, under the temperature of 40 ℃, standard mounting)
Construction Construction Covered type
Connection Terminal blocks
Terminal type Screw terminal
Mounting DIN track mounting
Attachment Terminal block cover
Weight (Main) Approx. 1150 g
