SH-305

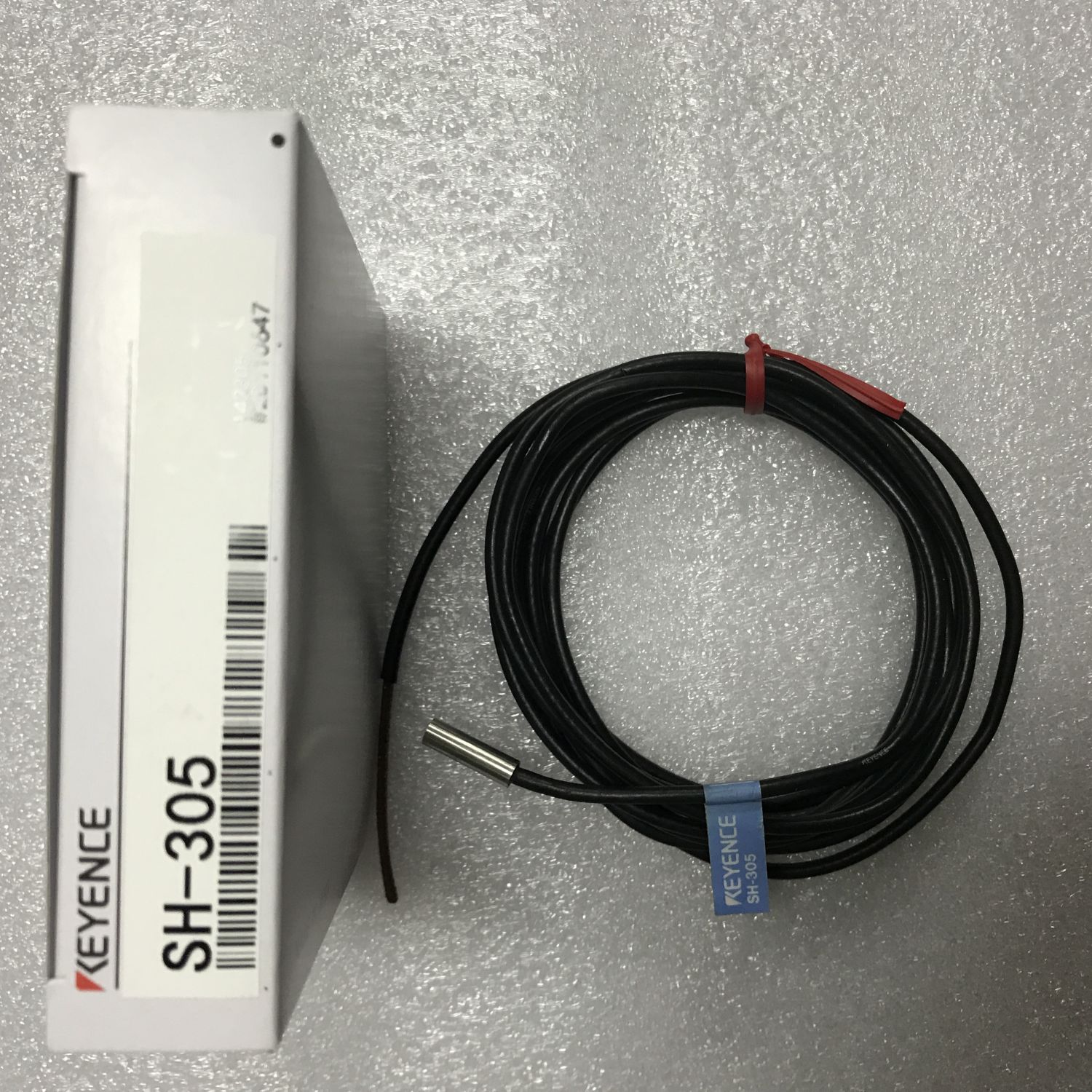

SH-305 keyence High-accuracy Positioning Senso

Category: .
Model SH-305
Type Standard Shielded Cylindrical
Shape ø5.4×18 Cylindrical
Detectable object Ferrous metal (see Characteristics for nonferrous metals)
Standard target (iron, t=1 mm 0.04″) 5 x 5 mm 0.20″*1
Stable detecting range 0 to 1 mm 0.04″
Maximum detecting distance 3 mm 0.12″
Repeatability 0.001 mm 0.00004″*1
Hysteresis 0.01 mm 0.0004″*1
Temperature characteristics 0.08%/°C*1
Environmental resistance Enclosure rating IP67
Ambient temperature -10 to +60 °C 14 to 140 °F (No freezing)
Relative humidity 35 to 85 % RH (No condensation)
Vibration resistance 10 to 55 Hz, Double amplitude 1.5 mm 0.06″, 2 hours in each of the X, Y, and Z directions
Weight Approx. 45 g
*1 Above values obtained when the detecting distance is set at 50% of the maximum stable detecting distance.
