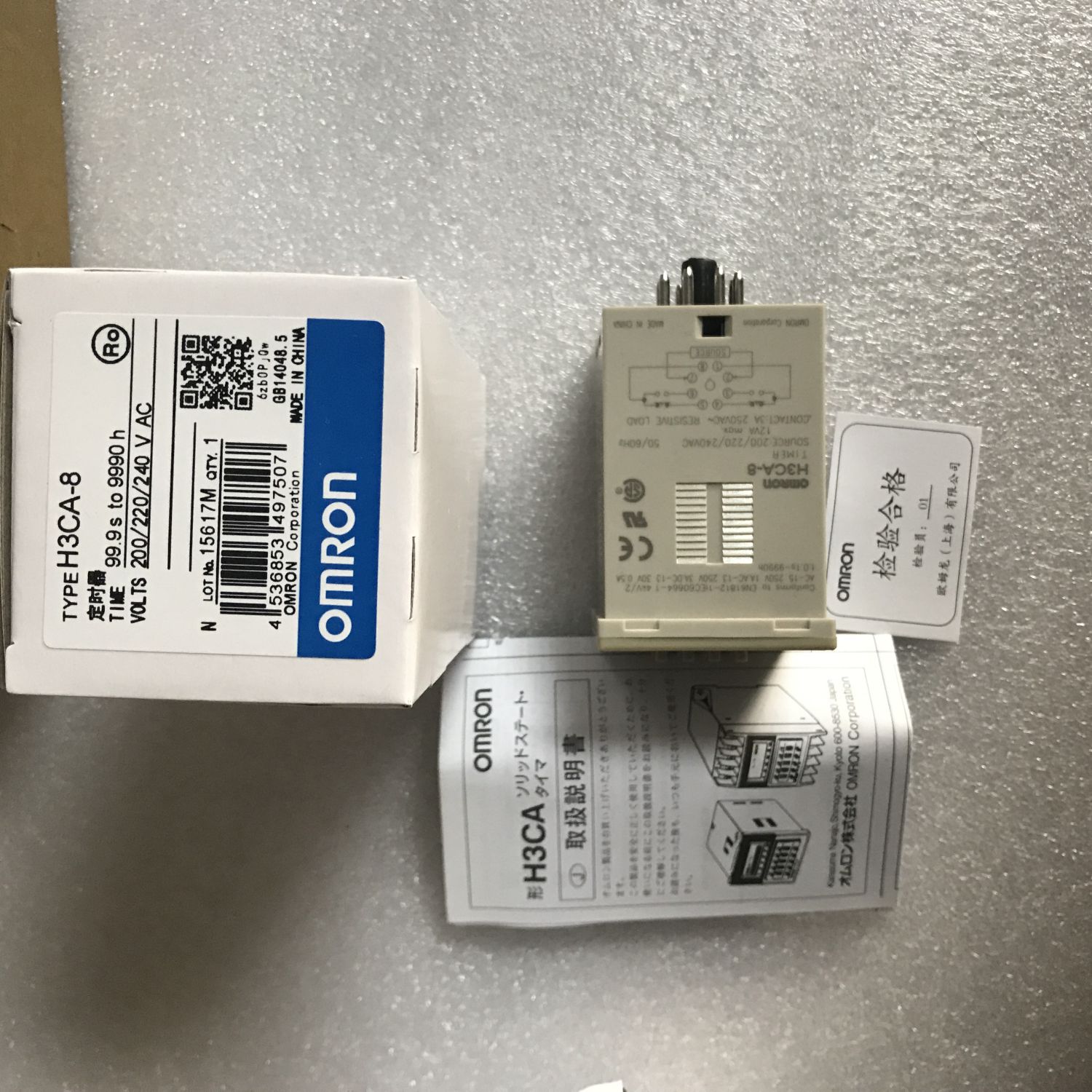

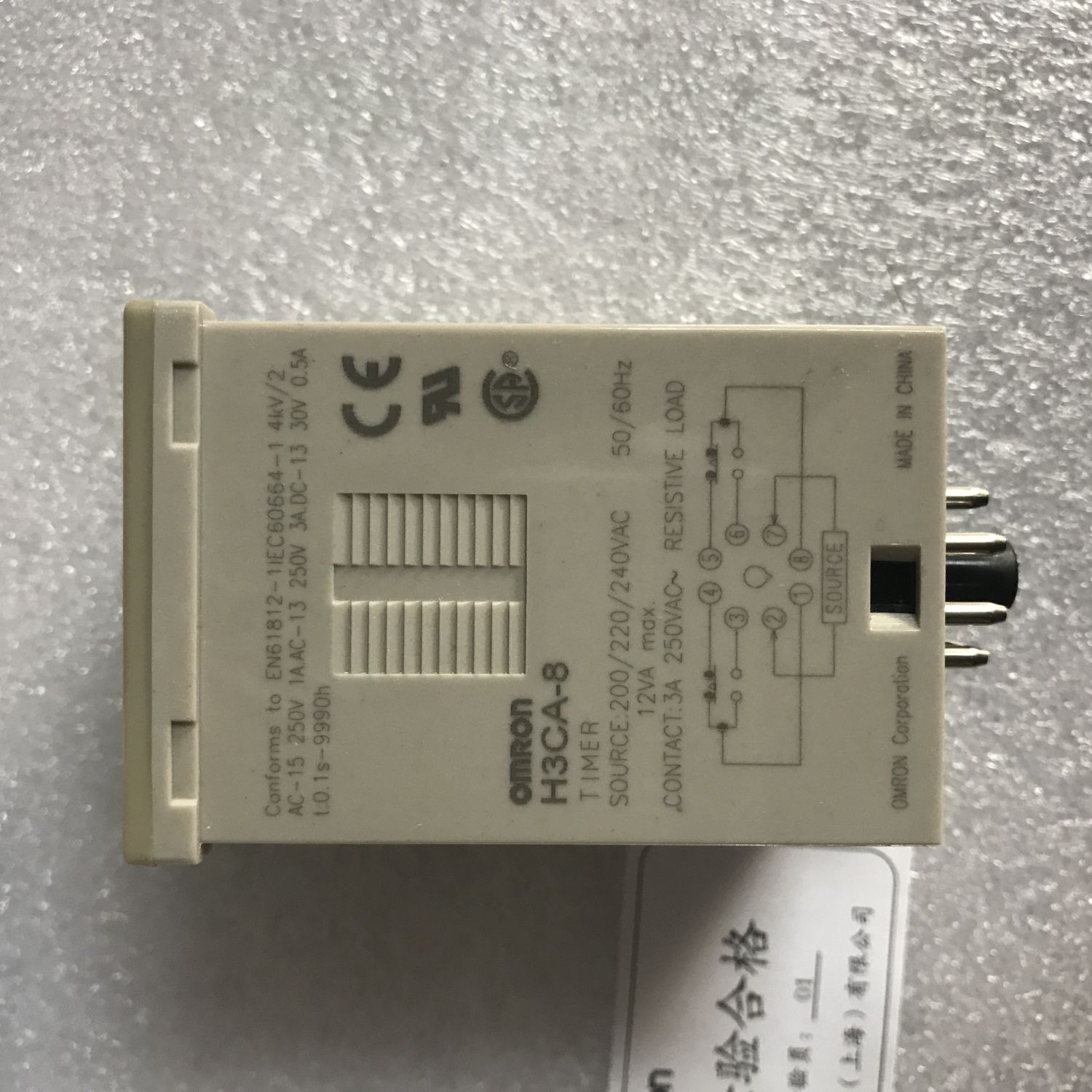

H3CA-8 Omron Timer

Category: .
Rated supply voltage 100/110/120 VAC (50/60 Hz)
Operating voltage range 85 to 110% of rated supply voltage
Power consumption Approx. 10 VA/Approx. 1 W
Time ranges(Number of ranges) 7
Time ranges 0.1 to 99.9 s
1 to 999 s
0.1 to 99.9 min
1 to 999 min
0.1 to 99.9 h
1 to 999 h
10 to 9990 h
Input method No-voltage input (open and short-circuit)
Output modes A: Power ON delay
Control output (Contact output) Time-limit contact: DPDT
Resistive load: 3 A at 250 VAC
Minimum applicable load: 10 mA at 5 VDC (failure level: P Reference value)
Reset system Self-reset
Power reset Reset time: 0.1 s max.
Display method LCD 3 digit
Ambient temperature (Operating) -10 to 55℃ (with no icing)
Ambient humidity (Operating) 35 to 85%
Accuracy of operating time ±0.3% ±0.05 s (The values are based on the set value.)
Setting error ±0.5% ±0.05 s (The values are based on the set value.)
Influence of voltage ±0.3% ±0.05 s (The values are based on the set value.)
Influence of temperature ±0.3% ±0.05 s (The values are based on the set value.)
Insulation resistance 100 MΩ min. (at 500 VDC)
Dielectric strength Between current carrying metal parts and non-current carrying metal parts: 2000 VAC 50/60 Hz 1 min
Between control output terminals and operating circuit: 2000 VAC 50/60 Hz 1 min
Between non-continuous contacts: 1000 VAC 50/60 Hz 1 min
Impulse withstand voltage Between power terminals: 3 kV
Between current carrying terminals and exposed non-current carrying metal parts: 4.5 kV
Vibration resistance Destruction: 10 to 55 Hz, 0.75 mm single amplitude each in 3 directions for 1 hour
Malfunction: 10 to 55 Hz, 0.5 mm single amplitude each in 3 directions for 10 min
Shock resistance Destruction: 1,000 m/s**2, 3 times each in 6 directions
Malfunction: 100 m/s**2, 3 times each in 6 directions
Life expectancy Electrical: 100,000 operations min. (3 A at 250 VAC resistive load at 1800 operations/h)
Mechanical: 10 million operations min. (under no load at 1,800 operations/h)
Degree of protection IP40
Mounting method Flush mounting / Surface mounting
External connection method 8-pin round socket
Applicable socket P2CF-08, P2CF-08-E, P3G-08, PL08
Accessory (sold separately) Soft Cover: Y92A-48D
Hard Cover: Y92A-48B
Flush mounting adapter: Y92F-30/Y92F-70/Y92F-71
